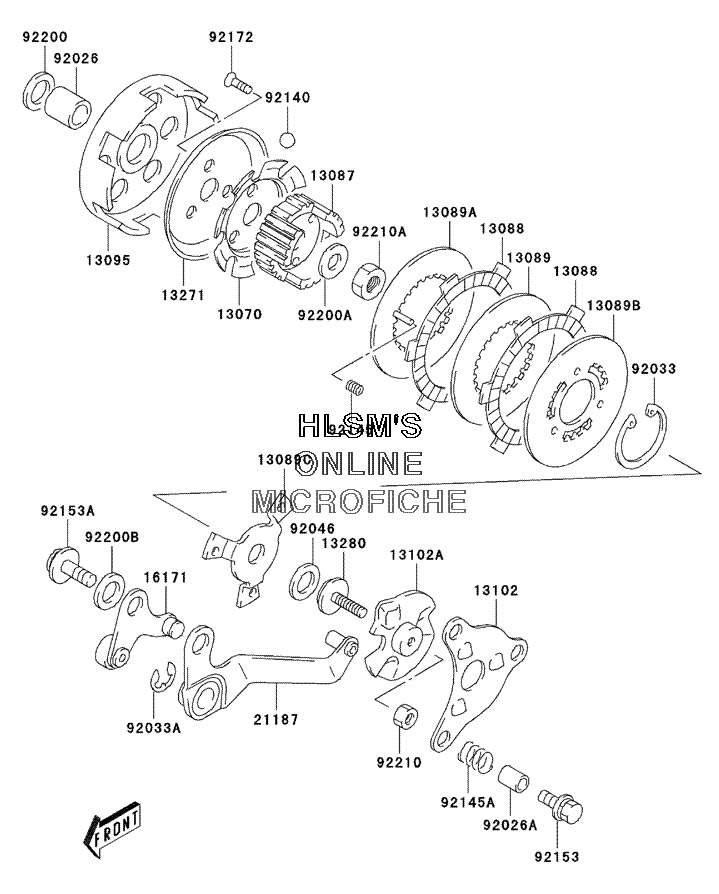

CLUTCH для Kawasaki KDX 50 - 2005 года выпуска

  • №
    Артикул
    Название
  • 13070
    13070-S014 GUIDE, CLUTCH BALL
    GUIDE, CLUTCH BALL
  • 13087
    13087-S004 HUB, CLUTCH
    HUB, CLUTCH
  • 13088
    13088-S005 PLATE, FRICTION
    PLATE, FRICTION
  • 13089
    13089-S004 PLATE, CLUTCH
    PLATE, CLUTCH
  • 13089A
    13089-S005 PLATE, CLUTCH, CLUTCH INNER
    PLATE, CLUTCH, CLUTCH INNER
  • 13089B
    13089-S006 PLATE, CLUTCH, OUTER
    PLATE, CLUTCH, OUTER
  • 13089C
    13089-S007 PLATE, CLUTCH, CLUTCH PRESSURE
    PLATE, CLUTCH, CLUTCH PRESSURE
  • 13095
    13095-S007 HOUSING, COMP, CLUTCH
    HOUSING, COMP, CLUTCH
  • 13102
    13102-S004 RELEASE, COMP, CLUTCH
    RELEASE, COMP, CLUTCH
  • 13102A
    13102-S005 RELEASE, COMP, CLUTCH
    RELEASE, COMP, CLUTCH
  • 13271
    13271-S055 PLATE, CLUTCH BALL
    PLATE, CLUTCH BALL
  • 13280
    13280-S029 HOLDER, CLUTCH PUSH
    HOLDER, CLUTCH PUSH
  • 16171
    16171-S001 LINK, RELEASE ARM
    LINK, RELEASE ARM
  • 21187
    21187-S006 ARM, ASSY, CLUTCH RELEASE PLATE
    ARM, ASSY, CLUTCH RELEASE PLATE
  • 92026
    92026-S056 SPACER, DRIVEN GEAR
    SPACER, DRIVEN GEAR
  • 92026A
    92026-S112 SPACER, RELEASE PLATE SPRING
    SPACER, RELEASE PLATE SPRING
  • 92033
    92033-S043 RING, SNAP, CLUTCH SLEEVE HUB
    RING, SNAP, CLUTCH SLEEVE HUB
  • 92033A
    92033-S044 RING, SNAP, RELEASE PLATE ARM
    RING, SNAP, RELEASE PLATE ARM
  • 92046
    92046-S022 BEARING, NEEDLE
    BEARING, NEEDLE
  • 92140
    92140-S003 BALL, OIL CHECK VALVE
    BALL, OIL CHECK VALVE
  • 92145
    92145-S114 SPRING
    SPRING
  • 92145A
    92145-S115 SPRING, CLUTCH RELEASE PLATE
    SPRING, CLUTCH RELEASE PLATE
  • 92153
    92153-S013 BOLT
    BOLT
  • 92153A
    92153-S316 BOLT, 8X17
    BOLT, 8X17
  • 92172
    92172-S012 SCREW
    SCREW
  • 92200
    92200-S085 WASHER, DRIVEN GEAR
    WASHER, DRIVEN GEAR
  • 92200A
    92200-S087 WASHER, CLUTCH
    WASHER, CLUTCH
  • 92200B
    92200-S165 WASHER, 8X16X1.0
    WASHER, 8X16X1.0
  • 92210
    92210-S001 NUT
    NUT
  • 92210A
    92210-S116 NUT
    NUT
