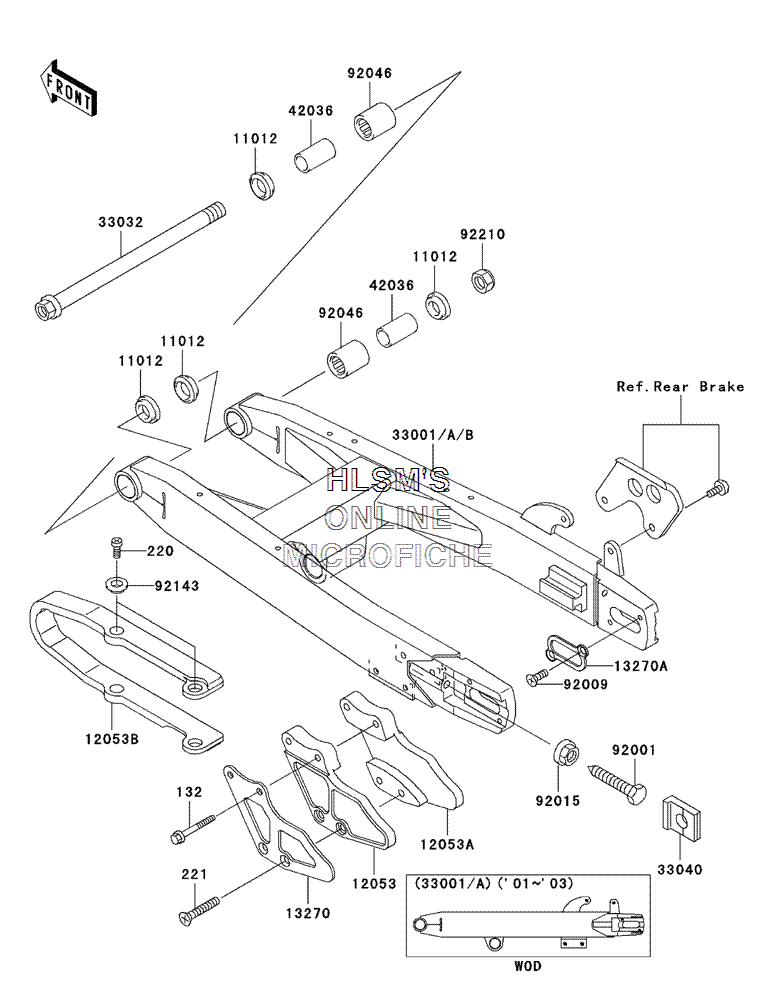

SUSPENSION - SWINGARM для Kawasaki KX 100 - 2004 года выпуска`
-
№АртикулНазвание
-
132132G0650 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0508 SCREW, PAN, CROS, 5X8SCREW, PAN, CROS, 5X8
-
221221B0645 SCREW, CSK, CROS, 6X45SCREW, CSK, CROS, 6X45
-
1101211012-1263 CAPCAP
-
1205312053-1203 GUIDE, CHAIN, REAR (LEFT)GUIDE, CHAIN, REAR (LEFT)
-
12053A12053-1204 GUIDE, CHAIN, REAR (RIGHT)GUIDE, CHAIN, REAR (RIGHT)
-
12053B12053-1414 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
1327013270-1829 PLATE, GUIDE CHAINPLATE, GUIDE CHAIN
-
13270A13270-1899 PLATEPLATE
-
3300133001-1543-CE ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
3303233032-1161 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1173 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1067 SLEEVE, SWING ARM, L=34SLEEVE, SWING ARM, L=34
-
9200192001-1179 BOLT, 8X46BOLT, 8X46
-
9200992009-1828 SCREW, 5X10SCREW, 5X10
-
9201592015-1014 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9204692046-1046 BEARING, NEEDLEBEARING, NEEDLE
-
9214392143-1676 COLLARCOLLAR
-
9221092210-1249 NUT, LOCK, 12MMNUT, LOCK, 12MM
