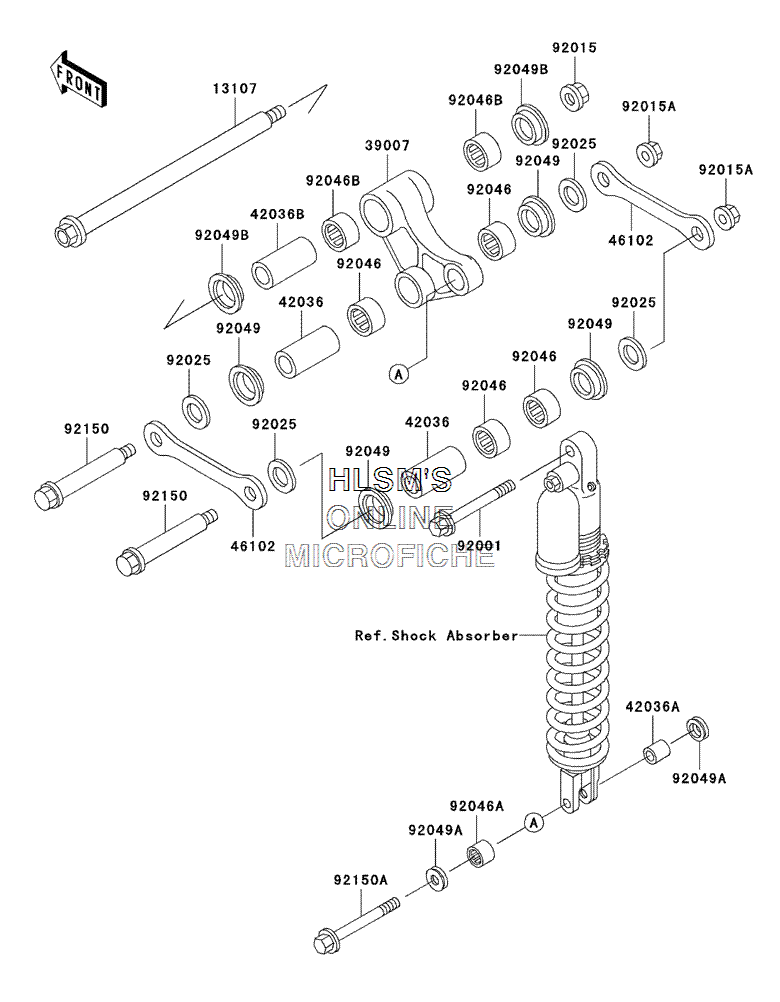

SUSPENSION - REAR для Kawasaki KLX 300R - 2004 года выпуска`
-
№АртикулНазвание
-
1310713107-1330 SHAFT, ARM, 14MMSHAFT, ARM, 14MM
-
3900739007-1234 ARM, SUSPENSION, UNI TRAKARM, SUSPENSION, UNI TRAK
-
4203642036-1245 SLEEVE, 15X22X57SLEEVE, 15X22X57
-
42036A42036-1248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
42036B42036-1318 SLEEVE, 17X25X57SLEEVE, 17X25X57
-
4610246102-1350 ROD, SUSPENSIONROD, SUSPENSION
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
92015A92015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202592025-1135 SHIM, 15.3X27.5X0.6SHIM, 15.3X27.5X0.6
-
9204692046-1162 BEARING, NEEDLE, F, 2220BEARING, NEEDLE, F, 2220
-
92046A92046-1192 BEARING, NEEDLE, 16BM2212BEARING, NEEDLE, 16BM2212
-
92046B92046-1228 BEARING, NEEDLE, BM2520BEARING, NEEDLE, BM2520
-
9204992049-1254 SEAL, OIL, MHA22 28 5.7FSEAL, OIL, MHA22 28 5.7F
-
92049A92049-1330 SEAL, OILSEAL, OIL
-
92049B92049-1426 SEAL, OIL, MF025N1SEAL, OIL, MF025N1
-
9215092150-1337 BOLT, ROD, 12X93BOLT, ROD, 12X93
-
92150A92150-1711 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
