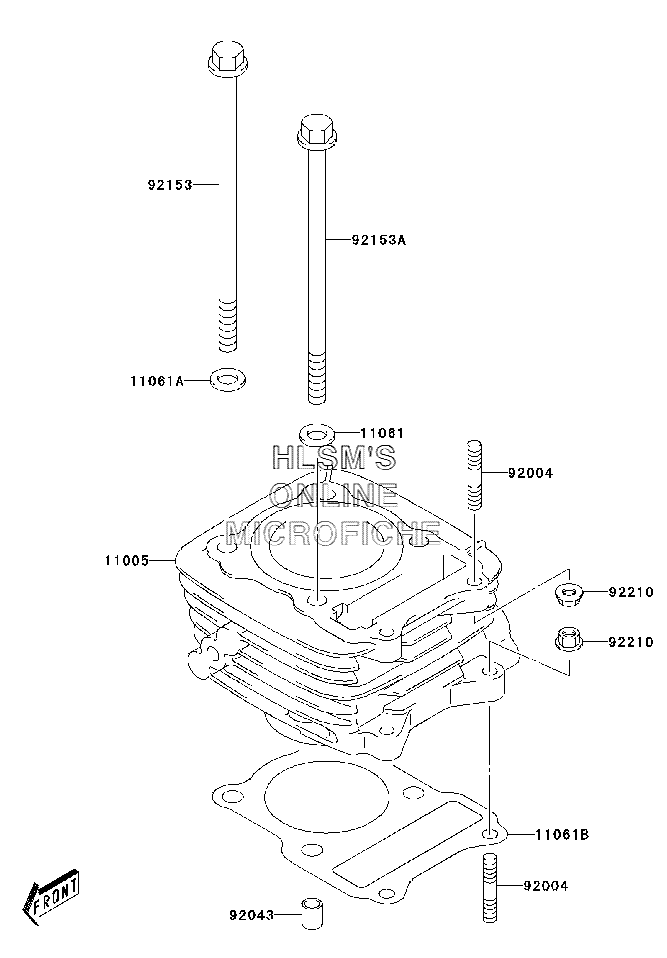

CYLINDER для Kawasaki KLX 125L - 2004 года выпуска
-
№АртикулНазвание
-
1100511005-S004 CYLINDER, ENGINECYLINDER, ENGINE
-
1106111061-S032 GASKET, 8.5X19X2.3GASKET, 8.5X19X2.3
-
11061A11061-S034 GASKET, 8.5X17X2.3GASKET, 8.5X17X2.3
-
11061B11061-S035 GASKET, CYLINDERGASKET, CYLINDER
-
9200492004-S001 STUDSTUD
-
9204392043-S019 PINPIN
-
9215392153-S135 BOLT, L=165BOLT, L=165
-
92153A92153-S164 BOLT, L=155BOLT, L=155
-
9221092210-S004 NUTNUT
