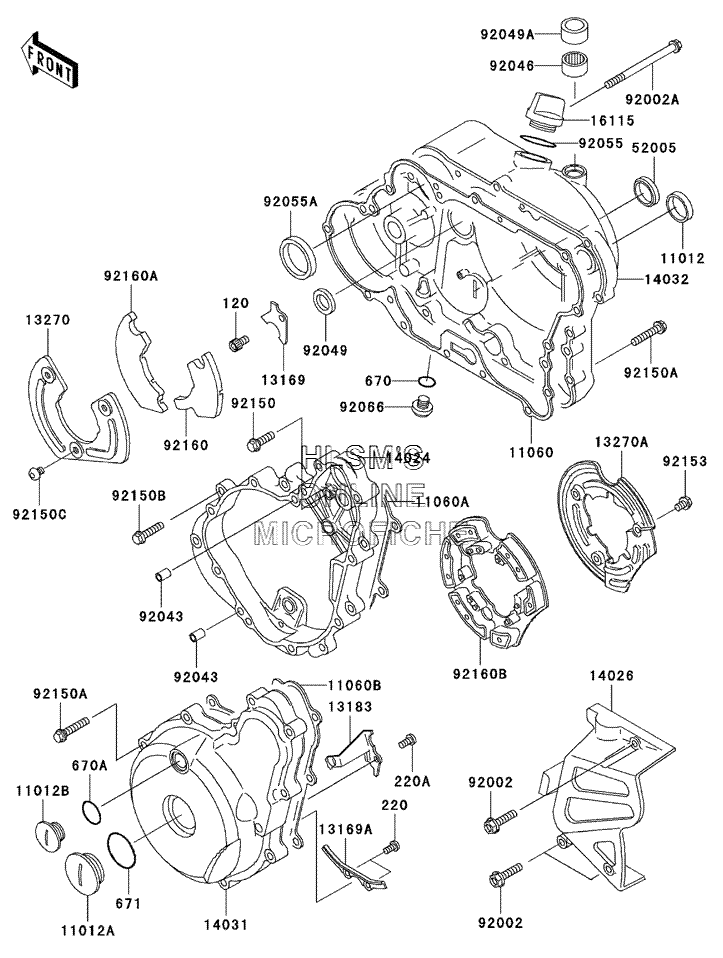

ENGINE COVER для Kawasaki KLR650 - 2004 года выпуска`
-
№АртикулНазвание
-
120120P0610 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
220220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220B0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
670670B2011 O-RING, 11MMO-RING, 11MM
-
670A670B2018 O-RING, 18MMO-RING, 18MM
-
671671B2540 O-RING, 40MMO-RING, 40MM
-
1101211012-1567 CAPCAP
-
11012A11012-1693 CAPCAP
-
11012B11012-1694 CAP, TOP MARKCAP, TOP MARK
-
1106011060-1111 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11060A11060-1692 GASKET, GENERATOR CASE COVERGASKET, GENERATOR CASE COVER
-
11060B11060-1693 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1316913169-1735 PLATE, OIL SEALPLATE, OIL SEAL
-
13169A13169-1882 PLATE, PULSING COIL LEADPLATE, PULSING COIL LEAD
-
1318313183-1144 PLATE, GENERATORPLATE, GENERATOR
-
1327013270-1438 PLATEPLATE
-
13270A13270-1667 PLATEPLATE
-
1402414024-1773 COVER, GENERATOR CASECOVER, GENERATOR CASE
-
1402614026-1225 COVER, CHAINCOVER, CHAIN
-
1403114031-1305 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1488 COVER, CLUTCHCOVER, CLUTCH
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200292002-1086 BOLT, 6X25BOLT, 6X25
-
92002A92002-1568 BOLT, 6X80BOLT, 6X80
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1158 SEAL, OIL, SCY 15X30X7SEAL, OIL, SCY 15X30X7
-
92049A92049-1271 SEAL, OIL, TB12205.5SEAL, OIL, TB12205.5
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1221 O-RING, 62.6X66X3.1O-RING, 62.6X66X3.1
-
9206692066-1156 PLUG, DRAINPLUG, DRAIN
-
9215092150-1010 BOLT, 6X20BOLT, 6X20
-
92150A92150-1021 BOLT, 6X30BOLT, 6X30
-
92150B92150-1779 BOLT, 6X25BOLT, 6X25
-
92150C92150-1902 BOLT, 6X7BOLT, 6X7
-
9215392153-0528 BOLT, 6X8BOLT, 6X8
-
9216092160-1608 DAMPERDAMPER
-
92160A92160-1609 DAMPERDAMPER
-
92160B92160-1763 DAMPERDAMPER
