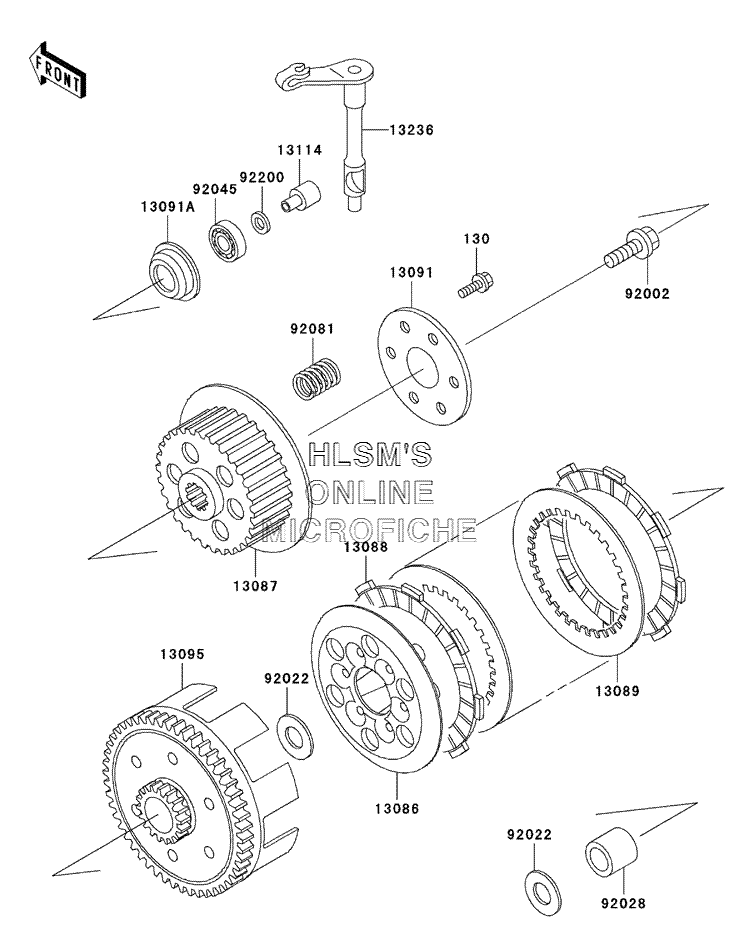

CLUTCH для Kawasaki KX 65 - 2003 года выпуска`
-
№АртикулНазвание
-
130130P0520 BOLT, FLANGEDBOLT, FLANGED
-
1308613086-1002 WHEEL, CLUTCHWHEEL, CLUTCH
-
1308713087-1051 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1010 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1087 PLATE, CLUTCHPLATE, CLUTCH
-
1309113091-1115 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
13091A13091-1133 HOLDER, CLUTCH PUSHERHOLDER, CLUTCH PUSHER
-
1309513095-1042 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1311413114-1055 PUSHER, CLUTCHPUSHER, CLUTCH
-
1323613236-1338 LEVER, COMP, RELEASELEVER, COMP, RELEASE
-
9200292002-1697 BOLT, 10X30BOLT, 10X30
-
9202292022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
9202892028-1967 BUSHINGBUSHING
-
9204592045-1236 BEARING, BALL, 627BEARING, BALL, 627
-
9208192081-1175 SPRING, CLUTCHSPRING, CLUTCH
-
9220092200-1197 WASHER, 7X12.5X0.8WASHER, 7X12.5X0.8
