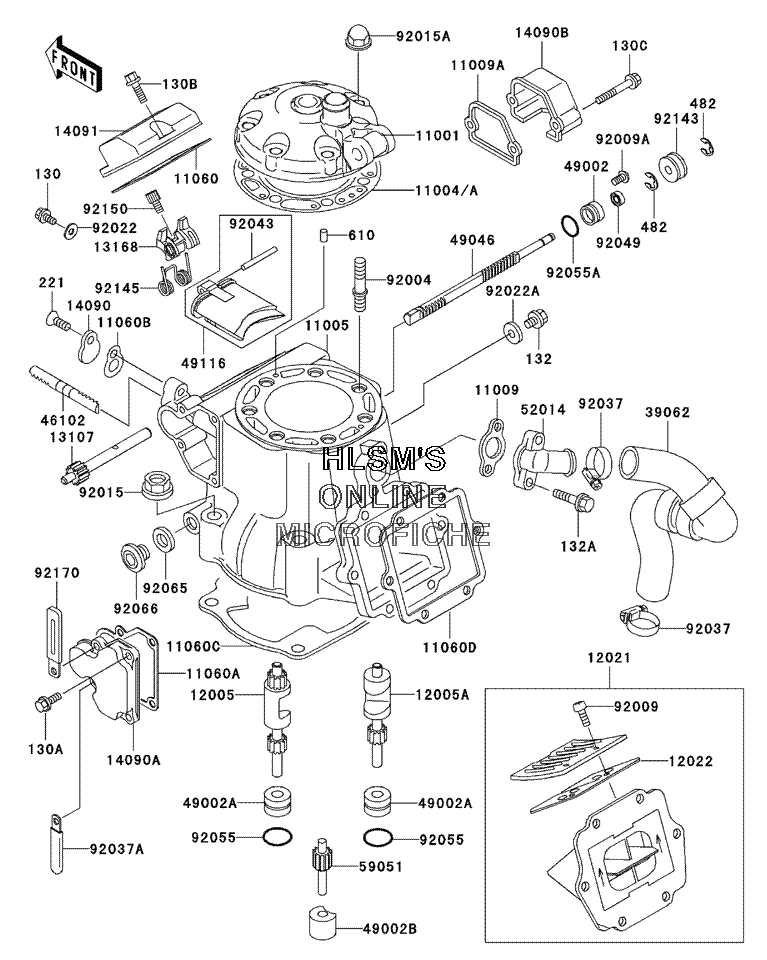

CYLINDER HEAD W/CYLINDER для Kawasaki KX 250 - 2003 года выпуска`
-
№АртикулНазвание
-
1100111001-1574 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-1240 GASKET, HEAD, T=0.26GASKET, HEAD, T=0.26
-
11004A11004-1241 GASKET, HEAD, T=0.46 (OPT)GASKET, HEAD, T=0.46 (OPT)
-
1100511005-1979 CYLINDER, ENGINECYLINDER, ENGINE
-
1100911009-1935 GASKET, ELBOWGASKET, ELBOW
-
11009A11009-1960 GASKET, GOVERNOR COVERGASKET, GOVERNOR COVER
-
1106011060-1289 GASKET, VALVE COVERGASKET, VALVE COVER
-
11060A11060-1290 GASKET, RESONATORGASKET, RESONATOR
-
11060B11060-1346 GASKET, GOVERNOR RODGASKET, GOVERNOR ROD
-
11060C11060-1493 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
11060D11060-1993 GASKET, REED VALVEGASKET, REED VALVE
-
1200512005-1284 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
12005A12005-1285 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
1202112021-0004 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1202212022-1085 VALVE, REEDVALVE, REED
-
1310713107-1518 SHAFTSHAFT
-
1316813168-1744 LEVER, VALVE, ASSY., MAINLEVER, VALVE, ASSY., MAIN
-
1409014090-1220 COVER, RODCOVER, ROD
-
14090A14090-1226 COVER, RESONATORCOVER, RESONATOR
-
14090B14090-1249 COVER, GOVERNORCOVER, GOVERNOR
-
1409114091-1325 COVER, CENTERCOVER, CENTER
-
3906239062-0001 HOSE, COOLINGHOSE, COOLING
-
4610246102-1473 RODROD
-
4900249002-1087 GUIDE, VALVEGUIDE, VALVE
-
49002A49002-1147 GUIDE, VALVEGUIDE, VALVE
-
49002B49002-1148 GUIDE, VALVE, IDLEGUIDE, VALVE, IDLE
-
4904649046-1074 ROD, GOVERNORROD, GOVERNOR
-
4911649116-1202 VALVE, ASSY., MAINVALVE, ASSY., MAIN
-
5201452014-1077 ELBOWELBOW
-
5905159051-1371 GEAR, SPUR, IDLERGEAR, SPUR, IDLER
-
9200492004-1236 STUD, 8X28STUD, 8X28
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
92009A92009-1502 SCREW, 5X10SCREW, 5X10
-
9201592015-077 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1151 NUT, CAP, 8MMNUT, CAP, 8MM
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92037A92037-1993 CLAMPCLAMP
-
130130G0510 BOLT, FLANGEDBOLT, FLANGED
-
130A130G0514 BOLT, FLANGEDBOLT, FLANGED
-
130B130G0516 BOLT, FLANGEDBOLT, FLANGED
-
130C130G0535 BOLT, FLANGEDBOLT, FLANGED
-
132132G0608 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
221221B0612 SCREW, CSK, CROS, 6X12SCREW, CSK, CROS, 6X12
-
482482J4000 CIRCLIP, TYPE, E, 4MMCIRCLIP, TYPE, E, 4MM
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9204392043-1579 PIN, 4X34.8PIN, 4X34.8
-
9204992049-1206 SEAL, OIL, RSO, 5.5X11X4SEAL, OIL, RSO, 5.5X11X4
-
9205592055-022 O-RING, 17.5X1.5O-RING, 17.5X1.5
-
92055A92055-1387 O-RING, 11.5X1.5O-RING, 11.5X1.5
-
9206592065-073 GASKET, 12.5X18X1, DRAIN PLUGGASKET, 12.5X18X1, DRAIN PLUG
-
9206692066-1222 PLUG, 12X10PLUG, 12X10
-
9214392143-1056 COLLARCOLLAR
-
9214592145-1556 SPRING, LEVERSPRING, LEVER
-
9215092150-1888 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
-
9217092170-1514 CLAMPCLAMP
