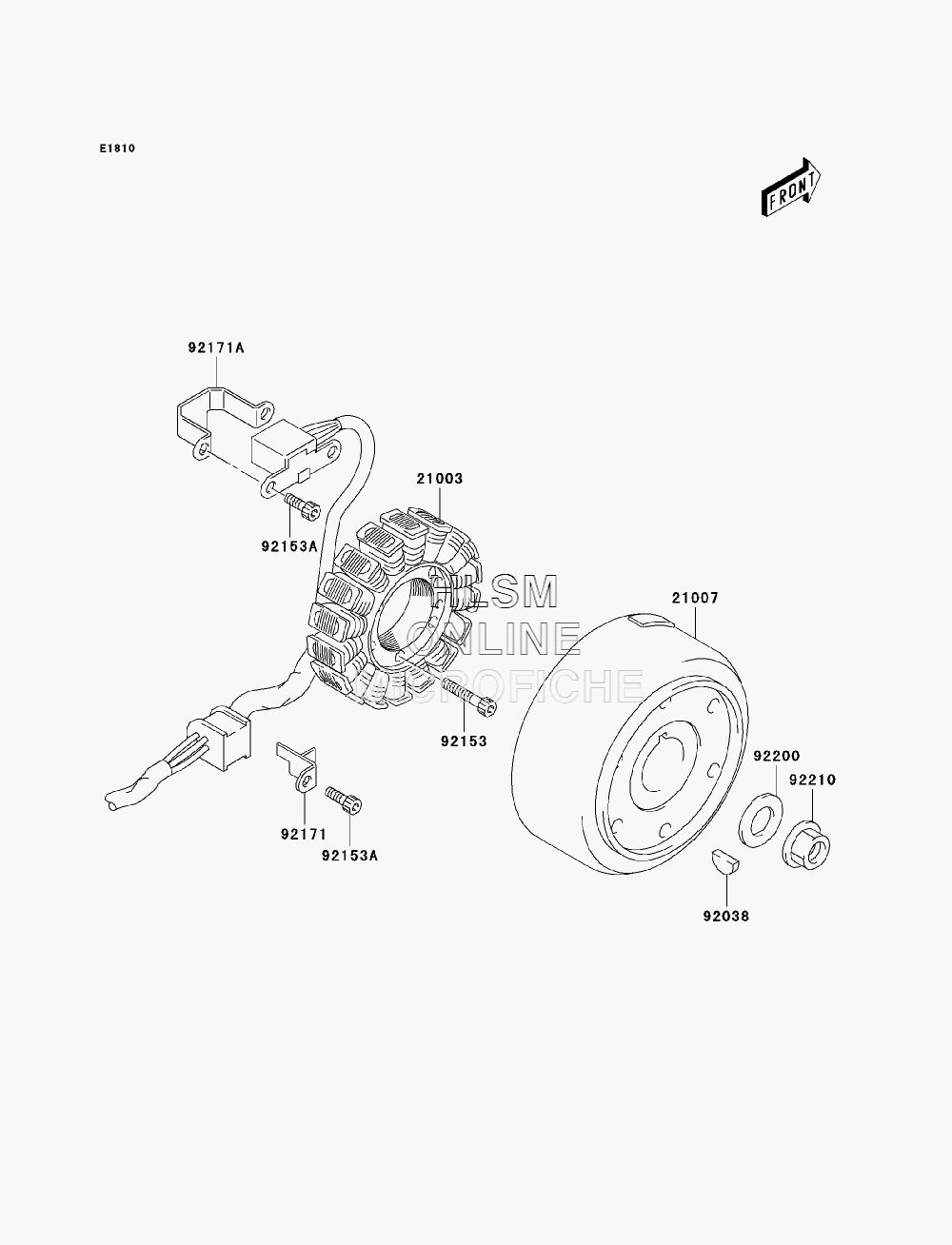

GENERATOR для Kawasaki KLX 400R (KLX400-B1) - 2003 года выпуска
-
№АртикулНазвание
-
2100321003-S007 STATORSTATOR
-
2100721007-S008 ROTORROTOR
-
9203892038-S002 KEYKEY
-
9215392153-S081 BOLTBOLT
-
92153A92153-S256 BOLTBOLT
-
9217192171-S099 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
92171A92171-S117 CLAMP, MAGNETO PULSER LEADCLAMP, MAGNETO PULSER LEAD
-
9220092200-S189 WASHER, 12X27X2WASHER, 12X27X2
-
9221092210-S127 NUTNUT
