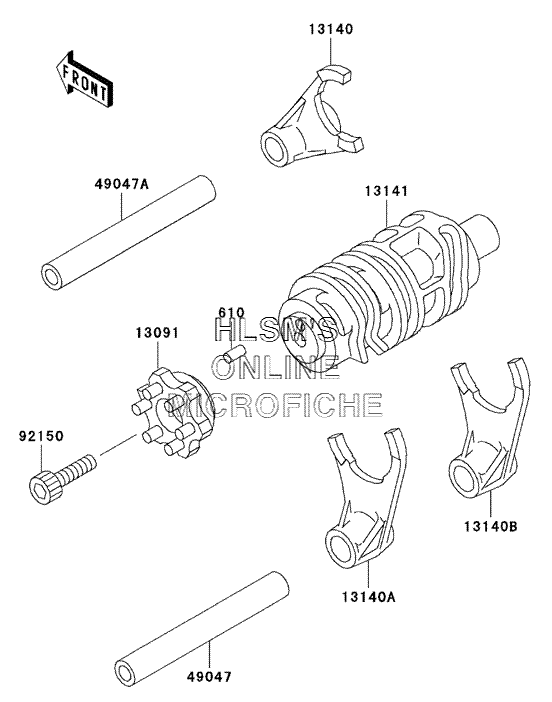

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLX 300R - 2003 года выпуска
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1309113091-1722 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-1216 FORK, SHIFT, 5TH AND TOPFORK, SHIFT, 5TH AND TOP
-
13140A13140-1217 FORK, SHIFT, 2ND AND 3RDFORK, SHIFT, 2ND AND 3RD
-
13140B13140-1218 FORK, SHIFT, LOW AND 4THFORK, SHIFT, LOW AND 4TH
-
1314113141-1198 DRUM, CHANGEDRUM, CHANGE
-
4904749047-1056 ROD, SHIFT, L=106.7ROD, SHIFT, L=106.7
-
49047A49047-1057 ROD, SHIFT, L=71.7ROD, SHIFT, L=71.7
-
9215092150-1645 BOLT, 6X18BOLT, 6X18
