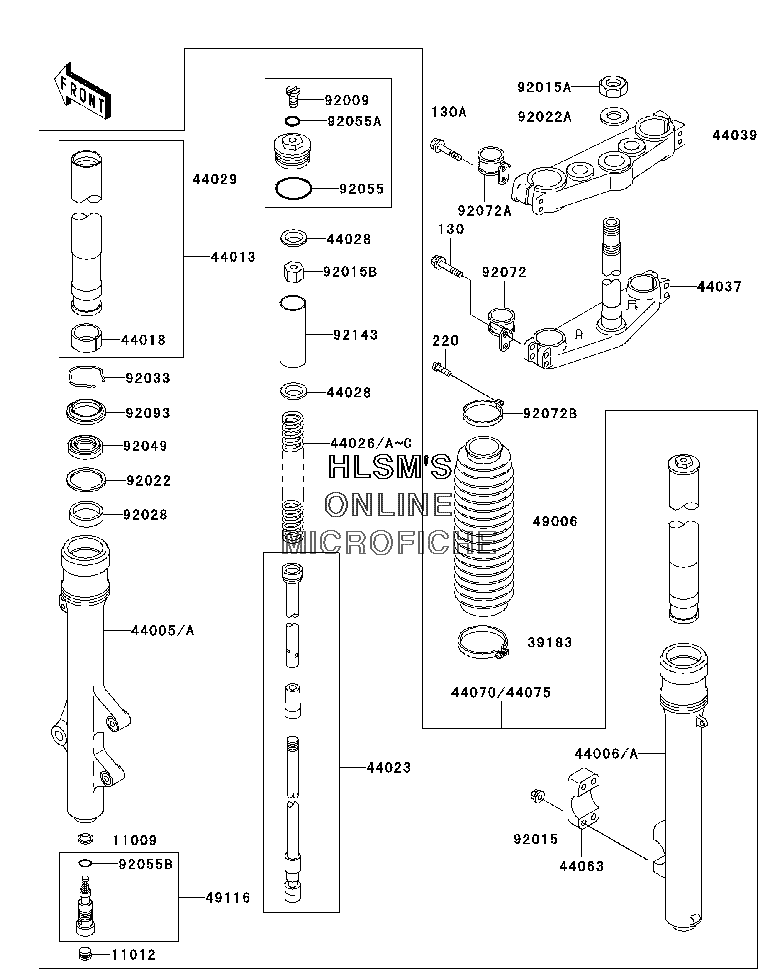

FRONT FORK для Kawasaki KDX 200 - 2003 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1592 GASKET, FORK CYLINDER BOLT
    GASKET, FORK CYLINDER BOLT
  • 11012
    11012-1381 CAP, FORK CYLINDER
    CAP, FORK CYLINDER
  • 39183
    39183-1060 BAND, ASSY, BOOT
    BAND, ASSY, BOOT
  • 44005A
    44005-1433-CE PIPE, LEFT FORK OUTER (SILVER)
    PIPE, LEFT FORK OUTER (SILVER)
  • 44006A
    44006-1433-CE PIPE, RIGHT FORK OUTER (SILVER)
    PIPE, RIGHT FORK OUTER (SILVER)
  • 44013
    44013-1403 PIPE, FORK INNER
    PIPE, FORK INNER
  • 44018
    44018-1056 PISTON, FORK, INNER PIPE
    PISTON, FORK, INNER PIPE
  • 44023
    44023-1109 CYLINDER, COMP, FORK
    CYLINDER, COMP, FORK
  • 44026
    44026-1574 SPRING, FRONT FORK, K=0.34 (OPT)
    SPRING, FRONT FORK, K=0.34 (OPT)
  • 44026A
    44026-1575 SPRING, FRONT FORK, K=0.36 (OPT)
    SPRING, FRONT FORK, K=0.36 (OPT)
  • 44026B
    44026-1576 SPRING, FRONT FORK, K=0.37 (OPT)
    SPRING, FRONT FORK, K=0.37 (OPT)
  • 44026C
    44026-1638 SPRING, FRONT FORK, K=0.35
    SPRING, FRONT FORK, K=0.35
  • 44028
    44028-1010 GUIDE, FORK SPRING
    GUIDE, FORK SPRING
  • 44029
    44029-1152 SEAT, FORK SPRING
    SEAT, FORK SPRING
  • 44037
    44037-1369 HOLDER, FORK UNDER
    HOLDER, FORK UNDER
  • 44039
    44039-1256 HOLDER, FORK UPPER
    HOLDER, FORK UPPER
  • 44063
    44063-1056 HOLDER, FRONT AXLE
    HOLDER, FRONT AXLE
  • 44075
    44075-1180-CE DAMPER, SET, FORK (SILVER)
    DAMPER, SET, FORK (SILVER)
  • 49006
    49006-1296-BD BOOT, FORK (BLACK)
    BOOT, FORK (BLACK)
  • 49116
    49116-1132 VALVE, ASSY, FORK
    VALVE, ASSY, FORK
  • 92009
    92009-1568 SCREW
    SCREW
  • 92015
    92015-1078 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1653 NUT, STEERING STEM, 22MM
    NUT, STEERING STEM, 22MM
  • 92015B
    92015-1839 NUT
    NUT
  • 92022
    92022-1299 WASHER
    WASHER
  • 92022A
    92022-1873 WASHER, STEERING STEM
    WASHER, STEERING STEM
  • 92028
    92028-1581 BUSHING
    BUSHING
  • 92033
    92033-1077 RING, SNAP
    RING, SNAP
  • 92049
    92049-1316 SEAL, OIL, FORK OUTER TUBE
    SEAL, OIL, FORK OUTER TUBE
  • 92055
    92055-1123 O-RING
    O-RING
  • 92055A
    92055-1441 O-RING
    O-RING
  • 92055B
    92055-1502 O-RING, FORK VALVE
    O-RING, FORK VALVE
  • 92072
    92072-1166 BAND, CABLE
    BAND, CABLE
  • 92072A
    92072-1268 BAND
    BAND
  • 130
    130G0845 BOLT, FLANGED, 8X45
    BOLT, FLANGED, 8X45
  • 130A
    130G0850 BOLT, FLANGED, 8X50
    BOLT, FLANGED, 8X50
  • 220
    220B0416 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 92072B
    92072-1316 BAND, BOOT
    BAND, BOOT
  • 92093
    92093-1260 SEAL, FORK DUST
    SEAL, FORK DUST
  • 92143
    92143-1645 COLLAR, FORK, L=90
    COLLAR, FORK, L=90
