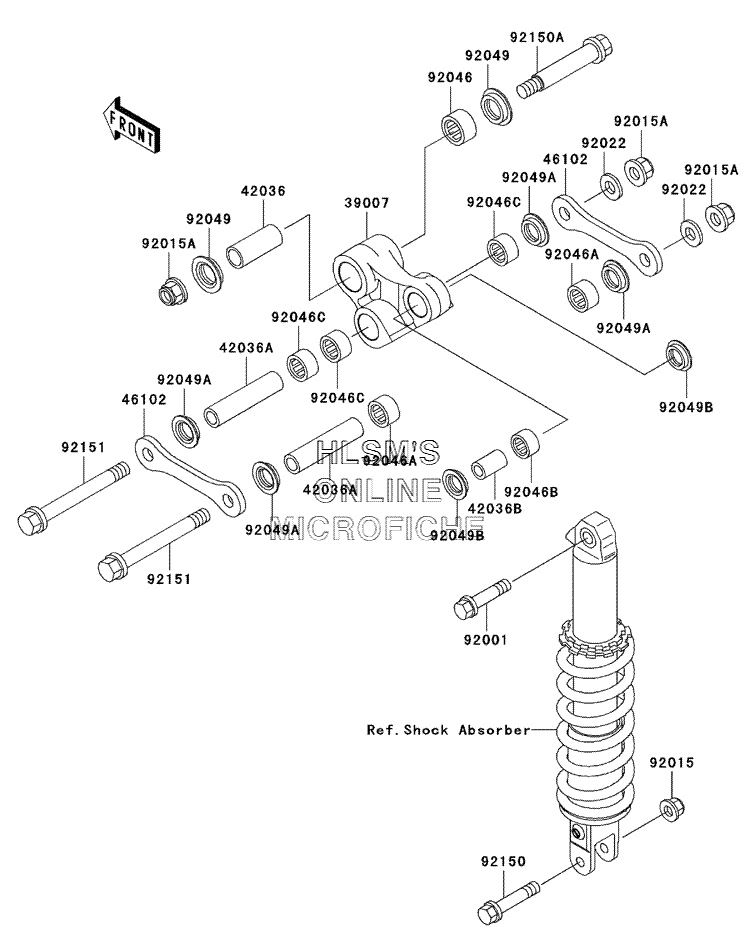

SUSPENSION - REAR для Kawasaki Super Sherpa - 2002 года выпуска`
-
№АртикулНазвание
-
3900739007-1265 ARM, SUSPENSION, UNI TRAKARM, SUSPENSION, UNI TRAK
-
4203642036-1204 SLEEVE, 15X20X47.5SLEEVE, 15X20X47.5
-
42036A42036-1336 SLEEVE, 12.1X18X77.5SLEEVE, 12.1X18X77.5
-
42036B42036-1337 SLEEVE, 10.1X16X26.5SLEEVE, 10.1X16X26.5
-
4610246102-1428 ROD, SUSPENSIONROD, SUSPENSION
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202292022-1196 WASHER, 12.4X28X4.5WASHER, 12.4X28X4.5
-
9204692046-1110 BEARING, NEEDLE, BM202726BEARING, NEEDLE, BM202726
-
92046A92046-1144 BEARING, NEEDLE, 18BM2416BEARING, NEEDLE, 18BM2416
-
92046B92046-1192 BEARING, NEEDLE, 16BM2212BEARING, NEEDLE, 16BM2212
-
92046C92046-1238 BEARING, NEEDLE, 7E, HVS18X24X16BEARING, NEEDLE, 7E, HVS18X24X16
-
9204992049-1109 SEAL, OIL, ARM, CENTERSEAL, OIL, ARM, CENTER
-
92049A92049-1328 SEAL, OILSEAL, OIL
-
92049B92049-1466 SEAL, OIL, SD03 16 22 5.7SEAL, OIL, SD03 16 22 5.7
-
9215092150-1125 BOLT, FLANGED, 10X50BOLT, FLANGED, 10X50
-
92150A92150-1213 BOLT, ROD, 12X85BOLT, ROD, 12X85
-
9215192151-1169 BOLT, FLANGED, 12X110BOLT, FLANGED, 12X110
