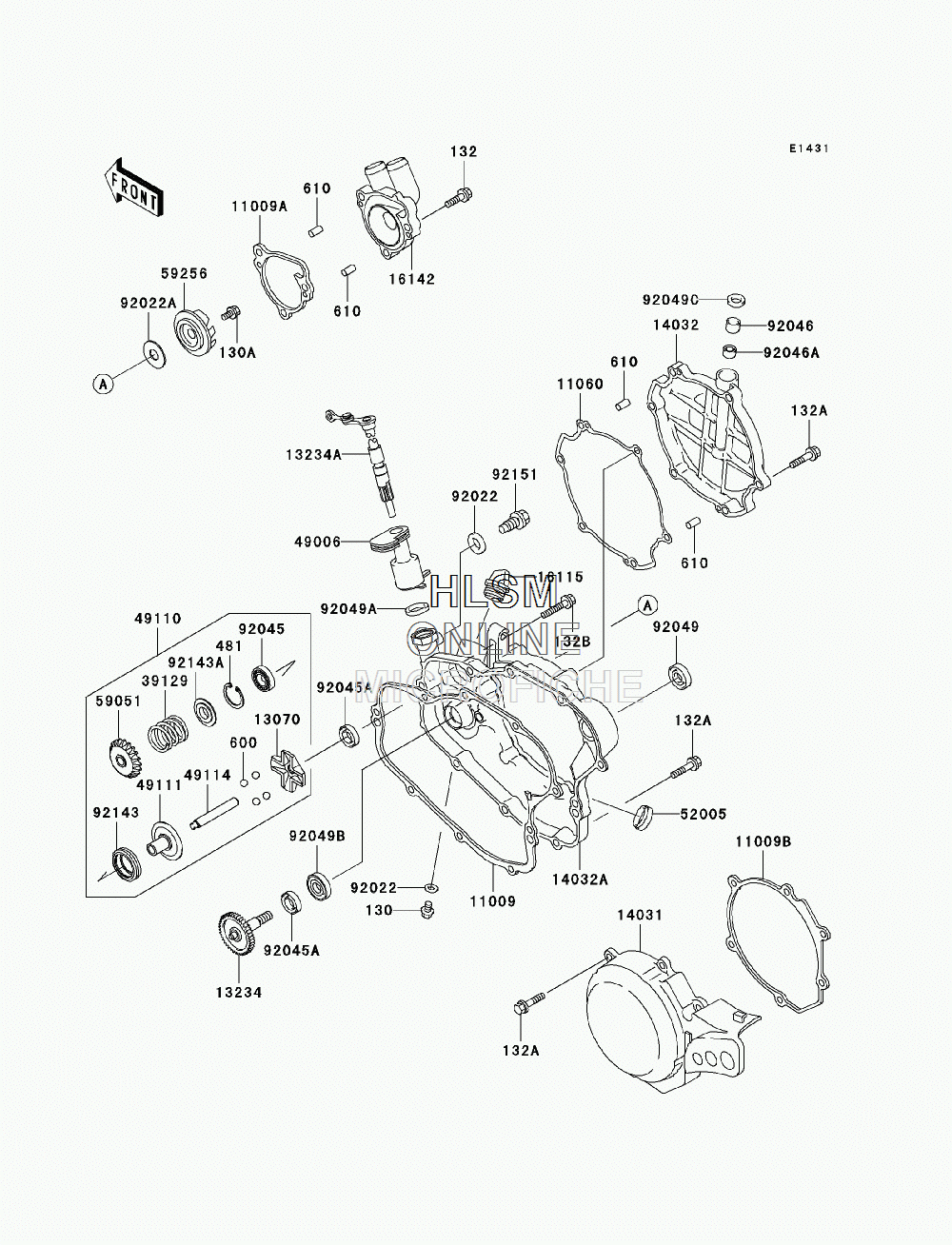

ENGINE COVER для Kawasaki KX 85 - 2002 года выпуска`
-
№АртикулНазвание
-
130130B0608 BOLT-FLANGED,6X8BOLT-FLANGED,6X8
-
130A130P0510 BOLT-FLANGEDBOLT-FLANGED
-
132132G0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132G0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132G0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
481481J2400 CIRCLIPCIRCLIP
-
600600A1000 BALL-STEEL,5/16"BALL-STEEL,5/16"
-
1100911009-1971 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
11009A11009-1972 GASKET,PUMP COVERGASKET,PUMP COVER
-
11009B11009-1973 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
1106011060-1795 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
1307013070-1309 GUIDE,GOVERNORGUIDE,GOVERNOR
-
1323413234-1103 SHAFT-COMP,WATER PUMPSHAFT-COMP,WATER PUMP
-
13234A13234-1104 SHAFT-COMP,GOVERNORSHAFT-COMP,GOVERNOR
-
1403114031-1241 COVER-GENERATORCOVER-GENERATOR
-
1403214032-1463 COVER-CLUTCH,OUTSIDECOVER-CLUTCH,OUTSIDE
-
14032A14032-1514 COVER-CLUTCH,INSIDECOVER-CLUTCH,INSIDE
-
1611516115-018 CAP-OIL FILLERCAP-OIL FILLER
-
1614216142-1144 COVER-PUMP,WATERCOVER-PUMP,WATER
-
3912939129-1022 SPRING-GOVERNORSPRING-GOVERNOR
-
4900649006-1313 BOOT,GOVERNORBOOT,GOVERNOR
-
4911049110-1101 GOVERNOR-ASSYGOVERNOR-ASSY
-
4911149111-1064 HOLDER-GOVERNOR WEIGHTHOLDER-GOVERNOR WEIGHT
-
4911449114-1101 SHAFT-GOVERNORSHAFT-GOVERNOR
-
5200552005-1055 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
5905159051-1331 GEAR-SPUR,GOVERNORGEAR-SPUR,GOVERNOR
-
5925659256-1064 IMPELLERIMPELLER
-
9202292022-077 WASHER,6.1X12X1WASHER,6.1X12X1
-
92022A92022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9204592045-1246 BEARING-BALL,6901BEARING-BALL,6901
-
92045A92045-1305 BEARING-BALL,608MC3BEARING-BALL,608MC3
-
9204692046-1160 BEARING-NEEDLE,HK1010BEARING-NEEDLE,HK1010
-
92046A92046-1217 BEARING-NEEDLE,6BTM109BEARING-NEEDLE,6BTM109
-
9204992049-002 SEAL-OIL,SB16244SEAL-OIL,SB16244
-
92049A92049-1262 SEAL-OILSEAL-OIL
-
92049B92049-1366 SEAL-OIL,MHSD8X18X10J-1SEAL-OIL,MHSD8X18X10J-1
-
92049C92049-1414 SEAL-OIL,BG1408F0SEAL-OIL,BG1408F0
-
9214392143-1932 COLLARCOLLAR
-
92143A92143-1933 COLLARCOLLAR
-
9215192151-1180 BOLTBOLT
-
610610A0408 ROLLER,4X8ROLLER,4X8
