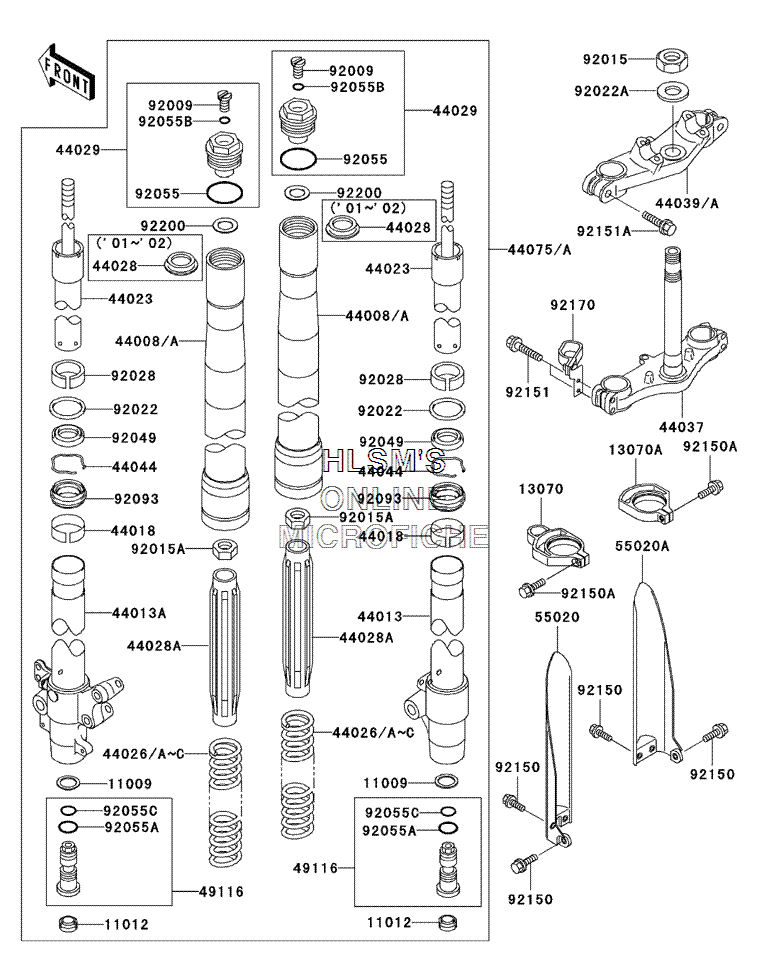

FRONT FORK для Kawasaki KX 100 - 2002 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1592 GASKET, FORK CYLINDER BOLT
    GASKET, FORK CYLINDER BOLT
  • 11012
    11012-1692 CAP
    CAP
  • 13070
    13070-1310-RZ GUIDE, PROTECTOR (LEFT) (WHITE)
    GUIDE, PROTECTOR (LEFT) (WHITE)
  • 13070A
    13070-1311-RZ GUIDE, PROTECTOR (RIGHT) (WHITE)
    GUIDE, PROTECTOR (RIGHT) (WHITE)
  • 44008A
    44008-1041-14 PIPE, FORK OUTER (A.N.GOLD)
    PIPE, FORK OUTER (A.N.GOLD)
  • 44013
    44013-1442 PIPE, FORK INNER (RIGHT)
    PIPE, FORK INNER (RIGHT)
  • 44013A
    44013-1484 PIPE, FORK INNER (LEFT)
    PIPE, FORK INNER (LEFT)
  • 44018
    44018-1058 PISTON, FORK
    PISTON, FORK
  • 44023
    44023-1119 CYLINDER, SET, FORK
    CYLINDER, SET, FORK
  • 44026
    44026-1633 SPRING, FRONT FORK, K=0.28 (OPT)
    SPRING, FRONT FORK, K=0.28 (OPT)
  • 44026A
    44026-1634 SPRING, FRONT FORK, K=0.29
    SPRING, FRONT FORK, K=0.29
  • 44026B
    44026-1635 SPRING, FRONT FORK, K=0.30 (OPT)
    SPRING, FRONT FORK, K=0.30 (OPT)
  • 44026C
    44026-1671 SPRING, FRONT FORK, K=0.27 (OPT)
    SPRING, FRONT FORK, K=0.27 (OPT)
  • 44028
    44028-1085 GUIDE, FORK SPRING
    GUIDE, FORK SPRING
  • 44028A
    44028-1090 GUIDE, FORK SPRING
    GUIDE, FORK SPRING
  • 44029
    44029-1152 SEAT, FORK SPRING
    SEAT, FORK SPRING
  • 44037
    44037-1360 HOLDER, FORK UNDER
    HOLDER, FORK UNDER
  • 44039A
    44039-1294 HOLDER, FORK UPPER
    HOLDER, FORK UPPER
  • 44044
    44044-015 RING, SNAP
    RING, SNAP
  • 44075A
    44075-1131-14 DAMPER, SET, FORK (GOLD)
    DAMPER, SET, FORK (GOLD)
  • 49116
    49116-1153 VALVE, ASSY, FORK
    VALVE, ASSY, FORK
  • 55020
    55020-1611-RZ GUARD, FORK (LEFT) (WHITE)
    GUARD, FORK (LEFT) (WHITE)
  • 55020A
    55020-1612-RZ GUARD, FORK (RIGHT) (WHITE)
    GUARD, FORK (RIGHT) (WHITE)
  • 92009
    92009-1568 SCREW
    SCREW
  • 92015
    92015-1653 NUT, STEERING STEM, 22MM
    NUT, STEERING STEM, 22MM
  • 92015A
    92015-1839 NUT
    NUT
  • 92022
    92022-1275 WASHER, FRONT FORK
    WASHER, FRONT FORK
  • 92022A
    92022-1873 WASHER, STEERING STEM
    WASHER, STEERING STEM
  • 92028
    92028-1656 BUSHING
    BUSHING
  • 92049
    92049-1394 SEAL, OIL, FORK OUTER TUBE
    SEAL, OIL, FORK OUTER TUBE
  • 92055
    92055-1123 O-RING
    O-RING
  • 92055A
    92055-1156 O-RING, REARSHOCK
    O-RING, REARSHOCK
  • 92055B
    92055-1441 O-RING
    O-RING
  • 92055C
    92055-1502 O-RING, FORK VALVE
    O-RING, FORK VALVE
  • 92093
    92093-1426 SEAL, FORK OUTER TUBE
    SEAL, FORK OUTER TUBE
  • 92150
    92150-1340 BOLT, 6X14
    BOLT, 6X14
  • 92150A
    92150-1802 BOLT, 5X16
    BOLT, 5X16
  • 92151
    92151-1877 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 92151A
    92151-1878 BOLT, FLANGED, 8X35
    BOLT, FLANGED, 8X35
  • 92170
    92170-1810 CLAMP
    CLAMP
