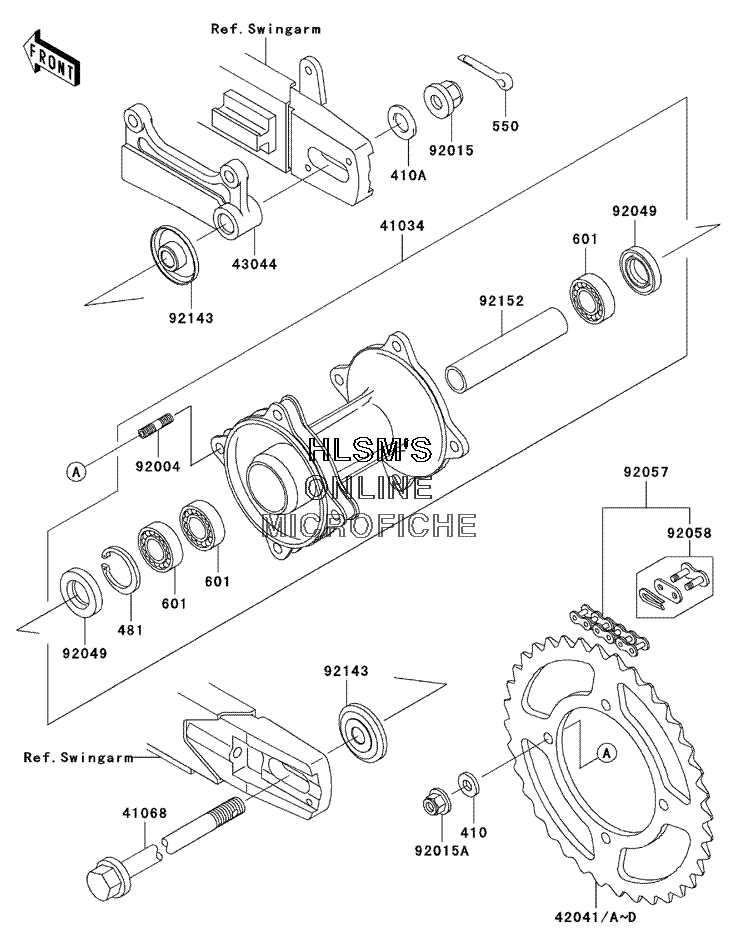

REAR HUB для Kawasaki KX 100 - 2001 года выпуска`
-
№АртикулНазвание
-
410410B0800 WASHER, PLAIN, SMALL, 8MMWASHER, PLAIN, SMALL, 8MM
-
410A410B1400 WASHER, PLAIN, SMALL, 14MMWASHER, PLAIN, SMALL, 14MM
-
481481J3500 CIRCLIP, TYPE, C, 35MMCIRCLIP, TYPE, C, 35MM
-
550550D2520 PIN, COTTER, 2.5X20PIN, COTTER, 2.5X20
-
601601B6202UU BEARING, BALLBEARING, BALL
-
4103441034-1323 DRUM, ASSY., REAR BRAKEDRUM, ASSY., REAR BRAKE
-
4106841068-1401 AXLE, REARAXLE, REAR
-
4204142041-1207 SPROCKET, HUB (49 TEETH) (OPT)SPROCKET, HUB (49 TEETH) (OPT)
-
42041A42041-1228 SPROCKET, HUB (50 TEETH) (OPT)SPROCKET, HUB (50 TEETH) (OPT)
-
42041B42041-1229 SPROCKET, HUB (51 TEETH)SPROCKET, HUB (51 TEETH)
-
42041C42041-1245 SPROCKET, HUB (52 TEETH) (OPT)SPROCKET, HUB (52 TEETH) (OPT)
-
42041D42041-1246 SPROCKET, HUB (53 TEETH) (OPT)SPROCKET, HUB (53 TEETH) (OPT)
-
4304443044-1122 HOLDER, COMP, CALIPERHOLDER, COMP, CALIPER
-
9200492004-1183 STUD, 8X16STUD, 8X16
-
9201592015-1401 NUT, FLANGED, 14MMNUT, FLANGED, 14MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
9204992049-1469 SEAL, OILSEAL, OIL
-
9205792057-1497 CHAIN, DRIVE, DID420DS2X124LCHAIN, DRIVE, DID420DS2X124L
-
9205892058-1086 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9214392143-1938 COLLAR, REAR AXLE, L=12.5COLLAR, REAR AXLE, L=12.5
-
9215292152-1090 COLLAR, REAR BRAKE DRUM, L=95COLLAR, REAR BRAKE DRUM, L=95
