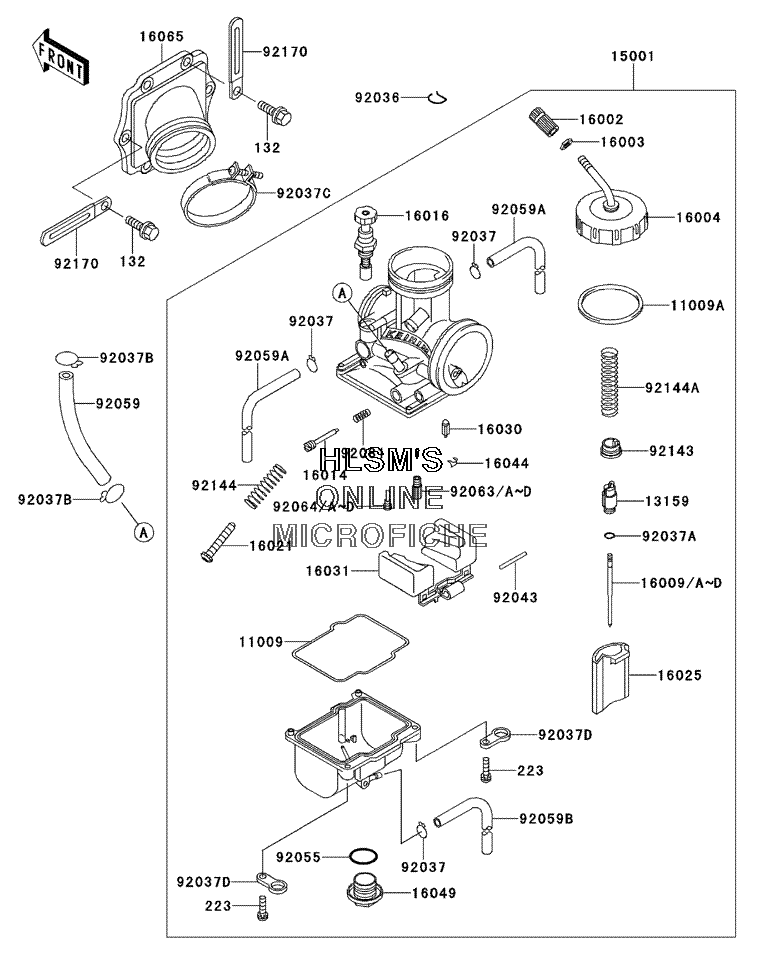

CARBURETOR для Kawasaki KDX 220R - 2001 года выпуска
-
№АртикулНазвание
-
1100911009-1716 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
11009A11009-1717 GASKET, CHAMBER CAPGASKET, CHAMBER CAP
-
1315913159-1063 CONNECTOR, THROTTLE CABLECONNECTOR, THROTTLE CABLE
-
1500115001-1981 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1600216002-1057 ADJUSTER, CABLEADJUSTER, CABLE
-
1600316003-004 NUT, CABLE ADJUST LOCKNUT, CABLE ADJUST LOCK
-
1600416004-1070 CAP, CHAMBERCAP, CHAMBER
-
1600916009-1823 NEEDLE, JET, R1171L/2AFLM (OPT)NEEDLE, JET, R1171L/2AFLM (OPT)
-
16009A16009-1824 NEEDLE, JET, R1172L/2AFLN (OPT)NEEDLE, JET, R1172L/2AFLN (OPT)
-
16009B16009-1825 NEEDLE, JET, R1173L/2AFLPNEEDLE, JET, R1173L/2AFLP
-
16009C16009-1826 NEEDLE, JET, R1174L/2AFLQ (OPT)NEEDLE, JET, R1174L/2AFLQ (OPT)
-
16009D16009-1827 NEEDLE, JET, R1175L/2AFLR (OPT)NEEDLE, JET, R1175L/2AFLR (OPT)
-
1601416014-1058 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1075 PLUNGER, STARTERPLUNGER, STARTER
-
1602116021-1161 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1602516025-1172 VALVE, THROTTLE, CA5VALVE, THROTTLE, CA5
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1067 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1604916049-1051 COVER, MAIN JETCOVER, MAIN JET
-
1606516065-1298 HOLDER, CARBURETORHOLDER, CARBURETOR
-
9203692036-018 RING, SNAPRING, SNAP
-
9203792037-1396 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1401 CLAMP, JET NEEDLECLAMP, JET NEEDLE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1843 CLAMPCLAMP
-
92037D92037-1969 CLAMP, HOSECLAMP, HOSE
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1167 O-RING, MAIN JET COVERO-RING, MAIN JET COVER
-
9205992059-1888 TUBETUBE
-
92059A92059-1896 TUBE, 4X7X420TUBE, 4X7X420
-
92059B92059-1897 TUBE, 3.5X6.5X330TUBE, 3.5X6.5X330
-
9206392063-1360 JET, MAIN, #140 (OPT)JET, MAIN, #140 (OPT)
-
92063A92063-1361 JET, MAIN, #142 (OPT)JET, MAIN, #142 (OPT)
-
92063B92063-1362 JET, MAIN, #145JET, MAIN, #145
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
92063C92063-1363 JET, MAIN, #148 (OPT)JET, MAIN, #148 (OPT)
-
92063D92063-1364 JET, MAIN, #150 (OPT)JET, MAIN, #150 (OPT)
-
9206492064-1139 JET, PILOT, #38 (OPT)JET, PILOT, #38 (OPT)
-
92064A92064-1140 JET, PILOT, #40 (OPT)JET, PILOT, #40 (OPT)
-
92064B92064-1141 JET, PILOT, #42JET, PILOT, #42
-
92064C92064-1142 JET, PILOT, #45 (OPT)JET, PILOT, #45 (OPT)
-
92064D92064-1143 JET, PILOT, #48 (OPT)JET, PILOT, #48 (OPT)
-
9208192081-1555 SPRING, ADJUST SCREWSPRING, ADJUST SCREW
-
9214392143-1201 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
9214492144-1257 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
92144A92144-1305 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
9217092170-1514 CLAMPCLAMP
