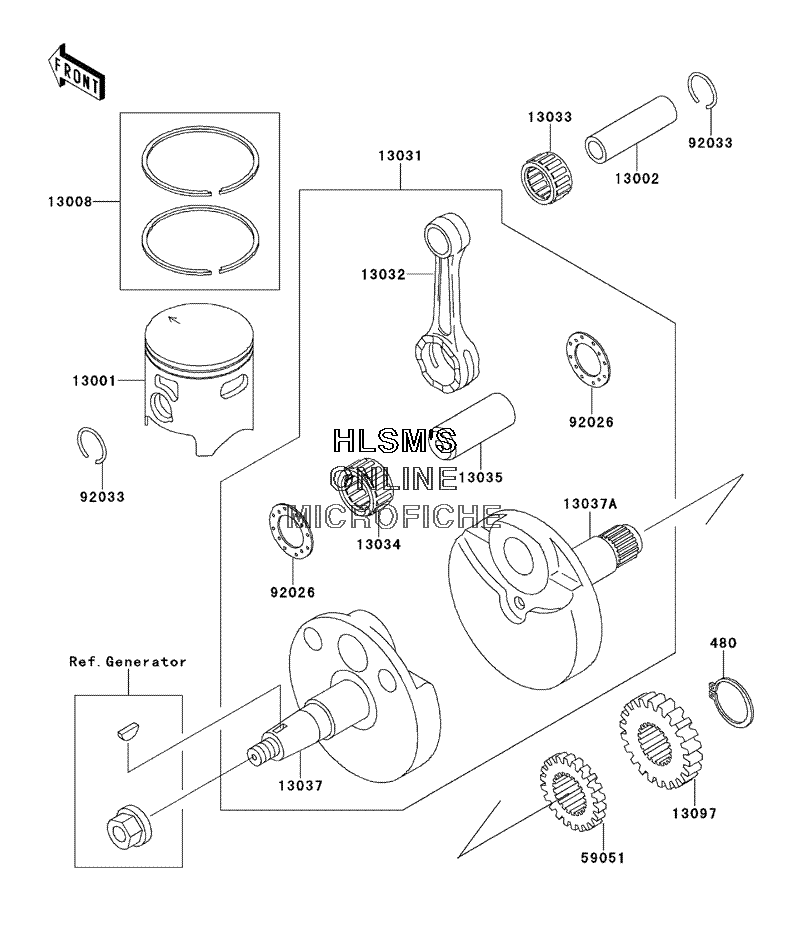

CRANKSHAFT - PISTON(S) для Kawasaki KX 80 - 2000 года выпуска

  • №
    Артикул
    Название
  • 480
    480J1600 CIRCLIP, TYPE, C, 16MM
    CIRCLIP, TYPE, C, 16MM
  • 13001
    13001-1497 PISTON, ENGINE
    PISTON, ENGINE
  • 13002
    13002-1079 PIN, PISTON
    PIN, PISTON
  • 13008
    13008-1100 RING, SET, PISTON
    RING, SET, PISTON
  • 13031
    13031-1433 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13032
    13032-1230 ROD, CONNECTING
    ROD, CONNECTING
  • 13033
    13033-1053 BEARING, SMALL END, 14R1818AP, 1
    BEARING, SMALL END, 14R1818AP, 1
  • 13034
    13034-1104 BEARING, BIG END, B4
    BEARING, BIG END, B4
  • 13035
    13035-1054 PIN, CRANK
    PIN, CRANK
  • 13037
    13037-1571 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 13037A
    13037-1572 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13097
    13097-1148 GEAR, PRIMARY SPUR (20 TEETH)
    GEAR, PRIMARY SPUR (20 TEETH)
  • 59051
    59051-1146 GEAR, SPUR, PUMP (23 TEETH)
    GEAR, SPUR, PUMP (23 TEETH)
  • 92026
    92026-1136 SPACER, 22.2X37X1.0
    SPACER, 22.2X37X1.0
  • 92033
    92033-1050 RING, SNAP
    RING, SNAP
