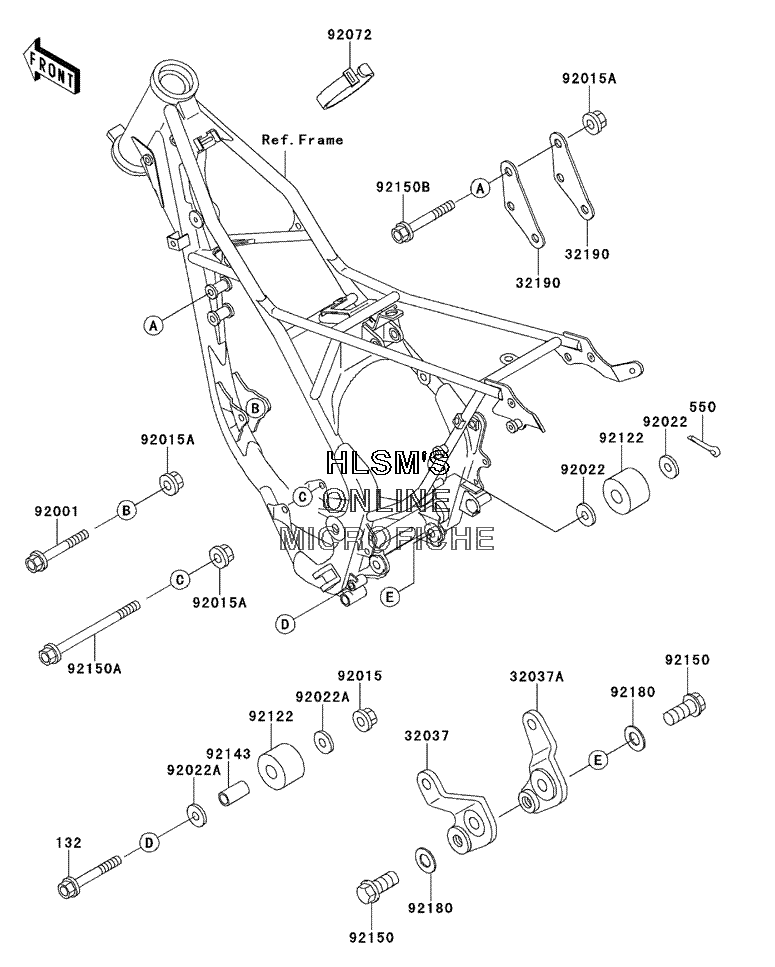

FRAME FITTING(S) для Kawasaki KX 100 - 2000 года выпуска`
-
№АртикулНазвание
-
132132G0860 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
550550D2518 PIN, COTTER, 2.5X18PIN, COTTER, 2.5X18
-
3203732037-1552 BRACKET, SHOCKABSORBERBRACKET, SHOCKABSORBER
-
32037A32037-1553 BRACKET, SHOCKABSORBERBRACKET, SHOCKABSORBER
-
3219032190-1119 BRACKET, ENGINE, HEADBRACKET, ENGINE, HEAD
-
9200192001-1006 BOLT, FLANGED, 8X63BOLT, FLANGED, 8X63
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
9202292022-107 WASHERWASHER
-
92022A92022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9207292072-1293 BAND, L=140BAND, L=140
-
9212292122-1179 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9214392143-1432 COLLAR, 9.5X12.7X25COLLAR, 9.5X12.7X25
-
9215092150-1359 BOLT, FLANGED, 12X27BOLT, FLANGED, 12X27
-
92150A92150-1482 BOLT, FLANGED, 8X105BOLT, FLANGED, 8X105
-
92150B92150-1487 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
9218092180-1060 SHIM, 12.5X24X0.5SHIM, 12.5X24X0.5
