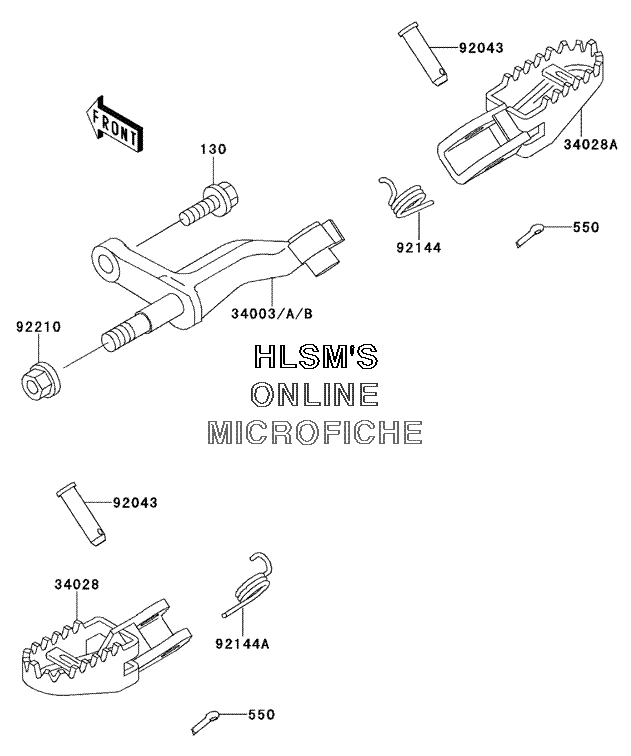

FOOTRESTS для Kawasaki KLX 300R - 2000 года выпуска
-
№АртикулНазвание
-
130130P1020 BOLT, FLANGED, 10X20BOLT, FLANGED, 10X20
-
550550D2515 PIN, COTTER, 2.5X15PIN, COTTER, 2.5X15
-
3400334003-1401-CC HOLDER, STEP (RIGHT) (L.GREEN)HOLDER, STEP (RIGHT) (L.GREEN)
-
3402834028-1361 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028A34028-1362 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
9204392043-115 PIN, 8X35.5PIN, 8X35.5
-
9214492144-1685 SPRING, STEP RETURN (RIGHT)SPRING, STEP RETURN (RIGHT)
-
92144A92144-1749 SPRING, STEP RETURN (LEFT)SPRING, STEP RETURN (LEFT)
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
