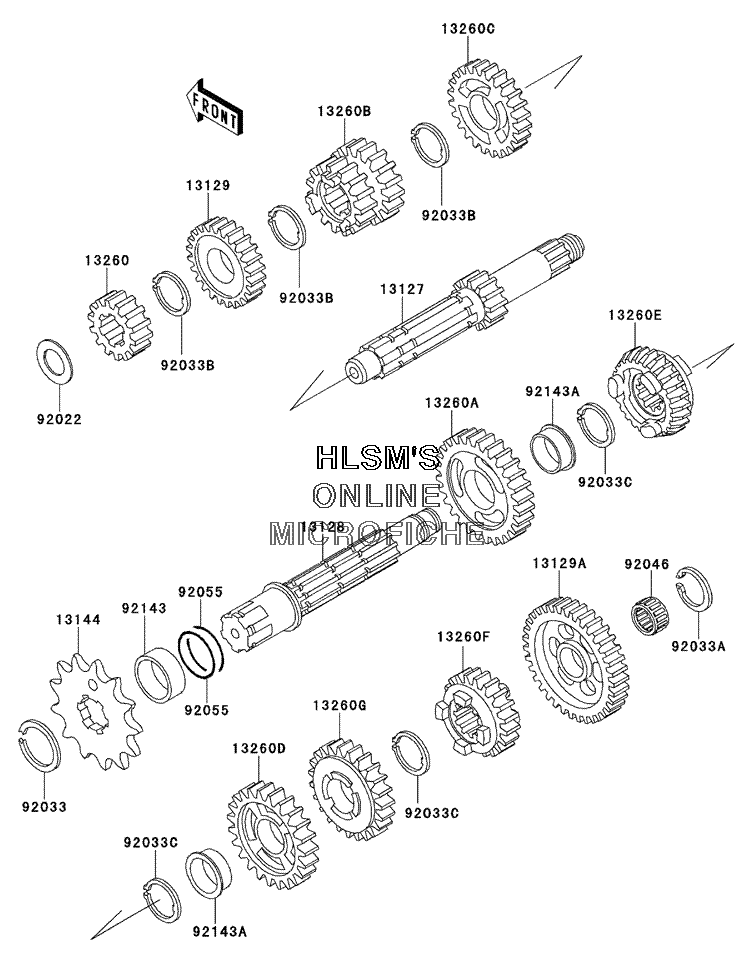

TRANSMISSION для Kawasaki KDX 220R - 2000 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-1237 SHAFT, TRANSMISSION INPUT (13 TEETH)
    SHAFT, TRANSMISSION INPUT (13 TEETH)
  • 13128
    13128-1164 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13129
    13129-1753 GEAR, INPUT 5TH (24 TEETH)
    GEAR, INPUT 5TH (24 TEETH)
  • 13129A
    13129-1755 GEAR, OUTPUT LOW (35 TEETH)
    GEAR, OUTPUT LOW (35 TEETH)
  • 13144
    13144-1027 SPROCKET, OUTPUT (13 TEETH)
    SPROCKET, OUTPUT (13 TEETH)
  • 13260
    13260-1003 GEAR, INPUT 2ND (14 TEETH)
    GEAR, INPUT 2ND (14 TEETH)
  • 13260A
    13260-1004 GEAR, OUTPUT 2ND (28 TEETH)
    GEAR, OUTPUT 2ND (28 TEETH)
  • 13260B
    13260-1006 GEAR, INPUT 3RD AND 4TH (15 AND 17 TEETH)
    GEAR, INPUT 3RD AND 4TH (15 AND 17 TEETH)
  • 13260C
    13260-1425 GEAR, INPUT TOP (23 TEETH)
    GEAR, INPUT TOP (23 TEETH)
  • 13260D
    13260-1426 GEAR, OUTPUT 3RD (23 TEETH)
    GEAR, OUTPUT 3RD (23 TEETH)
  • 13260E
    13260-1427 GEAR, OUTPUT 5TH (25 TEETH)
    GEAR, OUTPUT 5TH (25 TEETH)
  • 13260F
    13260-1489 GEAR, OUTPUT TOP (20 TEETH)
    GEAR, OUTPUT TOP (20 TEETH)
  • 13260G
    13260-1567 GEAR, OUTPUT 4TH (21 TEETH)
    GEAR, OUTPUT 4TH (21 TEETH)
  • 92022
    92022-170 WASHER, THRUST, 16.5X28X1
    WASHER, THRUST, 16.5X28X1
  • 92033
    92033-026 RING, SNAP, 24MM
    RING, SNAP, 24MM
  • 92033A
    92033-032 RING, SNAP
    RING, SNAP
  • 92033B
    92033-1231 RING, SNAP, 20MM
    RING, SNAP, 20MM
  • 92033C
    92033-1258 RING, SNAP, 20MM
    RING, SNAP, 20MM
  • 92046
    92046-1059 BEARING, NEEDLE, K17X23X13.8X
    BEARING, NEEDLE, K17X23X13.8X
  • 92055
    92055-035 O-RING
    O-RING
  • 92143
    92143-1433 COLLAR
    COLLAR
  • 92143A
    92143-1472 COLLAR
    COLLAR
