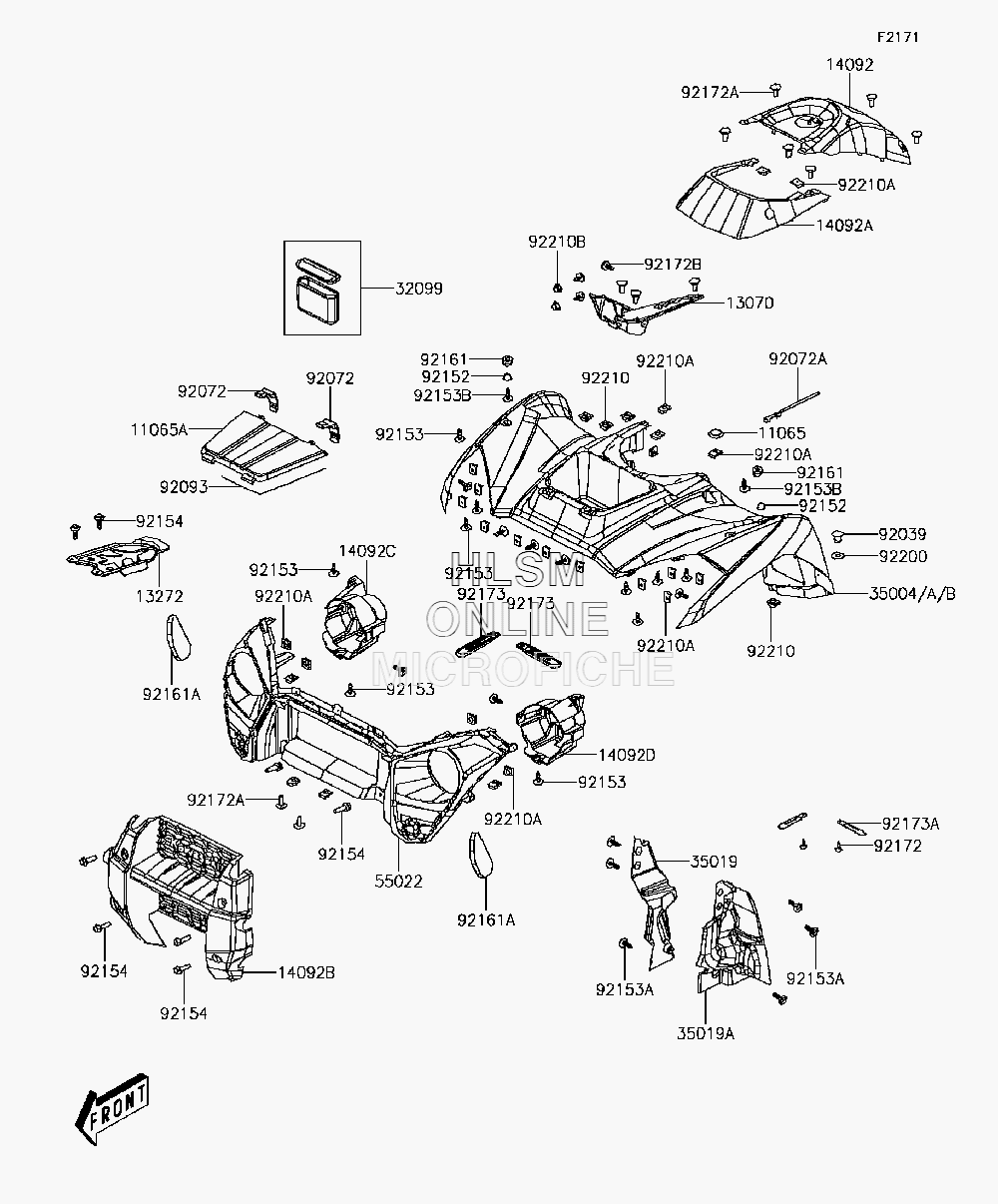

FENDER - FRONT для Kawasaki BRUTE FORCE 300 (KVF300CHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 11065
    11065-Y009 CAP, TOOL BOX
    CAP, TOOL BOX
  • 11065A
    11065-Y010-933 CAP, STORAGE BOX, (S.BLACK) (FOR ALL COLORS)
    CAP, STORAGE BOX, (S.BLACK) (FOR ALL COLORS)
  • 13070
    13070-Y003-933 GUIDE, COVER SHIFT LEVER, (BLACK) (FOR ALL COLORS)
    GUIDE, COVER SHIFT LEVER, (BLACK) (FOR ALL COLORS)
  • 13272
    13272-Y010-933 PLATE, (S.BLACK) (FOR ALL COLORS)
    PLATE, (S.BLACK) (FOR ALL COLORS)
  • 14092
    14092-Y008-933 COVER, (S.BLACK) (FOR ALL COLORS)
    COVER, (S.BLACK) (FOR ALL COLORS)
  • 14092A
    14092-Y009-933 COVER, FRONT FENDER, (S.BLACK) (FOR ALL COLORS)
    COVER, FRONT FENDER, (S.BLACK) (FOR ALL COLORS)
  • 14092B
    14092-Y010-933 COVER, FRONT BUMPER, (S.BLACK) (FOR ALL COLORS)
    COVER, FRONT BUMPER, (S.BLACK) (FOR ALL COLORS)
  • 14092C
    14092-Y011-933 COVER, RIGHT HEAD LAMP, (S.BLACK) (FOR ALL COLORS)
    COVER, RIGHT HEAD LAMP, (S.BLACK) (FOR ALL COLORS)
  • 14092D
    14092-Y012-933 COVER, LEFT HEAD LAMP, (S.BLACK) (FOR ALL COLORS)
    COVER, LEFT HEAD LAMP, (S.BLACK) (FOR ALL COLORS)
  • 32099
    32099-Y006 CASE, OWNERS MANUAL
    CASE, OWNERS MANUAL
  • 35004A
    35004-Y002-933 FENDER-FRONT, (S.BLACK) (FOR 933)
    FENDER-FRONT, (S.BLACK) (FOR 933)
  • 35004B
    35004-Y002-973 FENDER-FRONT, (T.GREEN) (FOR 973)
    FENDER-FRONT, (T.GREEN) (FOR 973)
  • 35019
    35019-Y001-933 FLAP, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)
    FLAP, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)
  • 35019A
    35019-Y002-933 FLAP, LEFT HAND, (S.BLACK) (FOR ALL COLORS)
    FLAP, LEFT HAND, (S.BLACK) (FOR ALL COLORS)
  • 55022
    55022-Y001-933 COVER-HEAD LAMP, (S.BLACK) (FOR ALL COLORS)
    COVER-HEAD LAMP, (S.BLACK) (FOR ALL COLORS)
  • 92039
    92039-Y001 RIVET, 3.2X9.8
    RIVET, 3.2X9.8
  • 92072
    92072-Y006 BAND, CAP STORAGE BOX
    BAND, CAP STORAGE BOX
  • 92072A
    92072-Y007 BAND
    BAND
  • 92093
    92093-Y012 SEAL
    SEAL
  • 92152
    92152-Y018 COLLAR
    COLLAR
  • 92153
    92153-Y013 BOLT, 5X16
    BOLT, 5X16
  • 92153A
    92153-Y018 BOLT, 6X16
    BOLT, 6X16
  • 92153B
    92153-Y019 BOLT, 6X20
    BOLT, 6X20
  • 92154
    92154-Y023 BOLT, FLANGE, 6MM
    BOLT, FLANGE, 6MM
  • 92161
    92161-Y011 DAMPER
    DAMPER
  • 92161A
    92161-Y020 DAMPER, FRONT BUMPER COVER
    DAMPER, FRONT BUMPER COVER
  • 92172
    92172-Y019 SCREW, 4X12
    SCREW, 4X12
  • 92172A
    92172-Y039 SCREW, 5X16
    SCREW, 5X16
  • 92172B
    92172-Y041 SCREW, 6X20
    SCREW, 6X20
  • 92173
    92173-Y004 CLAMP
    CLAMP
  • 92173A
    92173-Y011 CLAMP, 2X70
    CLAMP, 2X70
  • 92200
    92200-Y017 WASHER, 3MM
    WASHER, 3MM
  • 92210
    92210-Y011 NUT, 6MM
    NUT, 6MM
  • 92210A
    92210-Y016 NUT, 5MM
    NUT, 5MM
  • 92210B
    92210-Y031 NUT
    NUT
