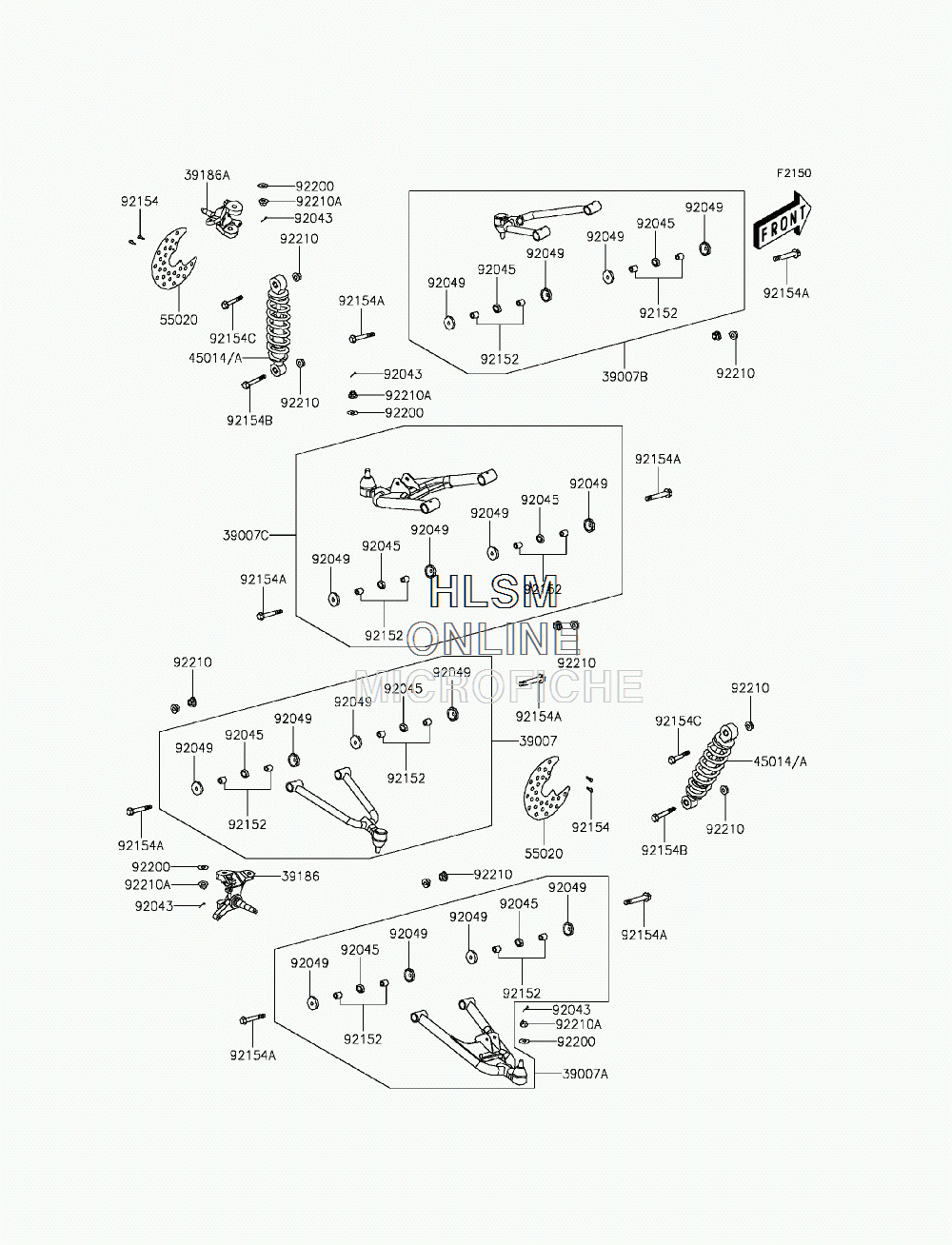

SUSPENSION для Kawasaki BRUTE FORCE 300 (KVF300CEF) - 2014 года выпуска
-
№АртикулНазвание
-
3900739007-Y003-945 ARM-SUSP, FRONT, UPP, RIGHT HAND, (BLACK)ARM-SUSP, FRONT, UPP, RIGHT HAND, (BLACK)
-
39007A39007-Y004-945 ARM-SUSP, FRONT, LWR, RIGHT HAND, (BLACK)ARM-SUSP, FRONT, LWR, RIGHT HAND, (BLACK)
-
39007B39007-Y005-945 ARM-SUSP, FRONT, UPP, LEFT HAND, (BLACK)ARM-SUSP, FRONT, UPP, LEFT HAND, (BLACK)
-
39007C39007-Y006-945 ARM-SUSP, FRONT, LWR, LEFT HAND, (BLACK)ARM-SUSP, FRONT, LWR, LEFT HAND, (BLACK)
-
3918639186-Y003 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
39186A39186-Y004 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
4501445014-Y004-935 SHOCKABSORBER, FRONT, (BLACK)SHOCKABSORBER, FRONT, (BLACK)
-
5502055020-Y007 GUARD, BRAKE DISKGUARD, BRAKE DISK
-
9204392043-Y009 PIN, 3X25PIN, 3X25
-
9204592045-Y026 BEARING-BALL, 6000BEARING-BALL, 6000
-
9204992049-Y018 SEAL-OIL, SEAL-OIL, 18X26X4SEAL-OIL, SEAL-OIL, 18X26X4
-
9215292152-Y023 COLLARCOLLAR
-
9215492154-Y038 BOLT, FLANGE, 6X10BOLT, FLANGE, 6X10
-
92154A92154-Y039 BOLT, FLANGE, 10X57BOLT, FLANGE, 10X57
-
92154B92154-Y040 BOLT, FLANGE, 10X50BOLT, FLANGE, 10X50
-
92154C92154-Y041 BOLT, FLANGE, 10X40BOLT, FLANGE, 10X40
-
9220092200-Y046 WASHER, 12X26X2.3WASHER, 12X26X2.3
-
9221092210-Y009 NUT, 10MMNUT, 10MM
-
92210A92210-Y023 NUT, 12MMNUT, 12MM
