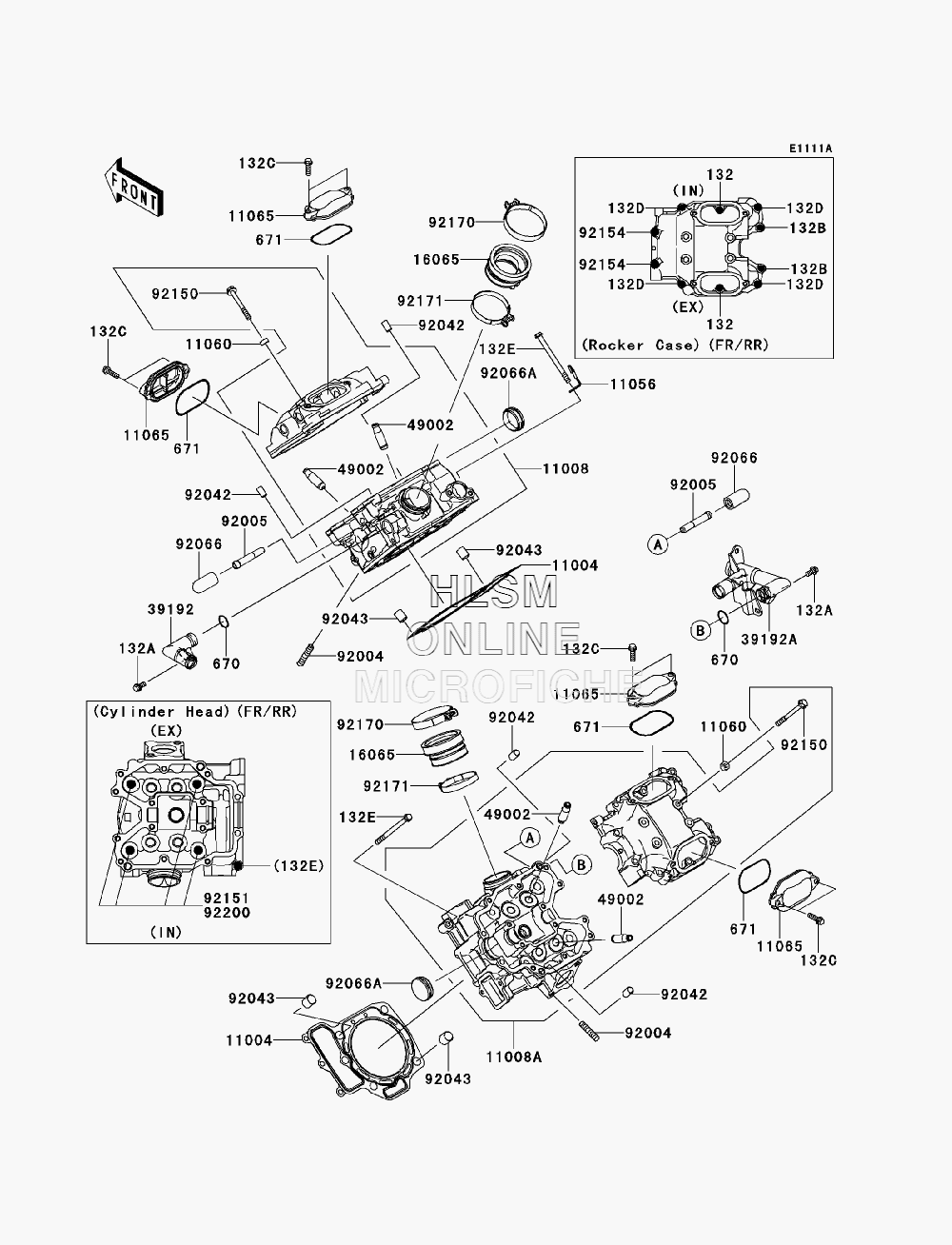

CYLINDER HEAD (VF750DE095937 AND ABOVE) для Kawasaki BRUTE FORCE 750 4X4I EPS (KVF750GDF) - 2013 года выпуска
-
№АртикулНазвание
-
132132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132A132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132B132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132C132BD0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132D132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132E132BD0695 BOLT-FLANGED-SMALL, 6X95BOLT-FLANGED-SMALL, 6X95
-
670670B2016 O RING, 16MMO RING, 16MM
-
671671D2555 O RING, 55MMO RING, 55MM
-
1100411004-0011 GASKET-HEADGASKET-HEAD
-
1100811008-0766 HEAD-COMP-CYLINDER, FRONTHEAD-COMP-CYLINDER, FRONT
-
11008A11008-0767 HEAD-COMP-CYLINDER, REARHEAD-COMP-CYLINDER, REAR
-
1105611056-1255 BRACKETBRACKET
-
1106011060-1994 GASKET, 6.2X12X0.3GASKET, 6.2X12X0.3
-
1106511065-0724 CAP, ROCKER CASECAP, ROCKER CASE
-
1606516065-0113 HOLDER-CARBURETORHOLDER-CARBURETOR
-
3919239192-0119 PIPE-WATER, FRONTPIPE-WATER, FRONT
-
39192A39192-0120 PIPE-WATER, REARPIPE-WATER, REAR
-
39192A39192-0120 PIPE-WATER, REARPIPE-WATER, REAR
-
4900249002-0706 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9200592005-1264 FITTINGFITTING
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9206692066-0713 PLUGPLUG
-
92066A92066-1289 PLUGPLUG
-
9215092150-1302 BOLT, FLANGED, 6X55BOLT, FLANGED, 6X55
-
9215192151-1917 BOLT, FLANGED, 10X150BOLT, FLANGED, 10X150
-
9215492154-0993 BOLT, FLANGED, 6X130BOLT, FLANGED, 6X130
-
9217092170-1448 CLAMPCLAMP
-
9217192171-0722 CLAMPCLAMP
-
9220092200-1128 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
