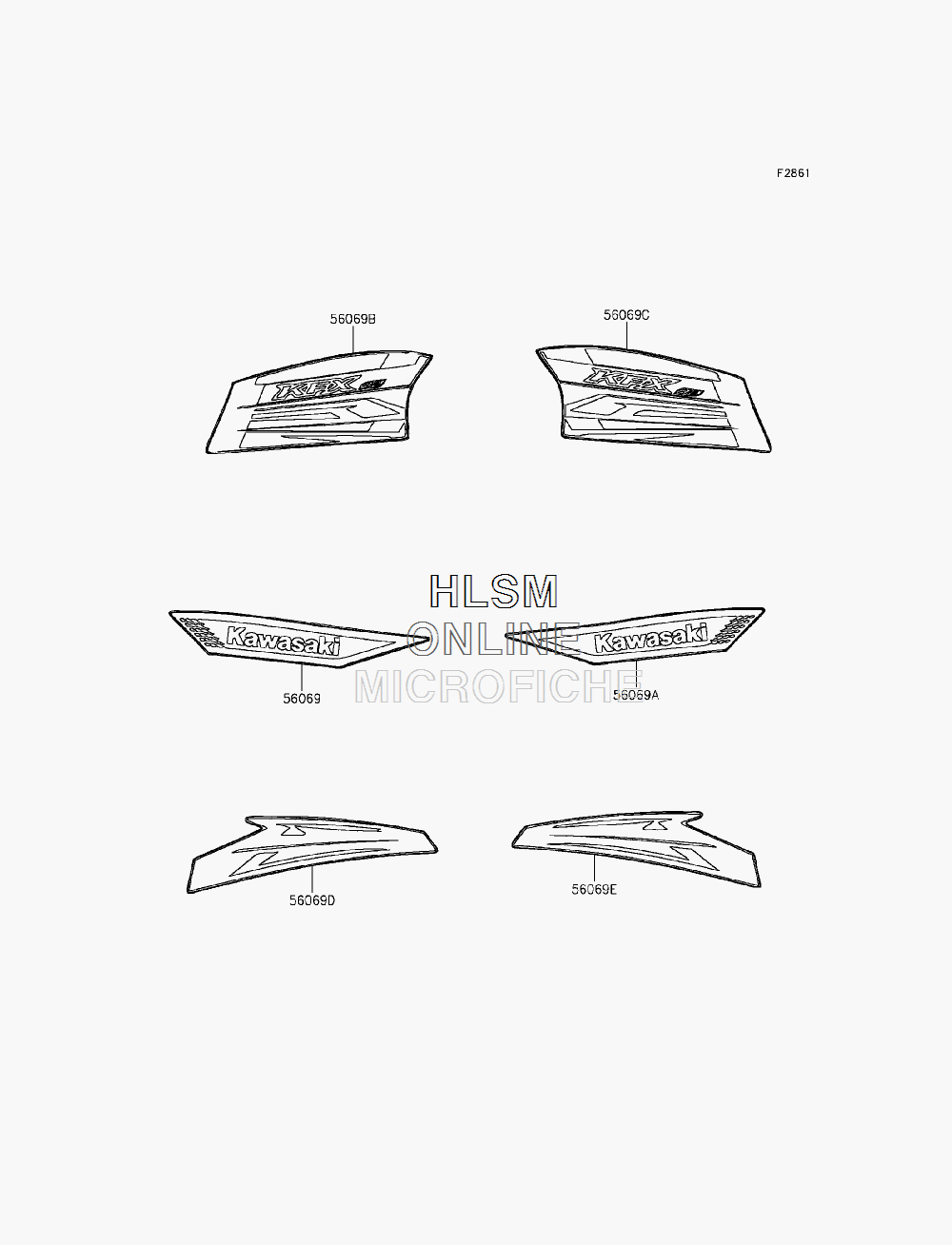

DECALS 1 для Kawasaki KFX 90 (KSF90ACF) - 2012 года выпуска
-
№АртикулНазвание
-
5606956069-Y007 PATTERN, FRONT FENDER, RIGHT HANDPATTERN, FRONT FENDER, RIGHT HAND
-
56069A56069-Y008 PATTERN, FRONT FENDER, LEFT HANDPATTERN, FRONT FENDER, LEFT HAND
-
56069B56069-Y009 PATTERN, FRONT FENDER, REAR, RIGHT HANDPATTERN, FRONT FENDER, REAR, RIGHT HAND
-
56069C56069-Y010 PATTERN, FRONT FENDER, REAR, LEFT HANDPATTERN, FRONT FENDER, REAR, LEFT HAND
-
56069D56069-Y011 PATTERN, REAR FENDER, RIGHT HANDPATTERN, REAR FENDER, RIGHT HAND
-
56069E56069-Y012 PATTERN, REAR FENDER, LEFT HANDPATTERN, REAR FENDER, LEFT HAND
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - MASTER CYLINDER - FRONT
- CARBURETOR 1
- CHASSIS ELECTRICAL EQUIPMENT
- COLOR INFO
- CRANKCASE
- CRANKSHAFT/PISTON(S)
- CYLINDER HEAD
- • DECALS 1
- DRIVE CONVERTER
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK(S)
- GENERATOR
- HANDLEBAR
- KICKSTARTER MECHANISM
- LABELS
- MANUALS
- MUFFLER(S)
- REAR HUB
- SEAT
- SECOND AIR
- STARTER MOTOR
- STEERING SHAFT
- SUSPENSION
- TAILLIGHT(S)
