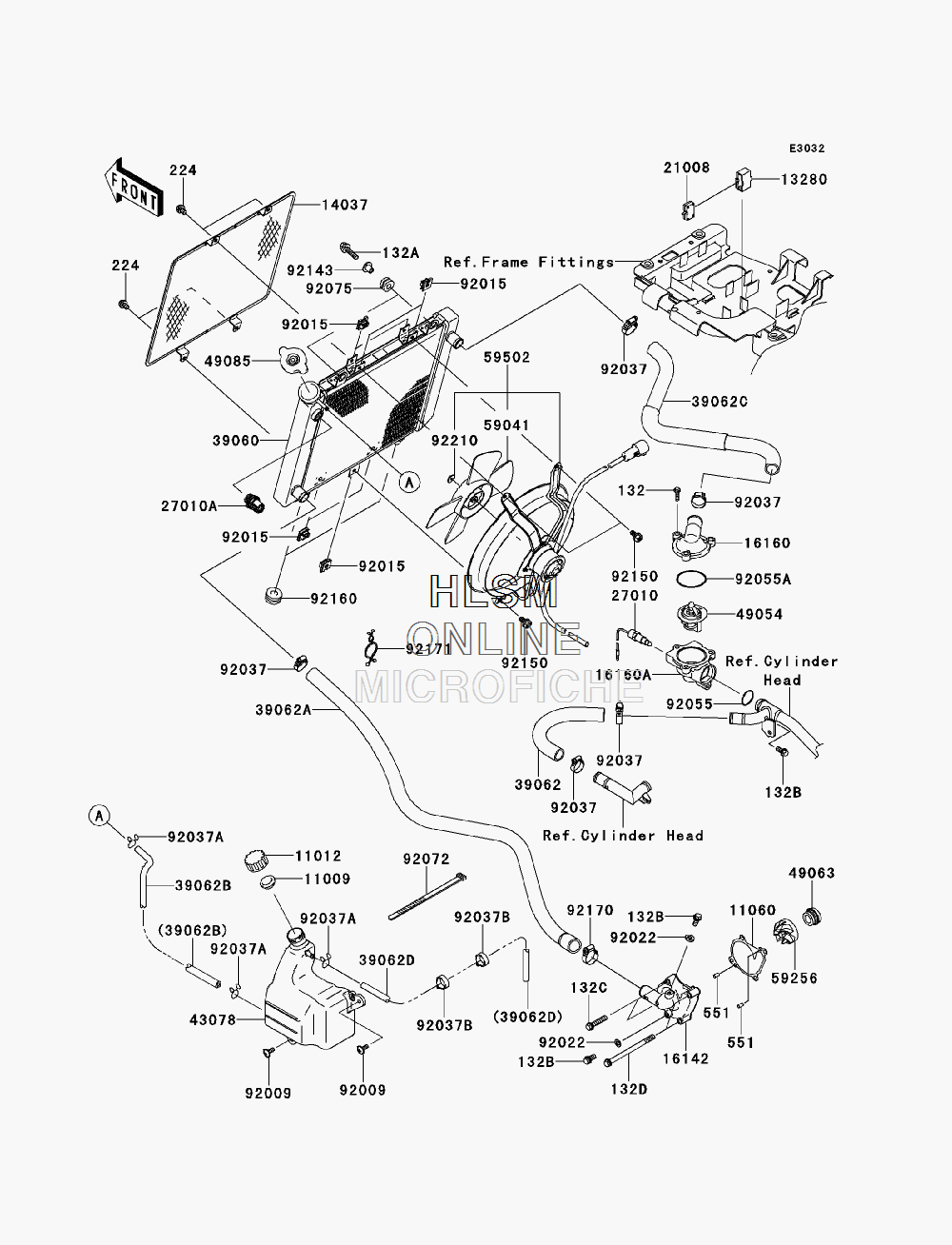

RADIATOR для Kawasaki BRUTE FORCE 650 4X4I (KVF650FCS) - 2012 года выпуска`
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1106011060-1964 GASKET, WATER PUMPGASKET, WATER PUMP
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
1403714037-0045 SCREENSCREEN
-
1614216142-0002 COVER-PUMP, WATERCOVER-PUMP, WATER
-
1616016160-0046 BODY, THERMOSTAT, UPPBODY, THERMOSTAT, UPP
-
16160A16160-0067 BODY, THERMOSTAT, LWRBODY, THERMOSTAT, LWR
-
2100821008-0002 BREAKER, CIRCUITBREAKER, CIRCUIT
-
2701027010-1346 SWITCH, SENSOR WATERSWITCH, SENSOR WATER
-
27010A27010-1443 SWITCHSWITCH
-
3906039060-0079 RADIATORRADIATOR
-
3906239062-0178 HOSE-COOLING, FRONT HEAD-THERMOHOSE-COOLING, FRONT HEAD-THERMO
-
39062A39062-0180 HOSE-COOLING, RAD-WATER PUMPHOSE-COOLING, RAD-WATER PUMP
-
39062B39062-0226 HOSE-COOLINGHOSE-COOLING
-
39062C39062-0241 HOSE-COOLING, THERMO-RADIATORHOSE-COOLING, THERMO-RADIATOR
-
39062D39062-0321 HOSE-COOLING, 5X9X800HOSE-COOLING, 5X9X800
-
4307843078-0024 RESERVOIRRESERVOIR
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5904159041-0003 FANFAN
-
5925659256-1069 IMPELLERIMPELLER
-
5950259502-0022 FAN-ASSYFAN-ASSY
-
9200992009-1694 SCREW, 6X16SCREW, 6X16
-
9201592015-1487 NUTNUT
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92037A92037-1712 CLAMPCLAMP
-
92037B92037-1827 CLAMP, HOSECLAMP, HOSE
-
9205592055-1081 RING-O, 22.1X2.4RING-O, 22.1X2.4
-
92055A92055-1279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
9207292072-030 BAND, L=123BAND, L=123
-
9207592075-209 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9216092160-1007 DAMPERDAMPER
-
9217092170-1497 CLAMPCLAMP
-
9217192171-1736 CLAMPCLAMP
-
9221092210-0258 NUTNUT
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132A132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132B132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132C132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132D132BD0690 BOLT-FLANGED-SMALL, 6X90BOLT-FLANGED-SMALL, 6X90
-
224224AB0610 SCREW-PAN-WP-CROS, 6X10SCREW-PAN-WP-CROS, 6X10
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
