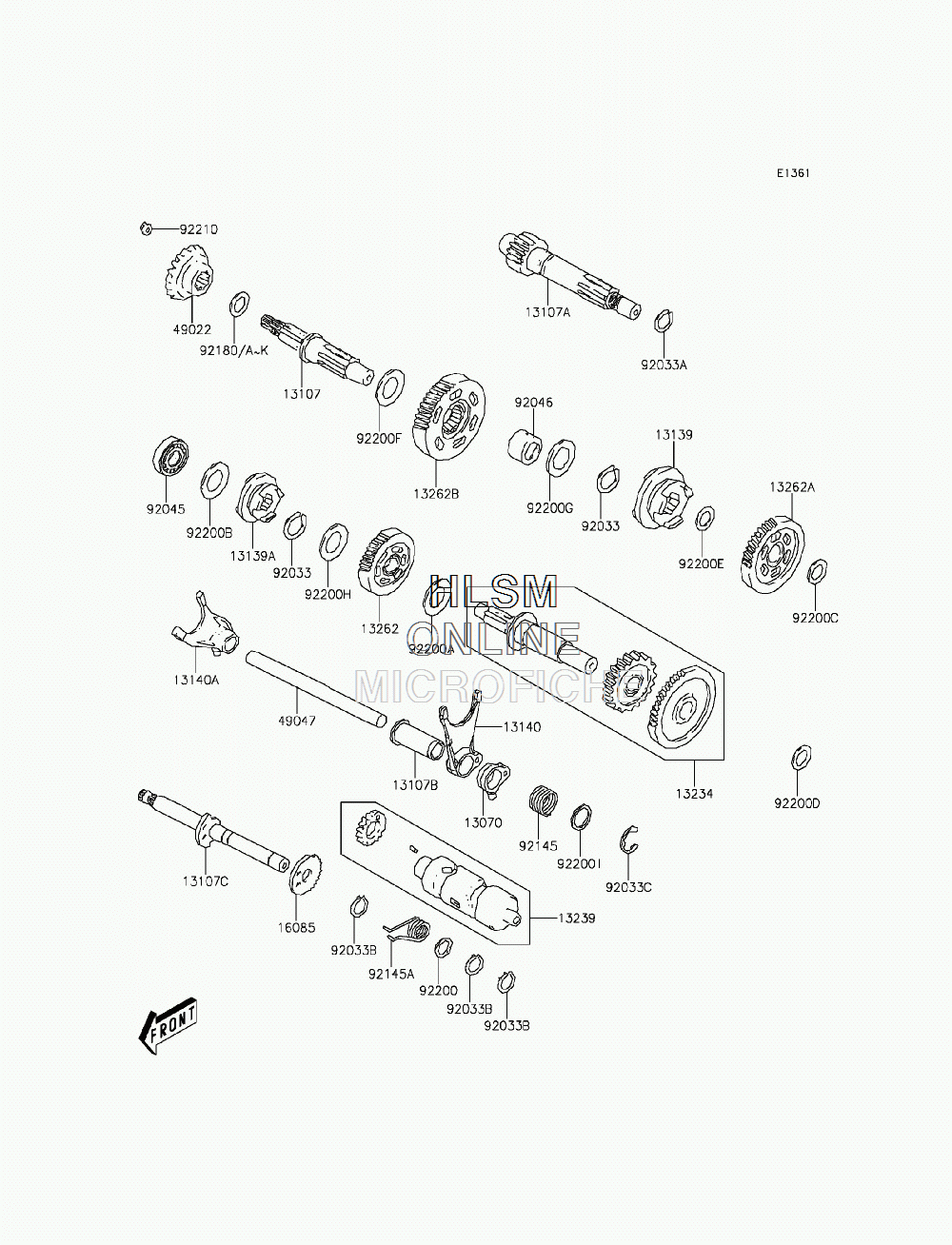

TRANSMISSION для Kawasaki BRUTE FORCE 300 (KVF300CCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 13070
    13070-Y002 GUIDE, FORK-SHIFT, RIGHT HAND
    GUIDE, FORK-SHIFT, RIGHT HAND
  • 13107
    13107-Y011 SHAFT, MAIN
    SHAFT, MAIN
  • 13107A
    13107-Y012 SHAFT, DRIVE
    SHAFT, DRIVE
  • 13107B
    13107-Y013 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 13107C
    13107-Y014 SHAFT, CHANGE DRUM
    SHAFT, CHANGE DRUM
  • 13139
    13139-Y001 SHIFTER, REVERSE & LOWER
    SHIFTER, REVERSE & LOWER
  • 13139A
    13139-Y002 SHIFTER, FORWARD
    SHIFTER, FORWARD
  • 13140
    13140-Y001 FORK-SHIFT, RIGHT HAND
    FORK-SHIFT, RIGHT HAND
  • 13140A
    13140-Y002 FORK-SHIFT, LEFT HAND
    FORK-SHIFT, LEFT HAND
  • 13234
    13234-Y003 SHAFT-COMP, COUNTER
    SHAFT-COMP, COUNTER
  • 13239
    13239-Y001 DRUM-ASSY-CHANGE
    DRUM-ASSY-CHANGE
  • 13262
    13262-Y001 GEAR, FORWARD
    GEAR, FORWARD
  • 13262A
    13262-Y002 GEAR, BACKWARD
    GEAR, BACKWARD
  • 13262B
    13262-Y003 GEAR, LOWER DRIVEN
    GEAR, LOWER DRIVEN
  • 16085
    16085-Y010 GEAR, CHANGE LEVER
    GEAR, CHANGE LEVER
  • 49022
    49022-Y003 GEAR-BEVEL, DRIVE
    GEAR-BEVEL, DRIVE
  • 49047
    49047-Y001 ROD-SHIFT
    ROD-SHIFT
  • 92033
    92033-Y022 RING-SNAP, 28MM
    RING-SNAP, 28MM
  • 92033A
    92033-Y023 RING-SNAP, 25MM
    RING-SNAP, 25MM
  • 92033B
    92033-Y024 RING-SNAP, 12MM
    RING-SNAP, 12MM
  • 92033C
    92033-Y025 RING-SNAP, 15MM
    RING-SNAP, 15MM
  • 92045
    92045-Y023 BEARING-BALL, 6303
    BEARING-BALL, 6303
  • 92046
    92046-Y006 BEARING-NEEDLE, 20X26X16
    BEARING-NEEDLE, 20X26X16
  • 92145
    92145-Y029 SPRING, DRUM
    SPRING, DRUM
  • 92145A
    92145-Y030 SPRING, RETURN
    SPRING, RETURN
  • 92180
    92180-Y013 SHIM, DRIVEN, A, T=0.6
    SHIM, DRIVEN, A, T=0.6
  • 92180A
    92180-Y014 SHIM, DRIVEN, B, T=0.65
    SHIM, DRIVEN, B, T=0.65
  • 92180B
    92180-Y015 SHIM, DRIVEN, C, T=0.7
    SHIM, DRIVEN, C, T=0.7
  • 92180C
    92180-Y016 SHIM, DRIVEN, D, T=0.75
    SHIM, DRIVEN, D, T=0.75
  • 92180D
    92180-Y017 SHIM, DRIVEN, E, T=0.8
    SHIM, DRIVEN, E, T=0.8
  • 92180E
    92180-Y018 SHIM, DRIVEN, F, T=0.85
    SHIM, DRIVEN, F, T=0.85
  • 92180F
    92180-Y019 SHIM, DRIVEN, G, T=0.9
    SHIM, DRIVEN, G, T=0.9
  • 92180G
    92180-Y020 SHIM, DRIVEN, H, T=0.95
    SHIM, DRIVEN, H, T=0.95
  • 92180H
    92180-Y021 SHIM, DRIVEN, I, T=1.0
    SHIM, DRIVEN, I, T=1.0
  • 92180I
    92180-Y022 SHIM, DRIVEN, J, T=1.05
    SHIM, DRIVEN, J, T=1.05
  • 92180J
    92180-Y023 SHIM, DRIVEN, K, T=1.1
    SHIM, DRIVEN, K, T=1.1
  • 92180K
    92180-Y024 SHIM, DRIVEN, L, T=1.15
    SHIM, DRIVEN, L, T=1.15
  • 92200
    92200-Y026 WASHER, 14X28X2
    WASHER, 14X28X2
  • 92200A
    92200-Y028 WASHER, 25MM
    WASHER, 25MM
  • 92200B
    92200-Y029 WASHER, 17.2MM
    WASHER, 17.2MM
  • 92200C
    92200-Y030 WASHER, 20MM
    WASHER, 20MM
  • 92200D
    92200-Y031 WASHER, 20MM
    WASHER, 20MM
  • 92200E
    92200-Y032 WASHER, 30X20X3
    WASHER, 30X20X3
  • 92200F
    92200-Y033 WASHER, 25MM
    WASHER, 25MM
  • 92200G
    92200-Y034 WASHER, 25MM
    WASHER, 25MM
  • 92200H
    92200-Y035 WASHER, 25X31X1.6
    WASHER, 25X31X1.6
  • 92200I
    92200-Y036 WASHER, 17X22
    WASHER, 17X22
  • 92210
    92210-Y041 NUT, 18MM
    NUT, 18MM
