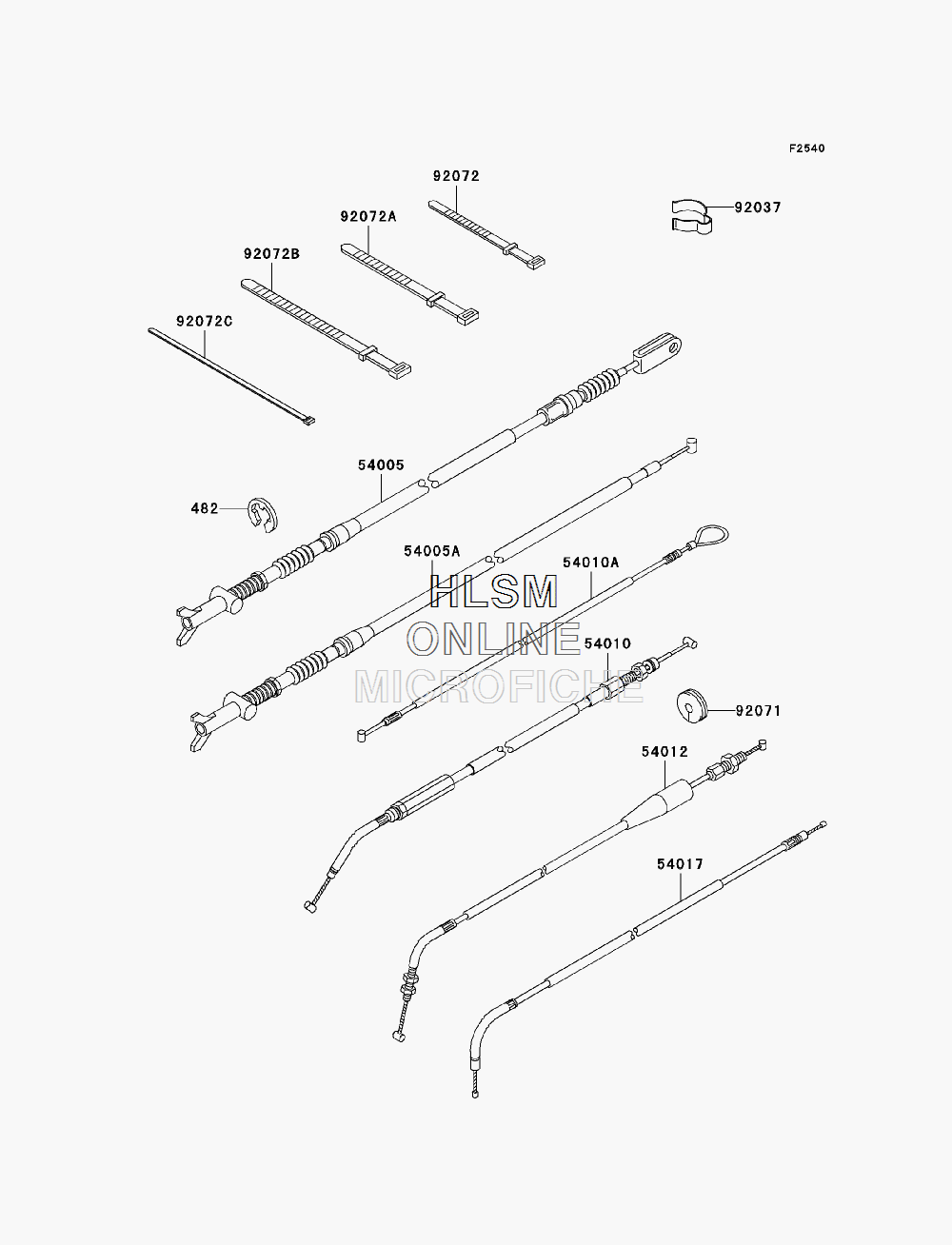

CABLES для Kawasaki PRAIRIE 360 4X4 (KVF360ABF) - 2011 года выпуска`
-
№АртикулНазвание
-
482482EA8000 CIRCLIP-TYPE-E,8MMCIRCLIP-TYPE-E,8MM
-
5400554005-0019 CABLE-BRAKE, REARCABLE-BRAKE, REAR
-
54005A54005-0020 CABLE-BRAKE,PARKINGCABLE-BRAKE,PARKING
-
5401054010-0067 CABLE, FRONT DIFF LOCKCABLE, FRONT DIFF LOCK
-
54010A54010-7501 CABLE,SEAT HOOKCABLE,SEAT HOOK
-
5401254012-0205 CABLE-THROTTLECABLE-THROTTLE
-
5401754017-0036 CABLE-STARTERCABLE-STARTER
-
9203792037-1092 CLAMP,AIR VENT TUBECLAMP,AIR VENT TUBE
-
9207192071-1058 GROMMET,SENSOR LEADGROMMET,SENSOR LEAD
-
9207292072-030 BAND,L=123BAND,L=123
-
92072A92072-031 BAND,L=149BAND,L=149
-
92072B92072-056 BAND,L=186BAND,L=186
-
92072C92072-1239 BAND,L=188BAND,L=188
