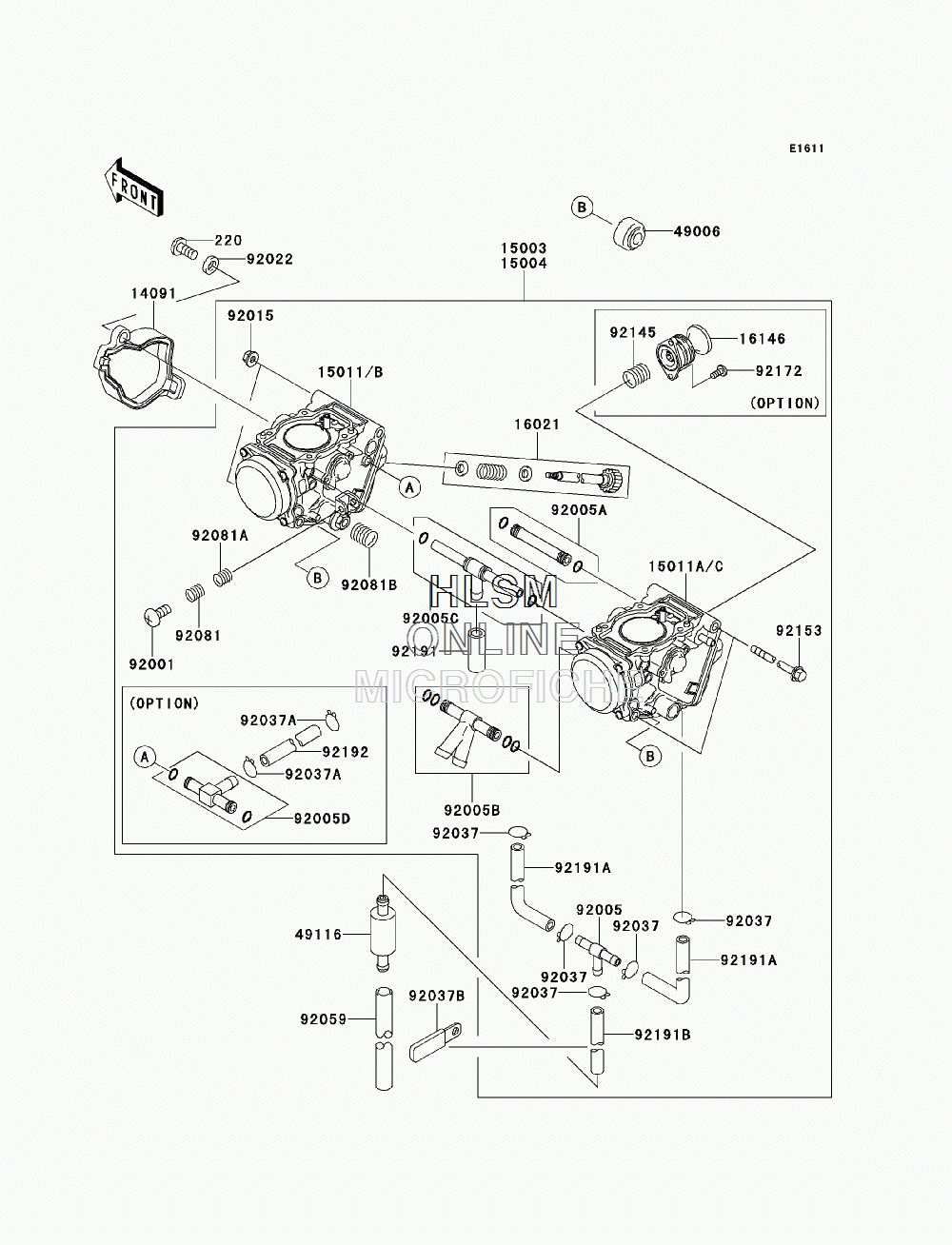

CARBURETOR (USA ONLY) для Kawasaki BRUTE FORCE 650 4X4 (KVF650DBF) - 2011 года выпуска
-
№АртикулНазвание
-
1409114091-1196 COVER, THROTTLE CABLE (USA ONLY)COVER, THROTTLE CABLE (USA ONLY)
-
1500315003-0095 CARBURETOR-ASSY (USA ONLY)CARBURETOR-ASSY (USA ONLY)
-
1500415004-0037 CARBURETOR-ASSY, CVKR32 (USA ONLY) (OPTION)CARBURETOR-ASSY, CVKR32 (USA ONLY) (OPTION)
-
1501115011-0100 CARBURETOR, FRONT (USA ONLY)CARBURETOR, FRONT (USA ONLY)
-
15011A15011-0101 CARBURETOR, REAR (USA ONLY)CARBURETOR, REAR (USA ONLY)
-
15011B15011-0116 CARBURETOR, FRONT (USA ONLY) (OPTION)CARBURETOR, FRONT (USA ONLY) (OPTION)
-
15011C15011-0117 CARBURETOR, REAR (USA ONLY) (OPTION)CARBURETOR, REAR (USA ONLY) (OPTION)
-
1602116021-1238 SCREW-THROTTLE STOP (USA ONLY)SCREW-THROTTLE STOP (USA ONLY)
-
1614616146-1225 COVER-ASSY, PRIMING (USA ONLY) (OPTION)COVER-ASSY, PRIMING (USA ONLY) (OPTION)
-
4900649006-1353 BOOT, STARTER CABLE (USA ONLY)BOOT, STARTER CABLE (USA ONLY)
-
4911649116-1126 VALVE-ASSY (USA ONLY)VALVE-ASSY (USA ONLY)
-
9200192001-1998 BOLT, THROTTLE ADJUST (USA ONLY)BOLT, THROTTLE ADJUST (USA ONLY)
-
9200592005-1112 FITTING, FUEL, T-TYPE (USA ONLY)FITTING, FUEL, T-TYPE (USA ONLY)
-
92005A92005-1375 FITTING (USA ONLY)FITTING (USA ONLY)
-
92005B92005-1376 FITTING (USA ONLY)FITTING (USA ONLY)
-
92005C92005-1385 FITTING (USA ONLY)FITTING (USA ONLY)
-
92005D92005-1393 FITTING (USA ONLY) (OPTION)FITTING (USA ONLY) (OPTION)
-
220220AA0408 SCREW-PAN-CROS, 4X8 (USA ONLY)SCREW-PAN-CROS, 4X8 (USA ONLY)
-
9201592015-1259 NUT, FLANGED, 5MM (USA ONLY)NUT, FLANGED, 5MM (USA ONLY)
-
9202292022-1380 WASHER, 5.2X13X1 (USA ONLY)WASHER, 5.2X13X1 (USA ONLY)
-
9203792037-1201 CLAMP, TUBE (USA ONLY)CLAMP, TUBE (USA ONLY)
-
92037A92037-1201 CLAMP, TUBE (USA ONLY) (OPTION)CLAMP, TUBE (USA ONLY) (OPTION)
-
92037B92037-1539 CLAMP, L=45 (USA ONLY)CLAMP, L=45 (USA ONLY)
-
9205992059-1736 TUBE, 7X10X100 (USA ONLY)TUBE, 7X10X100 (USA ONLY)
-
9208192081-1620 SPRING (USA ONLY)SPRING (USA ONLY)
-
92081A92081-1621 SPRING, THROTTLE ADJUST LWR (USA ONLY)SPRING, THROTTLE ADJUST LWR (USA ONLY)
-
92081B92081-1622 SPRING, THROTTLE ADJUST CNT (USA ONLY)SPRING, THROTTLE ADJUST CNT (USA ONLY)
-
9214592145-1451 SPRING, PRIMING (USA ONLY) (OPTION)SPRING, PRIMING (USA ONLY) (OPTION)
-
9215392153-1068 BOLT, 5X143 (USA ONLY)BOLT, 5X143 (USA ONLY)
-
9217292172-0230 SCREW (USA ONLY) (OPTION)SCREW (USA ONLY) (OPTION)
-
9219192191-1672 TUBE, 7X11X25 (USA ONLY)TUBE, 7X11X25 (USA ONLY)
-
92191A92191-1673 TUBE, 4.5X8X65 (USA ONLY)TUBE, 4.5X8X65 (USA ONLY)
-
92191B92191-1674 TUBE, 4.5X8X420 (USA ONLY)TUBE, 4.5X8X420 (USA ONLY)
-
9219292192-0605 TUBE, 4.5X8.5X3.5 (USA ONLY) (OPTION)TUBE, 4.5X8.5X3.5 (USA ONLY) (OPTION)
