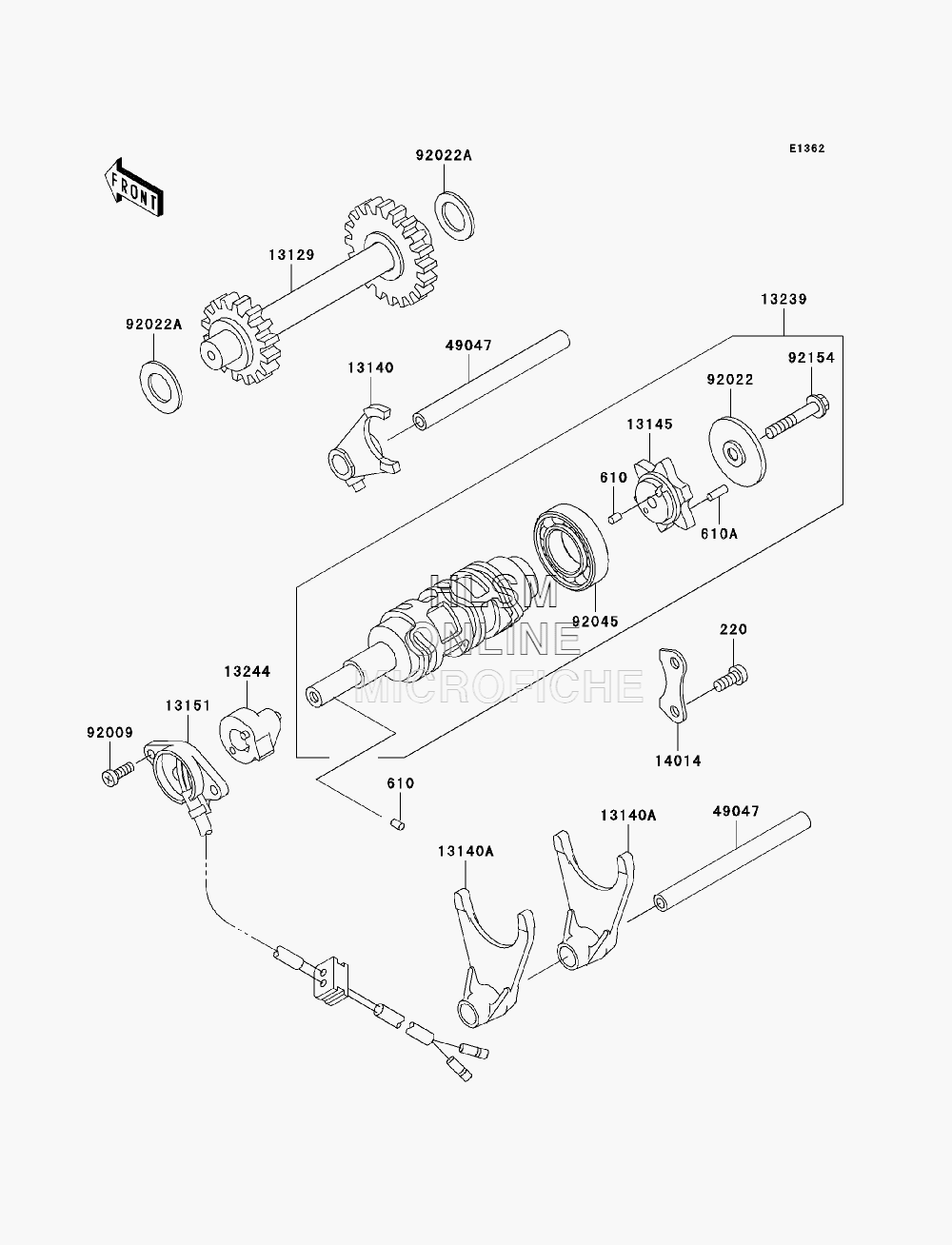

GEAR CHANGE DRUM/SHIFT FORK(S) для Kawasaki BAYOU 250 (KLF250ABF) - 2011 года выпуска
-
№АртикулНазвание
-
220220AA0614 SCREW - PAN - CROSS, 6X14SCREW - PAN - CROSS, 6X14
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
610A610A0412 ROLLER, 4X12ROLLER, 4X12
-
1312913129-1870 GEAR, REVERSE, 22T & 27TGEAR, REVERSE, 22T & 27T
-
1314013140-1161 FORK - SHIFTFORK - SHIFT
-
13140A13140-1162 FORK - SHIFTFORK - SHIFT
-
1314513145-1064 CAM - CHANGE DRUMCAM - CHANGE DRUM
-
1315113151-1067 SWITCH - COMP, NEUTRALSWITCH - COMP, NEUTRAL
-
1323913239-1145 DRUM - ASSY - CHANGEDRUM - ASSY - CHANGE
-
1324413244-1056 STOPPER - ASSY, RELERSESTOPPER - ASSY, RELERSE
-
1401414014-1087 PLATE - POSITIONPLATE - POSITION
-
4904749047-1073 ROD - SHIFTROD - SHIFT
-
9200992009-1341 SCREW, 5X14SCREW, 5X14
-
9202292022-1886 WASHER, CHANGE DRUMWASHER, CHANGE DRUM
-
92022A92022-279 WASHER, 15.3X25X1WASHER, 15.3X25X1
-
9204592045-0077 BEARING - BALL, #6005BEARING - BALL, #6005
-
9215492154-0274 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
