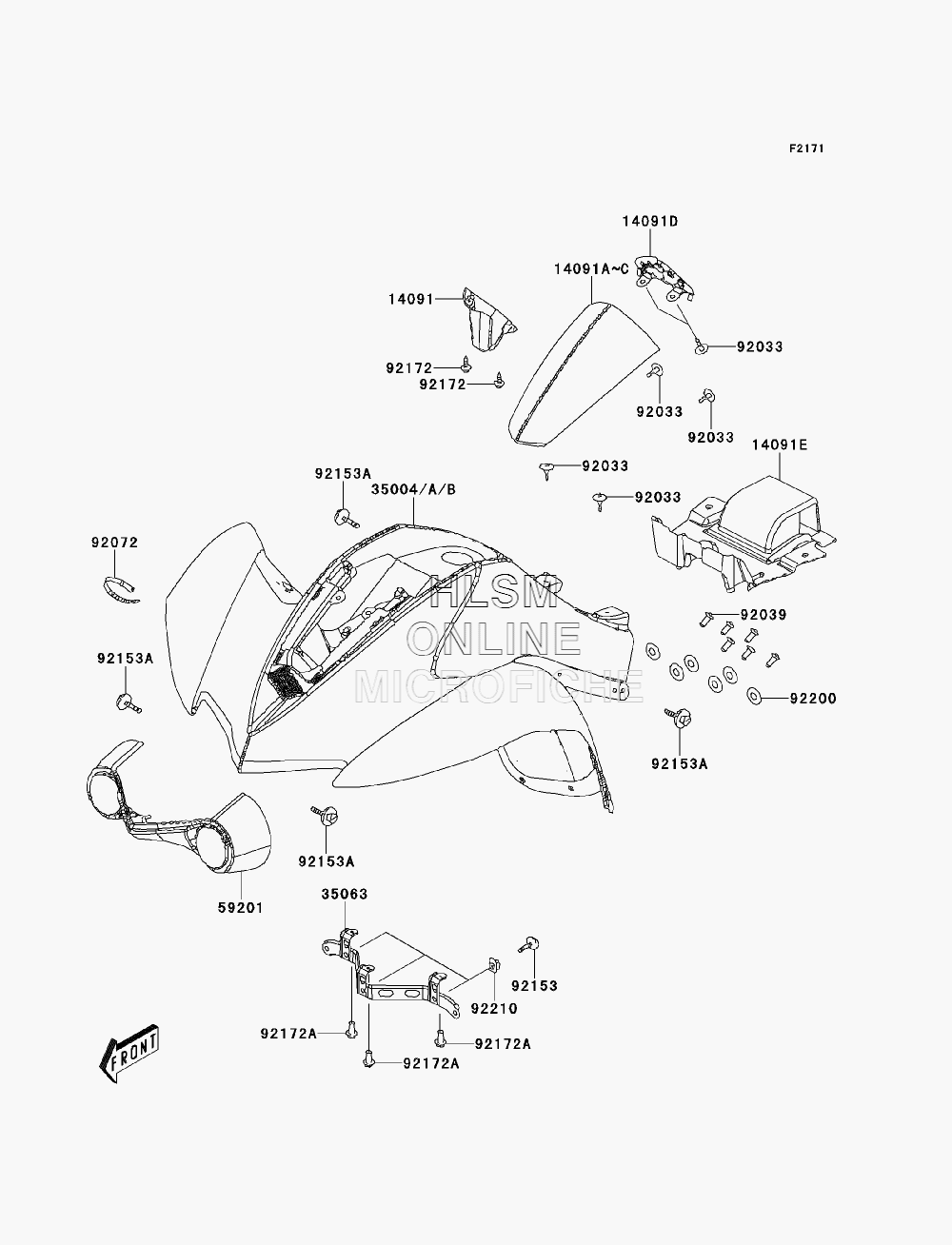

FENDER - FRONT для Kawasaki KFX 90 (KSF90AAF) - 2010 года выпуска`
-
№АртикулНазвание
-
1409114091-Y006-933 COVER, MAIN SWITCH, (BLACK)COVER, MAIN SWITCH, (BLACK)
-
14091A14091-Y007-932 COVER, FRONT, (WHITE)COVER, FRONT, (WHITE)
-
14091C14091-Y007-939 COVER, FRONT, (S.RED) (USA ONLY) (FOR 932)COVER, FRONT, (S.RED) (USA ONLY) (FOR 932)
-
14091D14091-Y008-933 COVER, CENTER, (BLACK)COVER, CENTER, (BLACK)
-
14091E14091-Y013-933 COVER, INNER, (BLACK)COVER, INNER, (BLACK)
-
3500435004-Y001-930 FENDER-FRONT, (GREEN)FENDER-FRONT, (GREEN)
-
35004A35004-Y001-932 FENDER-FRONT, (WHITE) (FOR 932)FENDER-FRONT, (WHITE) (FOR 932)
-
3506335063-Y003 STAY, FRONT FENDERSTAY, FRONT FENDER
-
5920159201-Y001-933 BUMPER, FRONT, (BLACK)BUMPER, FRONT, (BLACK)
-
9203392033-Y010 RIVETRIVET
-
9203992039-Y001 RIVET, 3.2X9.8RIVET, 3.2X9.8
-
9207292072-Y003 BANDBAND
-
9215392153-Y013 BOLT, 5X16BOLT, 5X16
-
92153A92153-Y018 BOLT, 6X16BOLT, 6X16
-
9217292172-Y019 SCREW, 4X12SCREW, 4X12
-
92172A92172-Y020 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9220092200-Y017 WASHER, 3MMWASHER, 3MM
-
9221092210-Y016 NUT, 5MMNUT, 5MM
