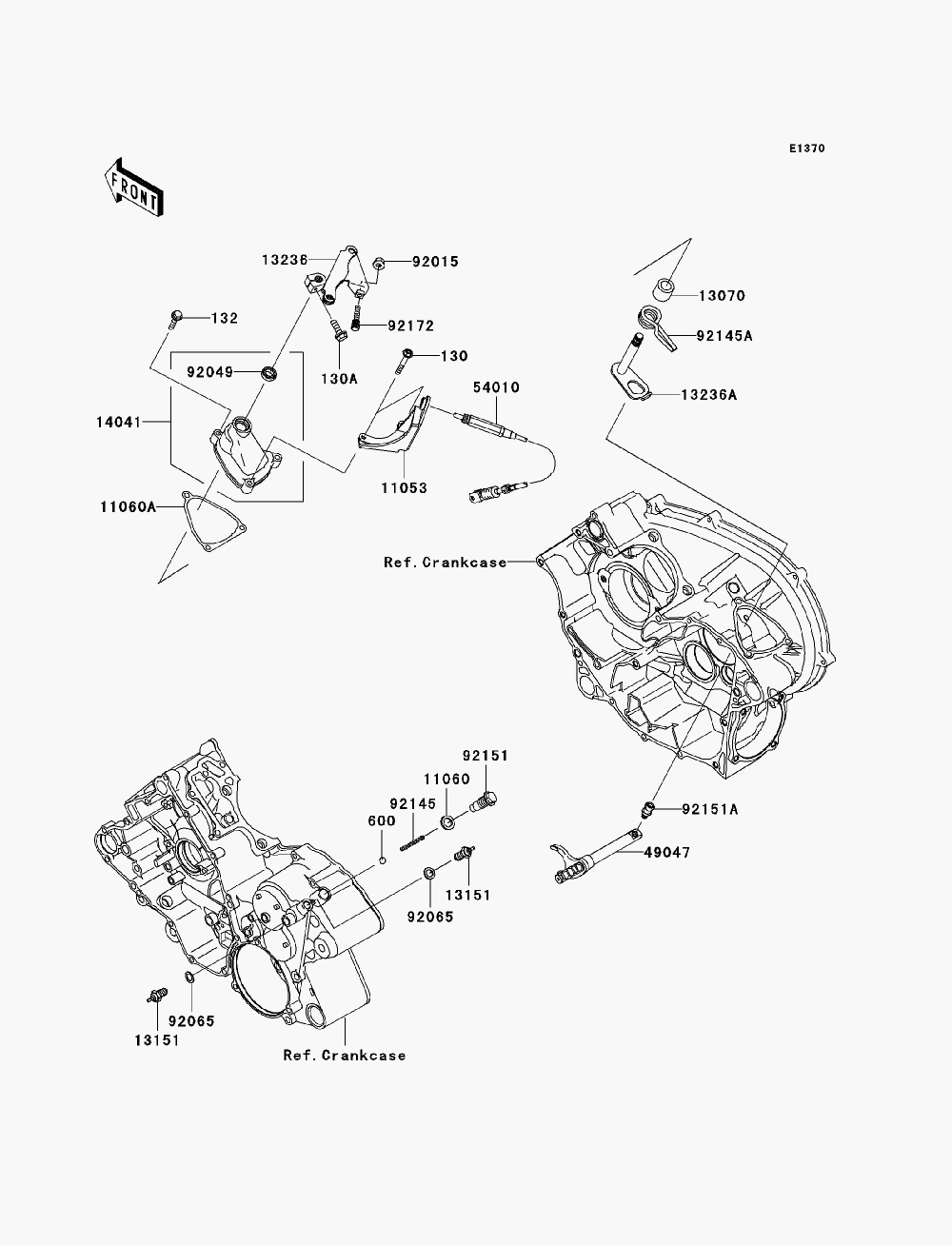

GEAR CHANGE MECHANISM для Kawasaki KFX700 (KSV700B9F) - 2009 года выпуска`
-
№АртикулНазвание
-
130130BD0635 BOLT-FLANGED,6X35BOLT-FLANGED,6X35
-
130A130CD0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
132132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
600600A1000 BALL-STEEL,5/16"BALL-STEEL,5/16"
-
1105311053-0104 BRACKET, REVERSE CABLEBRACKET, REVERSE CABLE
-
1106011060-1287 GASKET,14X20X2GASKET,14X20X2
-
11060A11060-1956 GASKET,CHANGE LEVER COVERGASKET,CHANGE LEVER COVER
-
1307013070-1352 GUIDEGUIDE
-
1315113151-1080 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
1323613236-0031 LEVER-COMP,CHANGE SHIFTLEVER-COMP,CHANGE SHIFT
-
13236A13236-0051 LEVER-COMP,CHANGELEVER-COMP,CHANGE
-
1404114041-1136 COVER-COMP,CHANGE LEVERCOVER-COMP,CHANGE LEVER
-
4904749047-1104 ROD-SHIFTROD-SHIFT
-
5401054010-0005 CABLE, REVERSE LOCKCABLE, REVERSE LOCK
-
9201592015-1193 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9204992049-1271 SEAL-OIL,TB12205.5SEAL-OIL,TB12205.5
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9214592145-1297 SPRING,CHANGE POSITIONSPRING,CHANGE POSITION
-
92145A92145-1299 SPRING,CHANGE LEVERSPRING,CHANGE LEVER
-
9215192151-1687 BOLT,CHANGE POSITIONBOLT,CHANGE POSITION
-
92151A92151-1699 BOLT,SHIFT RODBOLT,SHIFT ROD
-
9217292172-0058 SCREW,6X25SCREW,6X25
