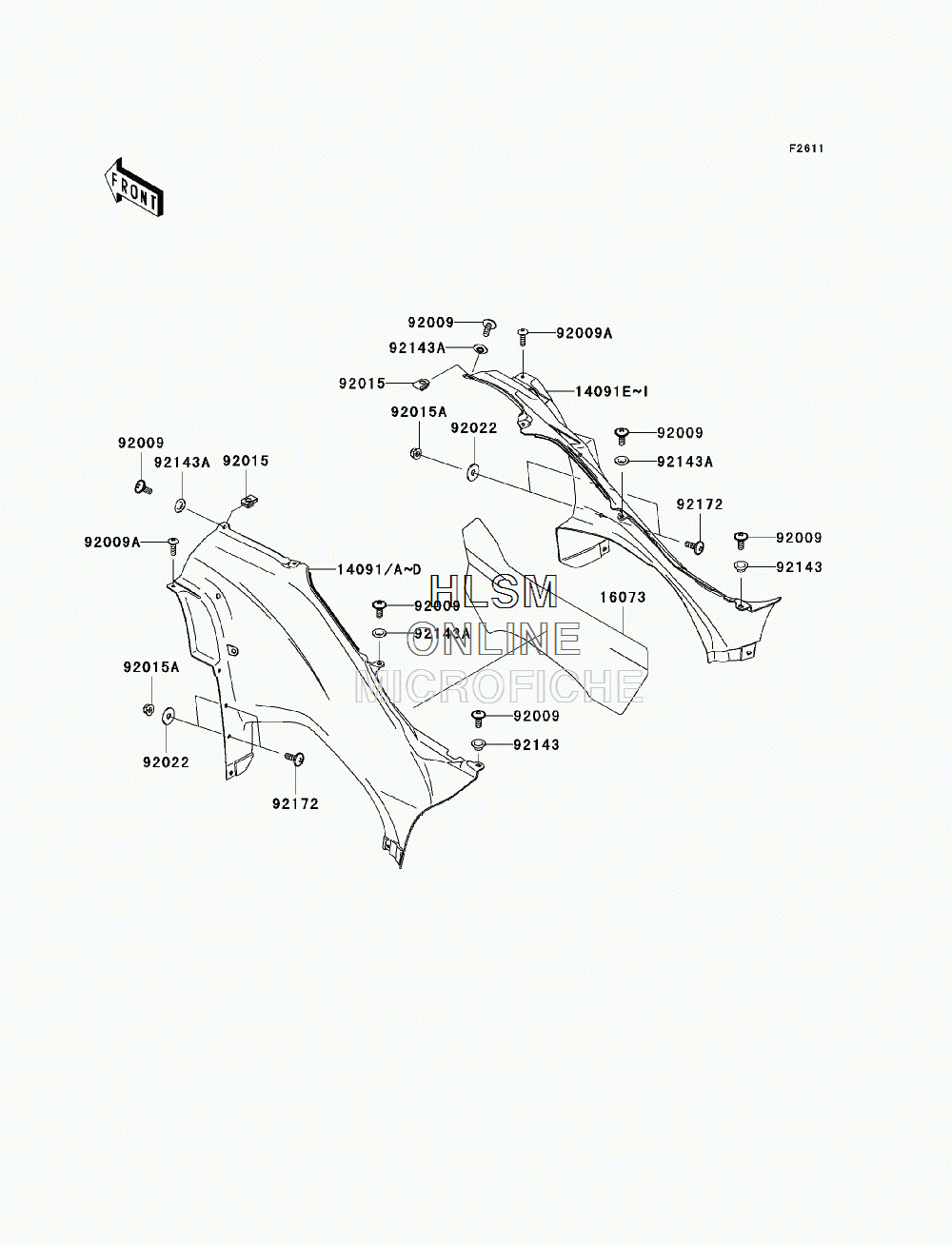

SIDE COVERS для Kawasaki BRUTE FORCE 750 4X4I (KVF750D9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 14091
    14091-0137-16L COVER,SIDE, LEFT HAND,D.R.RED (FOR 16L)
    COVER,SIDE, LEFT HAND,D.R.RED (FOR 16L)
  • 14091A
    14091-0137-286 COVER,SIDE, LEFT HAND,W.GREEN (FOR 286)
    COVER,SIDE, LEFT HAND,W.GREEN (FOR 286)
  • 14091B
    14091-0137-290 COVER,SIDE, LEFT HAND,L.GREEN (FOR 777)
    COVER,SIDE, LEFT HAND,L.GREEN (FOR 777)
  • 14091C
    14091-0137-6B COVER,SIDE, LEFT HAND,S.RED (FOR 6B)
    COVER,SIDE, LEFT HAND,S.RED (FOR 6B)
  • 14091D
    14091-0137-839 COVER,SIDE, LEFT HAND,BLACK (FOR 839)
    COVER,SIDE, LEFT HAND,BLACK (FOR 839)
  • 14091E
    14091-0138-16L COVER,SIDE, RIGHT HAND,D.R.RED (FOR 16L)
    COVER,SIDE, RIGHT HAND,D.R.RED (FOR 16L)
  • 14091F
    14091-0138-286 COVER,SIDE, RIGHT HAND,W.GREEN (FOR 286)
    COVER,SIDE, RIGHT HAND,W.GREEN (FOR 286)
  • 14091G
    14091-0138-290 COVER,SIDE, RIGHT HAND,L.GREEN (FOR 777)
    COVER,SIDE, RIGHT HAND,L.GREEN (FOR 777)
  • 14091H
    14091-0138-6B COVER,SIDE, RIGHT HAND,S.RED (FOR 6B)
    COVER,SIDE, RIGHT HAND,S.RED (FOR 6B)
  • 14091I
    14091-0138-839 COVER,SIDE, RIGHT HAND,BLACK (FOR 839)
    COVER,SIDE, RIGHT HAND,BLACK (FOR 839)
  • 16073
    16073-0030 INSULATOR,SIDE COVER
    INSULATOR,SIDE COVER
  • 92009
    92009-1621 SCREW,6X16
    SCREW,6X16
  • 92009A
    92009-1655 SCREW,5X18
    SCREW,5X18
  • 92015
    92015-1602 NUT,6MM
    NUT,6MM
  • 92015A
    92015-1603 NUT,LOCK,FLANGED,6MM
    NUT,LOCK,FLANGED,6MM
  • 92022
    92022-1346 WASHER,6.5X20X1.6,BLACK
    WASHER,6.5X20X1.6,BLACK
  • 92143
    92143-1057 COLLAR
    COLLAR
  • 92143A
    92143-1087 COLLAR
    COLLAR
  • 92172
    92172-0002 SCREW,6X18
    SCREW,6X18
