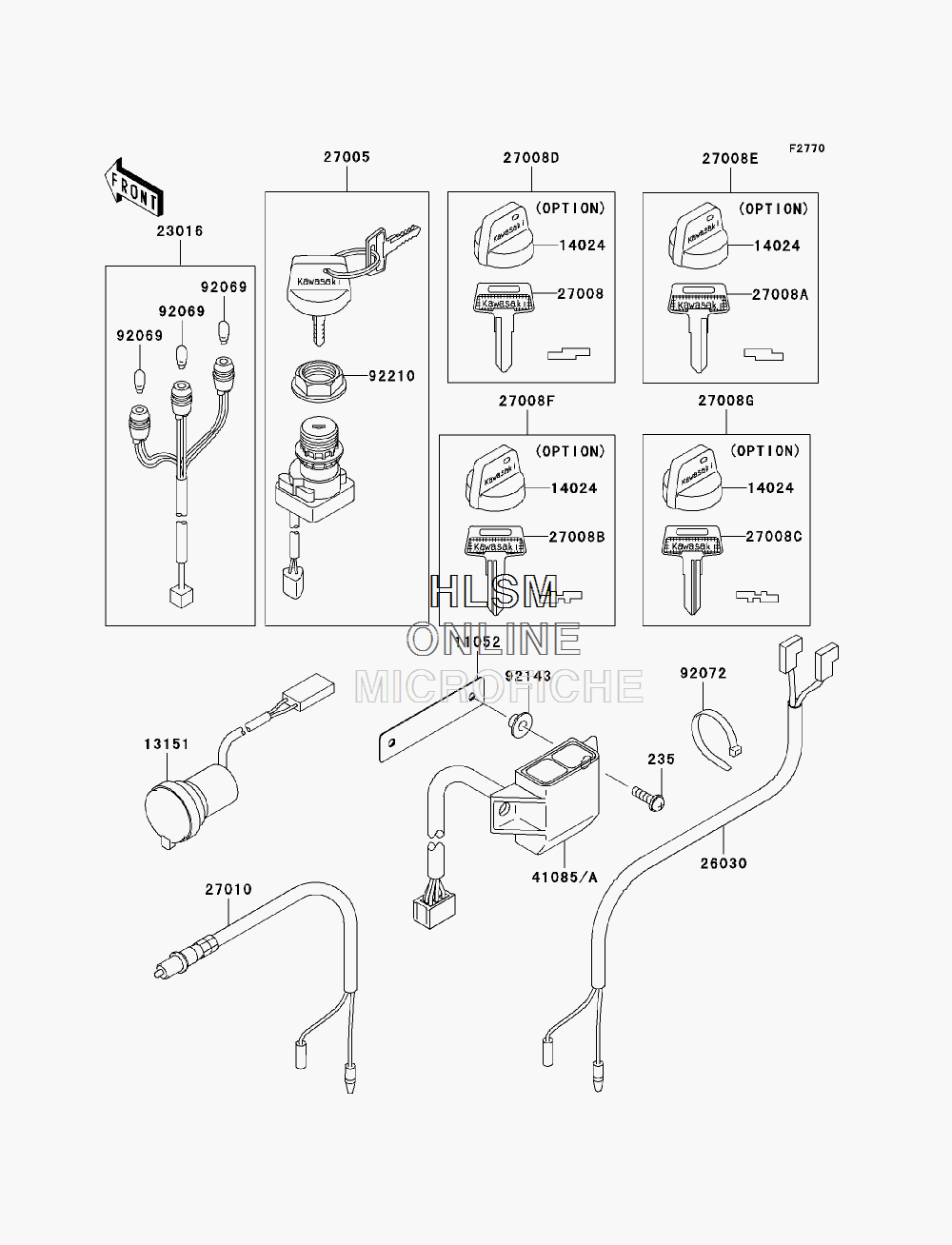

IGNITION SWITCH для Kawasaki PRAIRIE 360 4X4 (KVF360A8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 235
    235AB0516 SCREW-PAN-WP-CROS,5X16
    SCREW-PAN-WP-CROS,5X16
  • 11052
    11052-7530 BRACKET
    BRACKET
  • 13151
    13151-0004 SWITCH-COMP,D.C.TERMINAL
    SWITCH-COMP,D.C.TERMINAL
  • 14024
    14024-1551 COVER,KEY (OPTION)
    COVER,KEY (OPTION)
  • 23016
    23016-1151 LAMP-ASSY
    LAMP-ASSY
  • 26030
    26030-1058 HARNESS
    HARNESS
  • 27005
    27005-1229 SWITCH-ASSY-IGNITION
    SWITCH-ASSY-IGNITION
  • 27008
    27008-1041 KEY-LOCK,BLANK (OPTION)
    KEY-LOCK,BLANK (OPTION)
  • 27008A
    27008-1042 KEY-LOCK,BLANK (OPTION)
    KEY-LOCK,BLANK (OPTION)
  • 27008B
    27008-1043 KEY-LOCK,BLANK (OPTION)
    KEY-LOCK,BLANK (OPTION)
  • 27008C
    27008-1044 KEY-LOCK,BLANK (OPTION)
    KEY-LOCK,BLANK (OPTION)
  • 27008D
    27008-1132 KEY-LOCK,BLANK,W/COVER (OPTION)
    KEY-LOCK,BLANK,W/COVER (OPTION)
  • 27008E
    27008-1133 KEY-LOCK,BLANK,W/COVER (OPTION)
    KEY-LOCK,BLANK,W/COVER (OPTION)
  • 27008F
    27008-1134 KEY-LOCK,BLANK,W/COVER (OPTION)
    KEY-LOCK,BLANK,W/COVER (OPTION)
  • 27008G
    27008-1135 KEY-LOCK,BLANK,W/COVER (OPTION)
    KEY-LOCK,BLANK,W/COVER (OPTION)
  • 27010
    27010-1294 SWITCH,BRAKE
    SWITCH,BRAKE
  • 41085A
    41085-0004 INDICATOR
    INDICATOR
  • 92069
    92069-1020 BULB,12V 3W,T7
    BULB,12V 3W,T7
  • 92072
    92072-031 BAND,L=149
    BAND,L=149
  • 92143
    92143-1057 COLLAR
    COLLAR
  • 92210
    92210-1109 NUT,IGNITION SWITCH
    NUT,IGNITION SWITCH
