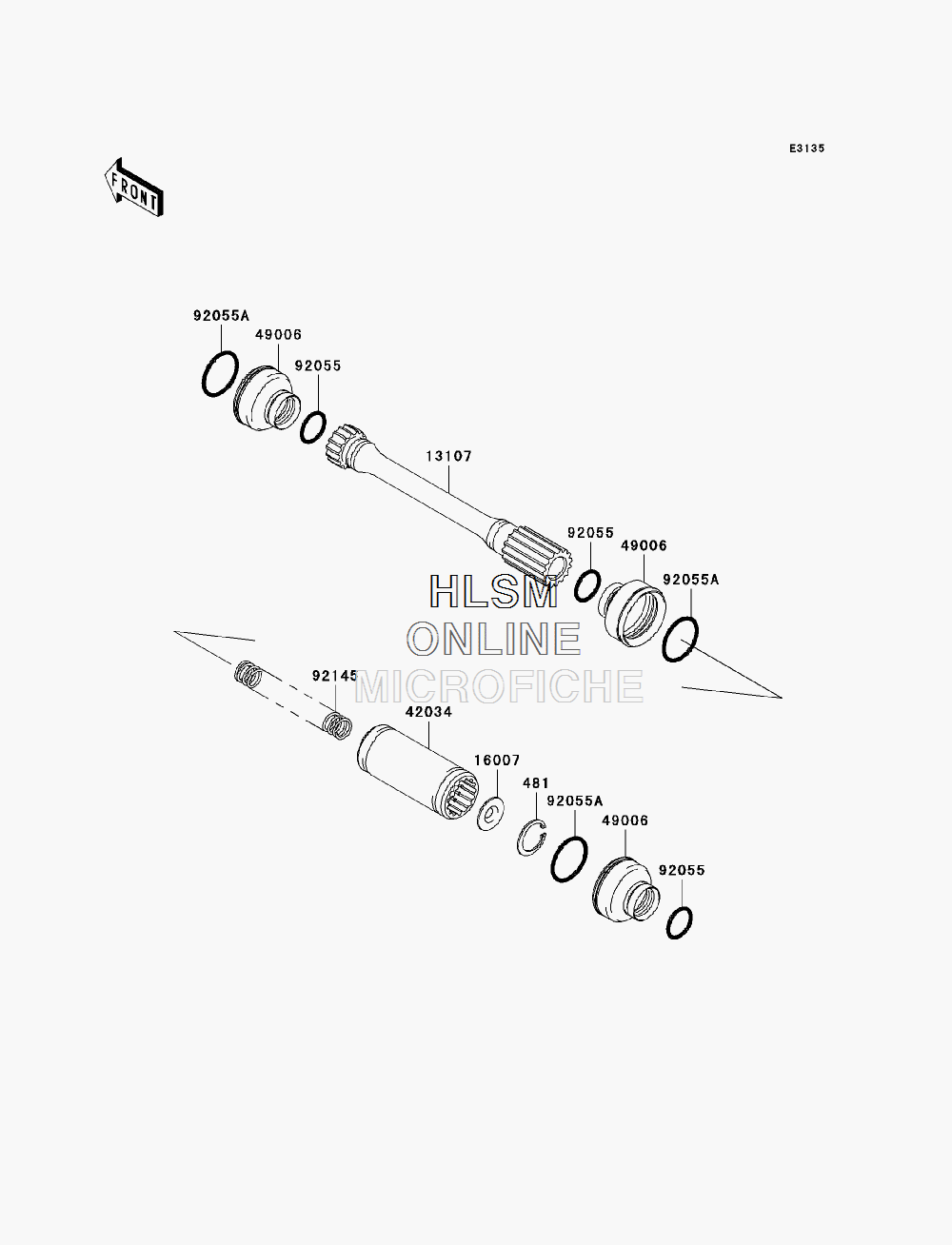

DRIVE SHAFT- PROPELLER для Kawasaki BRUTE FORCE 750 4X4I NRA OUTDOORS (KVF750E8FA) - 2008 года выпуска
-
№АртикулНазвание
-
481481J2500 CIRCLIP-TYPE-C,25MMCIRCLIP-TYPE-C,25MM
-
1310713107-1505 SHAFT, FRONT PROPELLER SHAFTSHAFT, FRONT PROPELLER SHAFT
-
1600716007-1205 SEAT-SPRING,PROPELLER SHAFTSEAT-SPRING,PROPELLER SHAFT
-
4203442034-1193 COUPLING,PROPELLERCOUPLING,PROPELLER
-
4900649006-1362 BOOTBOOT
-
9205592055-1633 RING-O,18X24X3RING-O,18X24X3
-
92055A92055-1693 RING-O,30X35X2.5RING-O,30X35X2.5
-
9214592145-1304 SPRING,PROPELLER SHAFTSPRING,PROPELLER SHAFT
