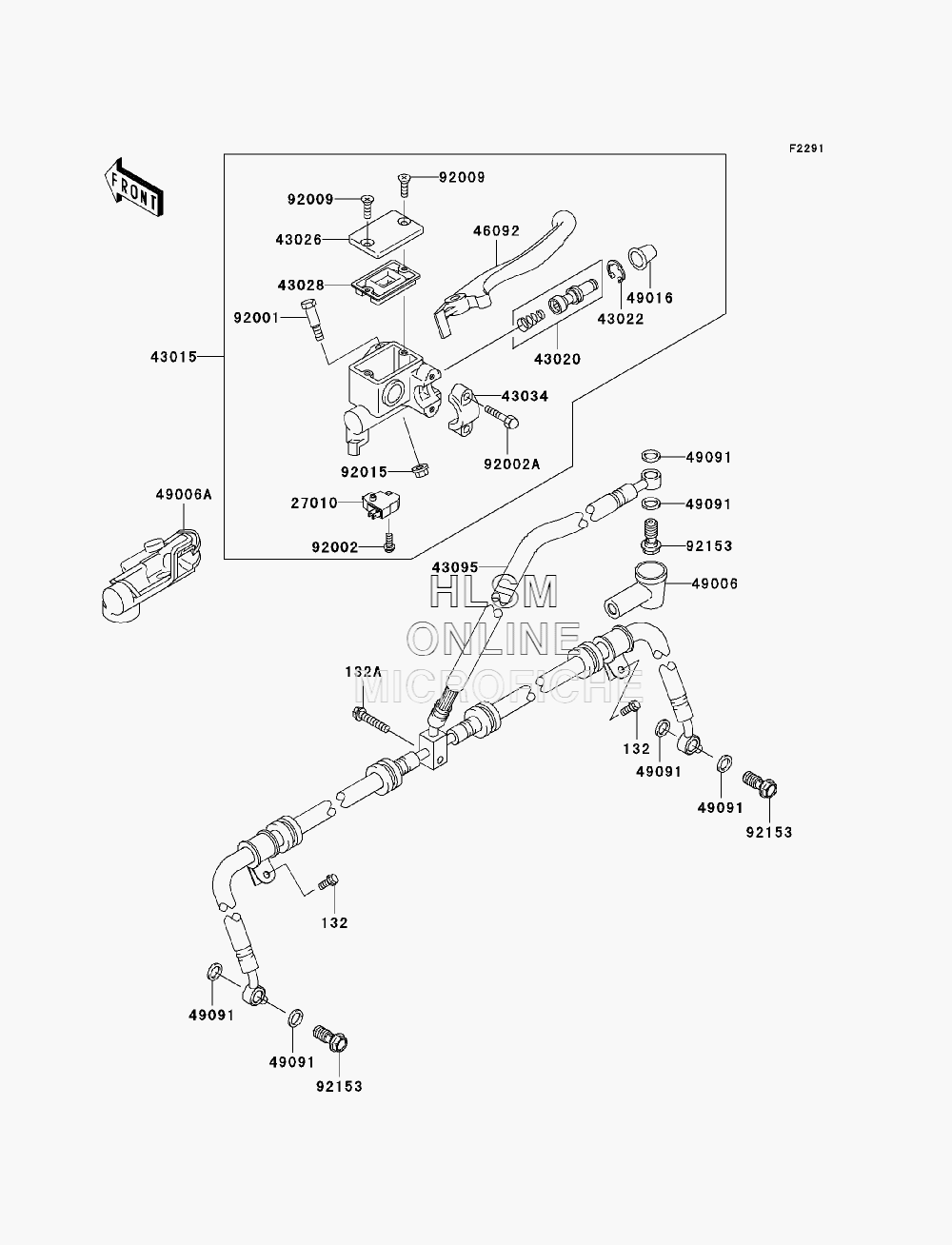

BRAKE - MASTER CYLINDER - FRONT для Kawasaki BRUTE FORCE 750 4X4I (KVF750F8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 132
    132BB0512 BOLT - FLANGED - SMALL, 5X12
    BOLT - FLANGED - SMALL, 5X12
  • 132A
    132BB0630 BOLT - FLANGED - SMALL, 6X30
    BOLT - FLANGED - SMALL, 6X30
  • 27010
    27010-0025 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-0036 CYLINDER - ASSY - MASTER, FRONT
    CYLINDER - ASSY - MASTER, FRONT
  • 43020
    43020-1054 PISTON - COMP - BRAKE, FRONT
    PISTON - COMP - BRAKE, FRONT
  • 43022
    43022-1010 STOPPER - BRAKE, PISTON
    STOPPER - BRAKE, PISTON
  • 43026
    43026-1074 CAP - BRAKE
    CAP - BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER - BRAKE, MASTER CYLINDER
    HOLDER - BRAKE, MASTER CYLINDER
  • 43095
    43095-0078 HOSE - BRAKE, FRONT
    HOSE - BRAKE, FRONT
  • 46092
    46092-1208 LEVER - GRIP, FRONT BRAKE
    LEVER - GRIP, FRONT BRAKE
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49006A
    49006-1338 BOOT
    BOOT
  • 49016
    49016-1044 COVER - SEAL, MASTER CYLINDER
    COVER - SEAL, MASTER CYLINDER
  • 49091
    49091-0001 WASHER - SEAL, 10.1X14.5X1.5
    WASHER - SEAL, 10.1X14.5X1.5
  • 92001
    92001-1728 BOLT, FRONT BRAKE LEVER
    BOLT, FRONT BRAKE LEVER
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1894 BOLT
    BOLT
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
