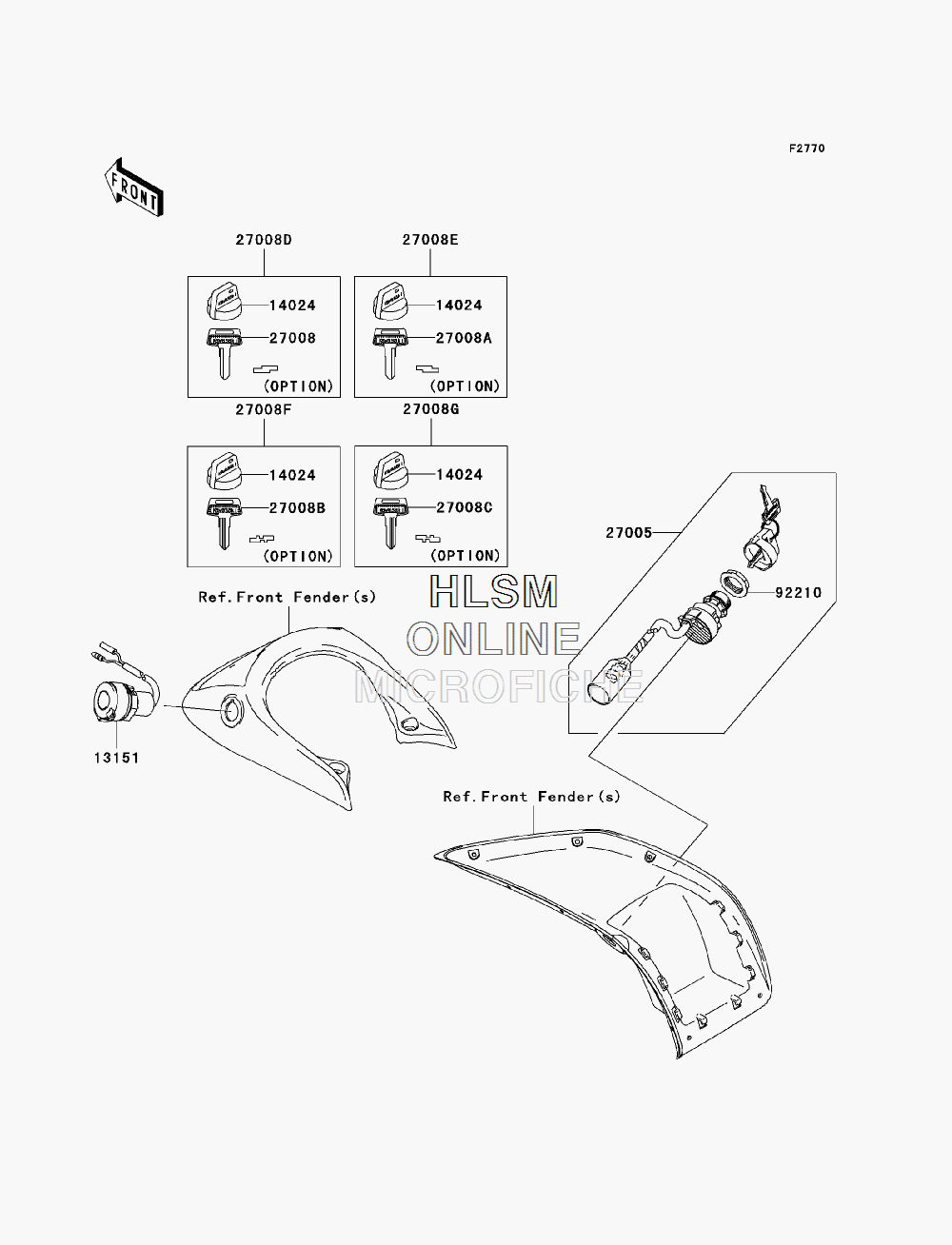

IGNITION SWITCH для Kawasaki BRUTE FORCE 750 4X4I HARDWOODS GREEN HD (KVF750E8F) - 2008 года выпуска
-
№АртикулНазвание
-
1315113151-0003 SWITCH-COMP,D.C.TERMINALSWITCH-COMP,D.C.TERMINAL
-
1402414024-1551 COVER,KEY (OPTION)COVER,KEY (OPTION)
-
2700527005-0019 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1041 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
27008A27008-1042 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
27008B27008-1043 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
27008C27008-1044 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
27008D27008-1132 KEY-LOCK,BLANK,W/COVER (OPTION)KEY-LOCK,BLANK,W/COVER (OPTION)
-
27008E27008-1133 KEY-LOCK,BLANK,W/COVER (OPTION)KEY-LOCK,BLANK,W/COVER (OPTION)
-
27008F27008-1134 KEY-LOCK,BLANK,W/COVER (OPTION)KEY-LOCK,BLANK,W/COVER (OPTION)
-
27008G27008-1135 KEY-LOCK,BLANK,W/COVER (OPTION)KEY-LOCK,BLANK,W/COVER (OPTION)
-
9221092210-1109 NUT,IGNITION SWITCHNUT,IGNITION SWITCH
