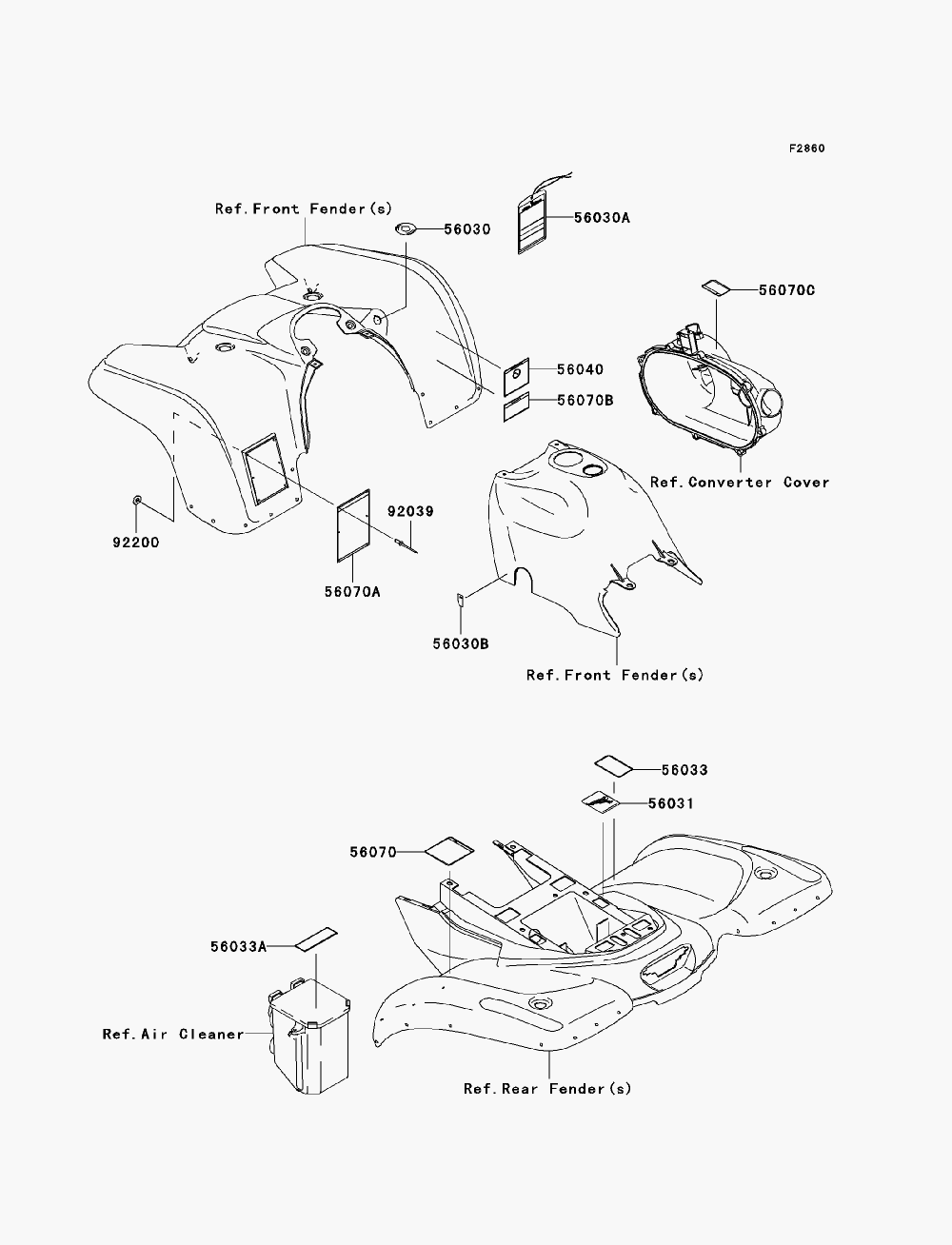

LABELS для Kawasaki PRAIRIE 360 (KVF360B7F) - 2007 года выпуска
-
№АртикулНазвание
-
5603056030-0014 LABEL,IGNITION SWITCHLABEL,IGNITION SWITCH
-
56030A56030-0047 LABEL,HANGTAGLABEL,HANGTAG
-
56030B56030-0129 LABEL,FUEL TAPLABEL,FUEL TAP
-
5603156031-1963 LABEL-MANUAL,BATTERY VENTLABEL-MANUAL,BATTERY VENT
-
5603356033-0001 LABEL-MANUAL,DRIVE BELT INFOLABEL-MANUAL,DRIVE BELT INFO
-
56033A56033-1263 LABEL-MANUALLABEL-MANUAL
-
5604056040-1276 LABEL-WARNING,UNDER 16LABEL-WARNING,UNDER 16
-
5607056070-0033 LABEL-WARNING,TIRE & LOADLABEL-WARNING,TIRE & LOAD
-
56070A56070-1151 LABEL-WARNING,SERIOUS INJURYLABEL-WARNING,SERIOUS INJURY
-
56070B56070-1170 LABEL-WARNING,SHIFT LEVERLABEL-WARNING,SHIFT LEVER
-
56070C56070-1269 LABEL-WARNING,CVT COVERLABEL-WARNING,CVT COVER
-
9203992039-3763 RIVET,3.2X8RIVET,3.2X8
-
9220092200-1251 WASHER,3.5X8X1WASHER,3.5X8X1
