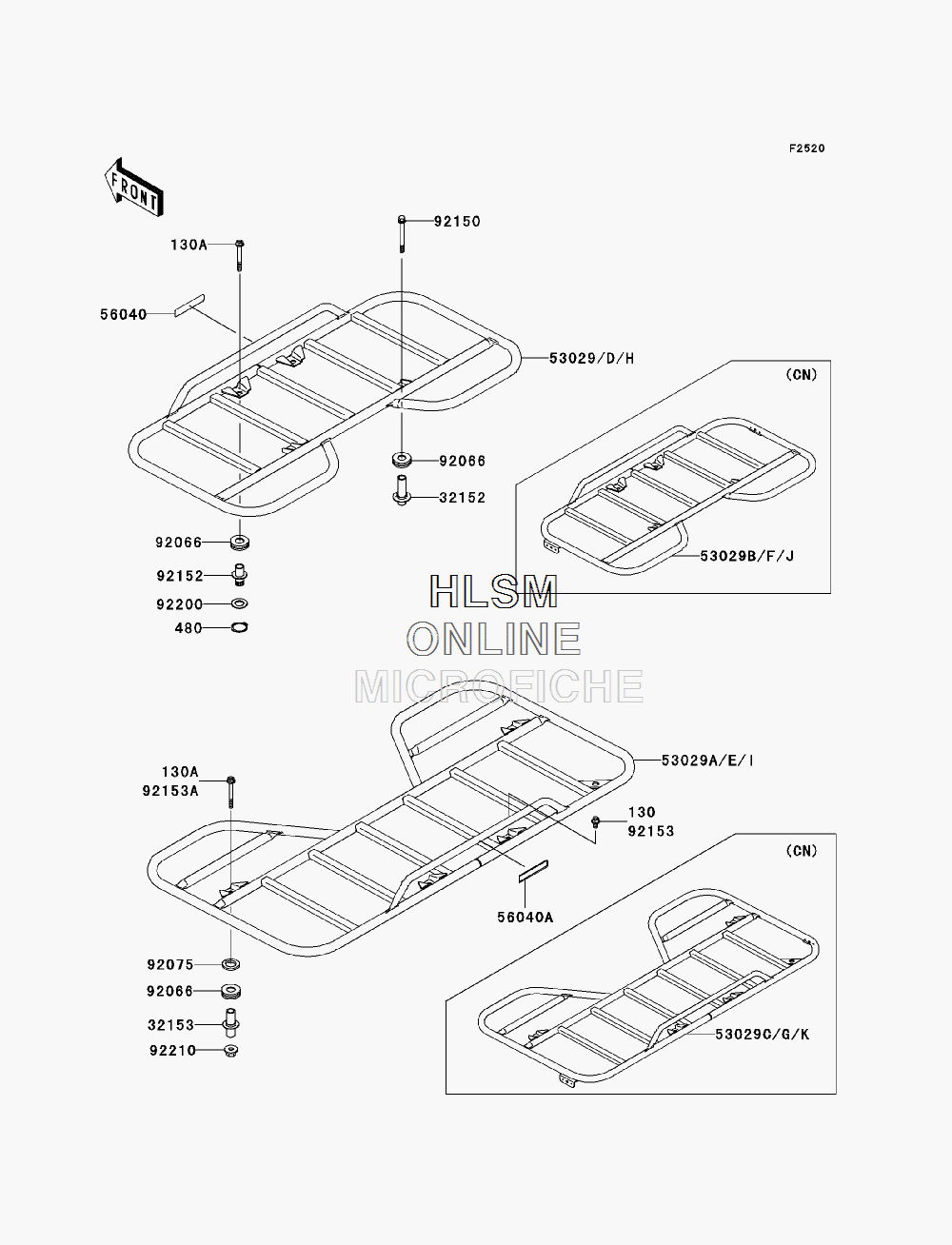

CARRIER(S) для Kawasaki PRAIRIE 360 4X4 (KVF360A7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 130A
    130CB0865 BOLT-FLANGED,8X65
    BOLT-FLANGED,8X65
  • 480
    480J1700 CIRCLIP-TYPE-C,17MM
    CIRCLIP-TYPE-C,17MM
  • 32152
    32152-1067 PIPE, FRONT CAREARIER
    PIPE, FRONT CAREARIER
  • 32153
    32153-7527 PIPE
    PIPE
  • 53029
    53029-0027-388 CAREARIER, FRONT,T.BLACK (USA ONLY)
    CAREARIER, FRONT,T.BLACK (USA ONLY)
  • 53029A
    53029-0028-388 CAREARIER, REAR,T.BLACK (USA ONLY)
    CAREARIER, REAR,T.BLACK (USA ONLY)
  • 53029B
    53029-0029-388 CAREARIER, FRONT,T.BLACK (CANADA ONLY)
    CAREARIER, FRONT,T.BLACK (CANADA ONLY)
  • 53029C
    53029-0030-388 CAREARIER, REAR,T.BLACK (CANADA ONLY)
    CAREARIER, REAR,T.BLACK (CANADA ONLY)
  • 56040
    56040-1321 LABEL-WARNING,MAXIMUM LOAD
    LABEL-WARNING,MAXIMUM LOAD
  • 56040A
    56040-1322 LABEL-WARNING,MAXIMUM LOAD
    LABEL-WARNING,MAXIMUM LOAD
  • 92066
    92066-1438 PLUG
    PLUG
  • 92075
    92075-1842 DAMPER
    DAMPER
  • 92150
    92150-1808 BOLT,FLANGED,8X80
    BOLT,FLANGED,8X80
  • 92152
    92152-7504 COLLAR,L=42.5
    COLLAR,L=42.5
  • 92153
    92153-0931 BOLT,FLANGED,8X14
    BOLT,FLANGED,8X14
  • 92153A
    92153-1372 BOLT,FLANGED,8X65
    BOLT,FLANGED,8X65
  • 92200
    92200-1043 WASHER,18.5X32X2.3
    WASHER,18.5X32X2.3
  • 92210
    92210-0005 NUT,FLANGED,LOCK,8MM
    NUT,FLANGED,LOCK,8MM
