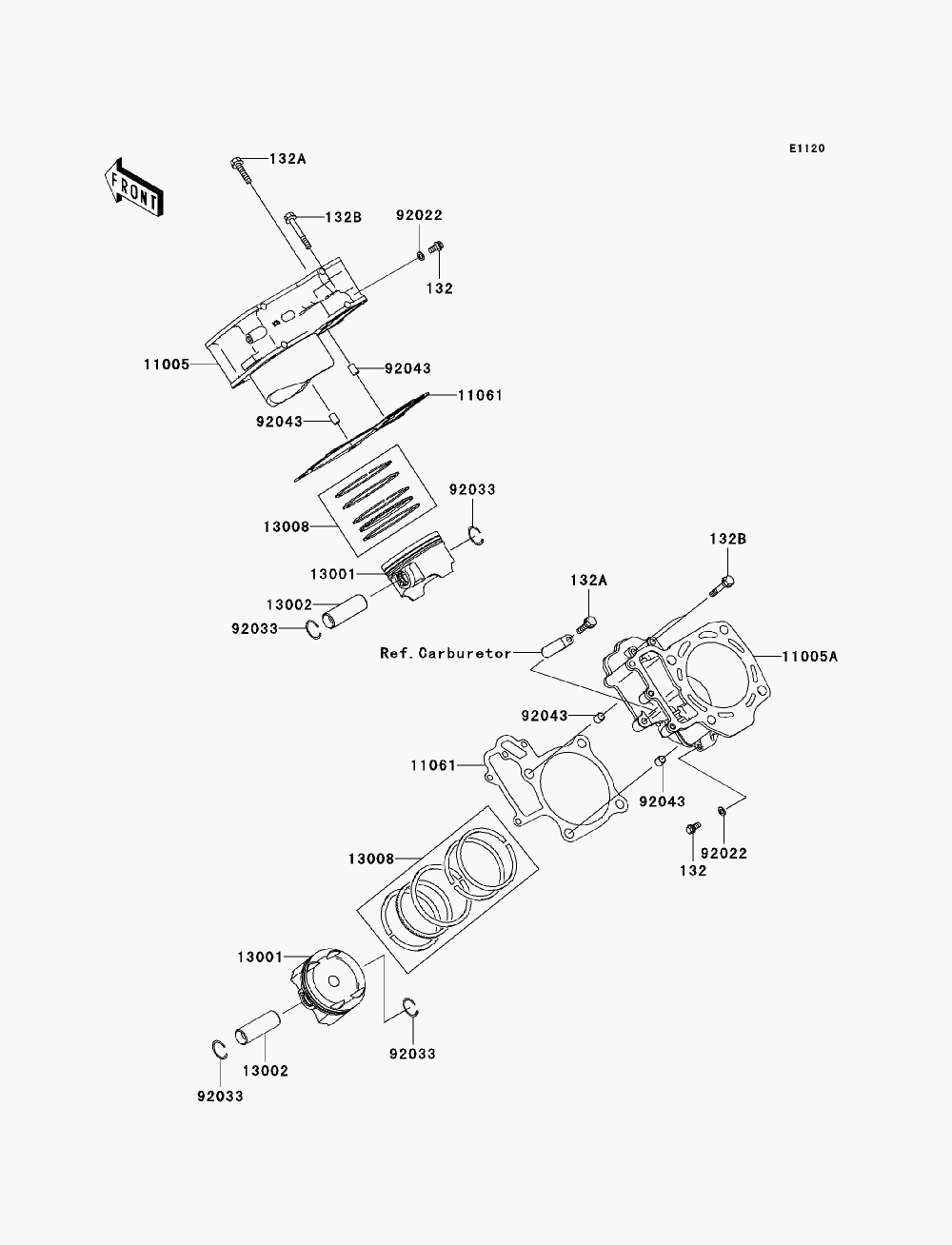

CYLINDER/PISTON(S) для Kawasaki BRUTE FORCE 750 4X4I (KVF750B7F) - 2007 года выпуска`
-
№АртикулНазвание
-
132132Y0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132Y0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132B132Y0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
1100511005-0022 CYLINDER-ENGINE, FRONTCYLINDER-ENGINE, FRONT
-
11005A11005-0023 CYLINDER-ENGINE, REARCYLINDER-ENGINE, REAR
-
1106111061-0063 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1300113001-0021 PISTON-ENGINEPISTON-ENGINE
-
1300213002-1060 PIN-PISTONPIN-PISTON
-
1300813008-0008 RING-SET-PISTONRING-SET-PISTON
-
9202292022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9203392033-1207 RING-SNAPRING-SNAP
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
