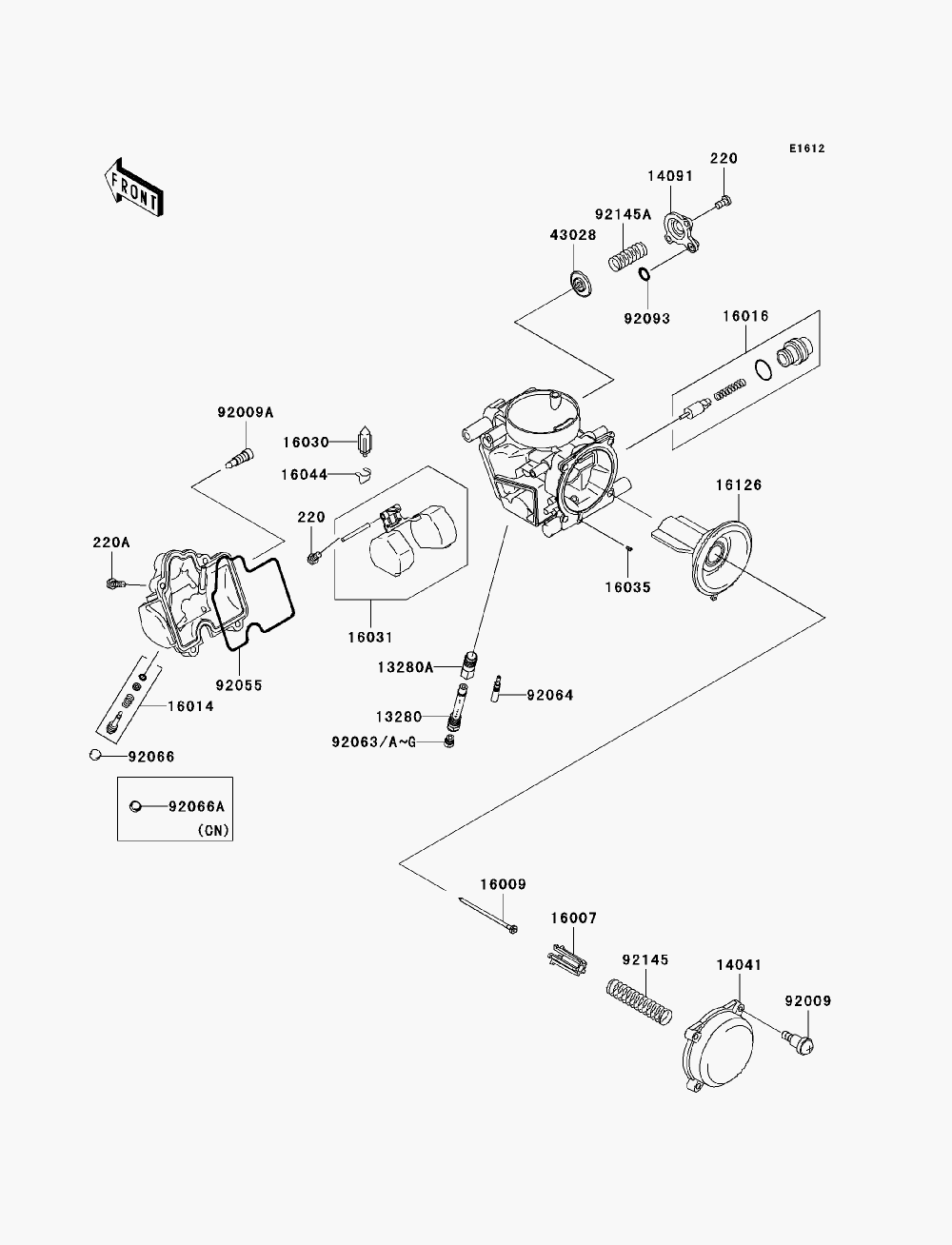

CARBURETOR PARTS для Kawasaki BRUTE FORCE 650 4X4I (KVF650H7F) - 2007 года выпуска`
-
№АртикулНазвание
-
1328013280-0185 HOLDERHOLDER
-
13280A13280-1096 HOLDER, JETHOLDER, JET
-
1404114041-1091 CAP-CHAMBER, MIXINGCAP-CHAMBER, MIXING
-
1409114091-1246 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1600716007-1117 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1600916009-1544 NEEDLE-JET, N60NNEEDLE-JET, N60N
-
1601416014-1101 SCREW-PILOT AIR (USA ONLY)SCREW-PILOT AIR (USA ONLY)
-
1601616016-1117 PLUNGERPLUNGER
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1097 FLOATFLOAT
-
1603516035-1055 JET-AIR, LEAKJET-AIR, LEAK
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-0015 VALVEVALVE
-
4302843028-1085 DIAPHRAGM, AIR CUT VALVEDIAPHRAGM, AIR CUT VALVE
-
9200992009-1549 SCREW, 4X4.4SCREW, 4X4.4
-
92009A92009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
9205592055-1589 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9206392063-1015 JET-MAIN, #138 (OPTION)JET-MAIN, #138 (OPTION)
-
92063A92063-1016 JET-MAIN, #142 (OPTION)JET-MAIN, #142 (OPTION)
-
92063B92063-1324 JET-MAIN, #148 (OPTION)JET-MAIN, #148 (OPTION)
-
92063C92063-1330 JET-MAIN, #150 (OPTION)JET-MAIN, #150 (OPTION)
-
92063D92063-1331 JET-MAIN, #152 (OPTION)JET-MAIN, #152 (OPTION)
-
92063E92063-1332 JET-MAIN, #155JET-MAIN, #155
-
92063F92063-1344 JET-MAIN, #158 (OPTION)JET-MAIN, #158 (OPTION)
-
92063G92063-1345 JET-MAIN, #160 (OPTION)JET-MAIN, #160 (OPTION)
-
9206492064-0011 JET-PILOT, #38JET-PILOT, #38
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2 (USA ONLY)PLUG, PILOT AIR SCREW, 6.9X2 (USA ONLY)
-
92066A92066-3769 PLUG, PILOT AIR SCREW (CANADA ONLY)PLUG, PILOT AIR SCREW (CANADA ONLY)
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214592145-0267 SPRINGSPRING
-
92145A92145-1450 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
220220D0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220D0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
