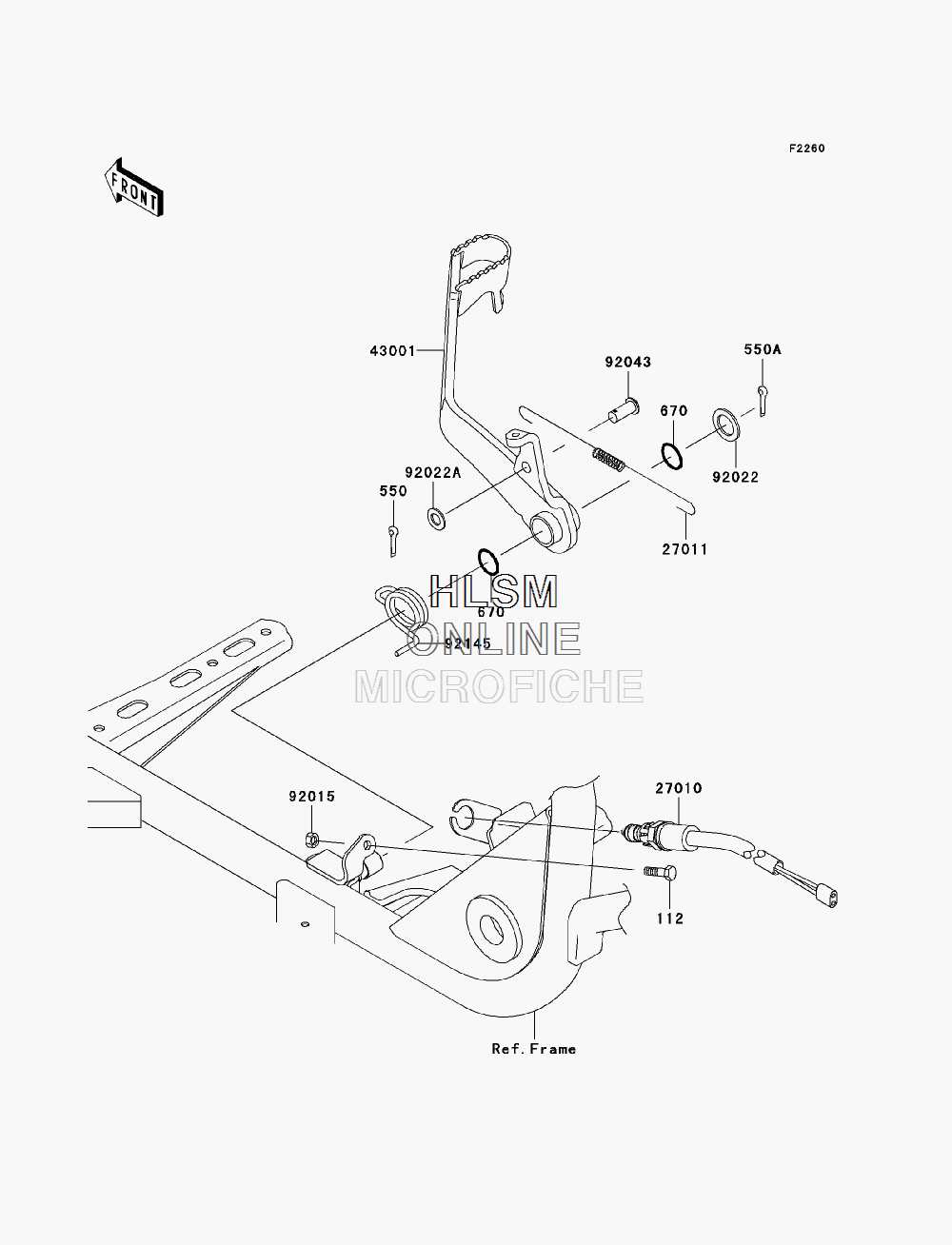

BRAKE PEDAL для Kawasaki Prairie 360 4x4 Hardwoods Green HD (KVF360C6F) - 2006 года выпуска
-
№АртикулНазвание
-
112112AA0622 BOLT-UPSET,6X22BOLT-UPSET,6X22
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
550A550AA2022 PIN-COTTER,2.0X22PIN-COTTER,2.0X22
-
670670B2015 O RING,15MMO RING,15MM
-
2701027010-1494 SWITCH,BRAKESWITCH,BRAKE
-
2701127011-015 SPRING,BRAKE LAMP SWITCHSPRING,BRAKE LAMP SWITCH
-
4300143001-7501 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
9201592015-1410 NUT,6MMNUT,6MM
-
9202292022-1049 WASHER,15.5X24X1.6WASHER,15.5X24X1.6
-
92022A92022-1582 WASHER,8.5X16X1.2WASHER,8.5X16X1.2
-
9204392043-1013 PIN,8X16PIN,8X16
-
9214592145-7503 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
