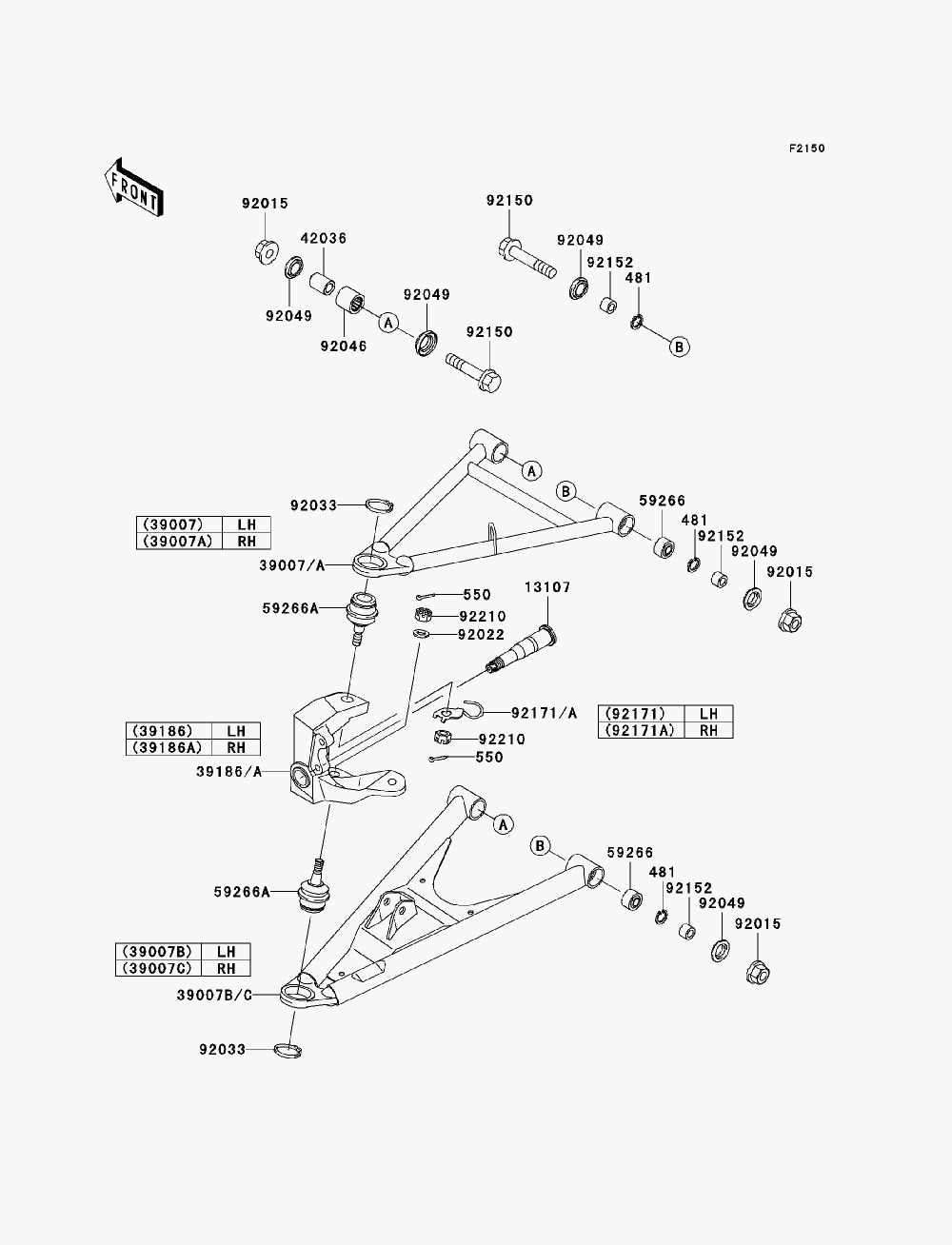

SUSPENSION для Kawasaki KFX700 (GREEN) (KS700A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 481
    481J2400 CIRCLIP
    CIRCLIP
  • 550
    550AA3025 PIN-COTTER,3.0X25
    PIN-COTTER,3.0X25
  • 13107
    13107-1507 SHAFT,KNUCKLE
    SHAFT,KNUCKLE
  • 39007
    39007-1307-HN ARM-SUSP, LEFT HAND,UPP,G.GRAY
    ARM-SUSP, LEFT HAND,UPP,G.GRAY
  • 39007A
    39007-1309-HN ARM-SUSP, RIGHT HAND,UPP,G.GRAY
    ARM-SUSP, RIGHT HAND,UPP,G.GRAY
  • 39007B
    39007-1311-HN ARM-SUSP, LEFT HAND,LWR,G.GRAY
    ARM-SUSP, LEFT HAND,LWR,G.GRAY
  • 39007C
    39007-1312-HN ARM-SUSP, RIGHT HAND,LWR,G.GRAY
    ARM-SUSP, RIGHT HAND,LWR,G.GRAY
  • 39186
    39186-0003 KNUCKLE, LEFT HAND
    KNUCKLE, LEFT HAND
  • 39186A
    39186-0004 KNUCKLE, RIGHT HAND
    KNUCKLE, RIGHT HAND
  • 42036
    42036-1376 SLEEVE
    SLEEVE
  • 59266
    59266-0013 JOINT-BALL
    JOINT-BALL
  • 59266A
    59266-0014 JOINT-BALL
    JOINT-BALL
  • 92015
    92015-1428 NUT,FLANGED,10MM
    NUT,FLANGED,10MM
  • 92022
    92022-1065 WASHER,12.3X22X1.6
    WASHER,12.3X22X1.6
  • 92033
    92033-1262 RING-SNAP,C-TYPE,32MM
    RING-SNAP,C-TYPE,32MM
  • 92046
    92046-1046 BEARING-NEEDLE
    BEARING-NEEDLE
  • 92049
    92049-1223 SEAL-OIL,MHA17245.7F
    SEAL-OIL,MHA17245.7F
  • 92150
    92150-1384 BOLT,FLANGED,10X63
    BOLT,FLANGED,10X63
  • 92152
    92152-1455 COLLAR,10X17X14.5
    COLLAR,10X17X14.5
  • 92171
    92171-0094 CLAMP,BRAKE HOSE, LEFT HAND
    CLAMP,BRAKE HOSE, LEFT HAND
  • 92171A
    92171-0095 CLAMP,BRAKE HOSE, RIGHT HAND
    CLAMP,BRAKE HOSE, RIGHT HAND
  • 92210
    92210-0395 NUT,CASTLE,12MM
    NUT,CASTLE,12MM
