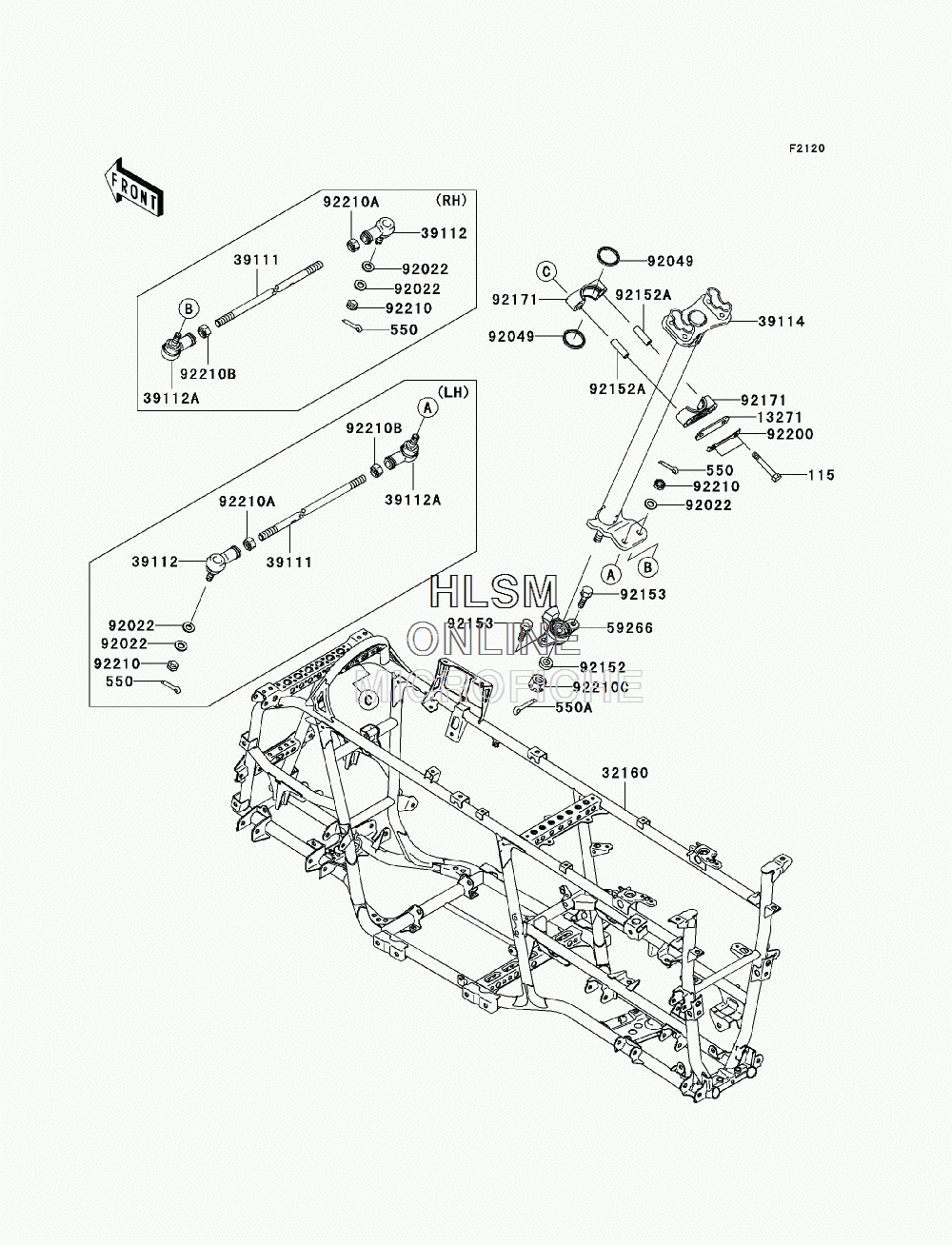

FRAME для Kawasaki Brute Force 650 4x4i Realtree Hardwoods Green HD (KVF650G6F) - 2006 года выпуска
-
№АртикулНазвание
-
115115CB0855 BOLT-SMALL-UPSET,8X55BOLT-SMALL-UPSET,8X55
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
550A550AA3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
1327113271-7506 PLATE,STEERING,CLAMPPLATE,STEERING,CLAMP
-
3216032160-0227 FRAME-COMPFRAME-COMP
-
3911139111-0023 ROD-TIEROD-TIE
-
3911239112-0009 RODEND-TIE, RIGHT HANDEDRODEND-TIE, RIGHT HANDED
-
39112A39112-0010 RODEND-TIE, LEFT HANDEDRODEND-TIE, LEFT HANDED
-
3911439114-0006 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
5926659266-1125 JOINT-BALLJOINT-BALL
-
9202292022-3742 WASHER,10.2X20X1.5WASHER,10.2X20X1.5
-
9204992049-7501 SEAL-OIL,SR31.8X37.5X3.8LRSEAL-OIL,SR31.8X37.5X3.8LR
-
9215292152-1351 COLLAR,12X21.3X7COLLAR,12X21.3X7
-
92152A92152-7501 COLLAR,9.1X13.95X42COLLAR,9.1X13.95X42
-
9215392153-1065 BOLT,8X30BOLT,8X30
-
9217192171-7501 CLAMP,STEERINGCLAMP,STEERING
-
9220092200-0384 WASHER,STEERING CLAMPWASHER,STEERING CLAMP
-
9221092210-1184 NUT,LOCK,10MMNUT,LOCK,10MM
-
92210A92210-1385 NUT, RIGHT HANDEDNUT, RIGHT HANDED
-
92210B92210-1386 NUT, LEFT HANDEDNUT, LEFT HANDED
-
92210C92210-7501 NUT,12MMNUT,12MM
