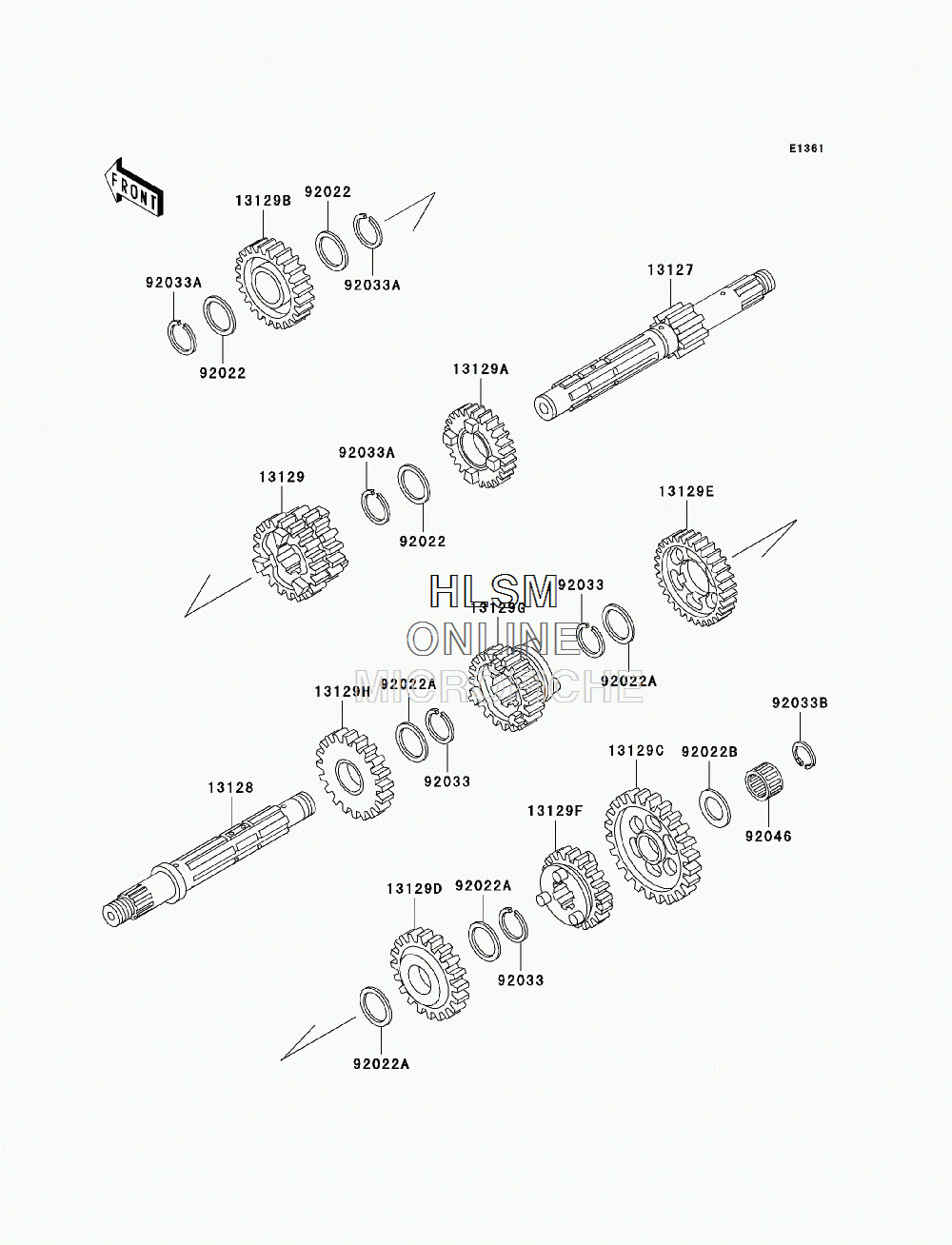

TRANSMISSION для Kawasaki BAYOU 250 (KLF250A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-1152 SHAFT-TRANSMISSION INPUT, 13T
    SHAFT-TRANSMISSION INPUT, 13T
  • 13128
    13128-1146 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13129
    13129-1860 GEAR, INPUT 2ND & 3RD, 23T & 19T
    GEAR, INPUT 2ND & 3RD, 23T & 19T
  • 13129A
    13129-1861 GEAR, INPUT 4TH, 26
    GEAR, INPUT 4TH, 26
  • 13129B
    13129-1862 GEAR, INPUT TOP, 28T
    GEAR, INPUT TOP, 28T
  • 13129C
    13129-1864 GEAR, OUTPUT LOW, 38T
    GEAR, OUTPUT LOW, 38T
  • 13129D
    13129-1865 GEAR, OUTPUT 2ND, 32T
    GEAR, OUTPUT 2ND, 32T
  • 13129E
    13129-1866 GEAR, OUTPUT 3RD, 27T
    GEAR, OUTPUT 3RD, 27T
  • 13129F
    13129-1867 GEAR, OUTPUT 4TH, 24T
    GEAR, OUTPUT 4TH, 24T
  • 13129G
    13129-1868 GEAR, OUTPUT TOP, 22T
    GEAR, OUTPUT TOP, 22T
  • 13129H
    13129-1869 GEAR, REVERSE, 33T
    GEAR, REVERSE, 33T
  • 92022
    92022-1885 WASHER, 20.3X28.0X0.5
    WASHER, 20.3X28.0X0.5
  • 92022A
    92022-198 WASHER, 22.3X27X0.5
    WASHER, 22.3X27X0.5
  • 92022B
    92022-279 WASHER, 15.3X25X1
    WASHER, 15.3X25X1
  • 92033
    92033-025 RING-SNAP, 20X25.5X1.2
    RING-SNAP, 20X25.5X1.2
  • 92033A
    92033-029 RING-SNAP, 18MM
    RING-SNAP, 18MM
  • 92033B
    92033-1234 RING-SNAP, 14X17.5X1.2
    RING-SNAP, 14X17.5X1.2
  • 92046
    92046-1173 BEARING-NEEDLE, K15X21X15
    BEARING-NEEDLE, K15X21X15
