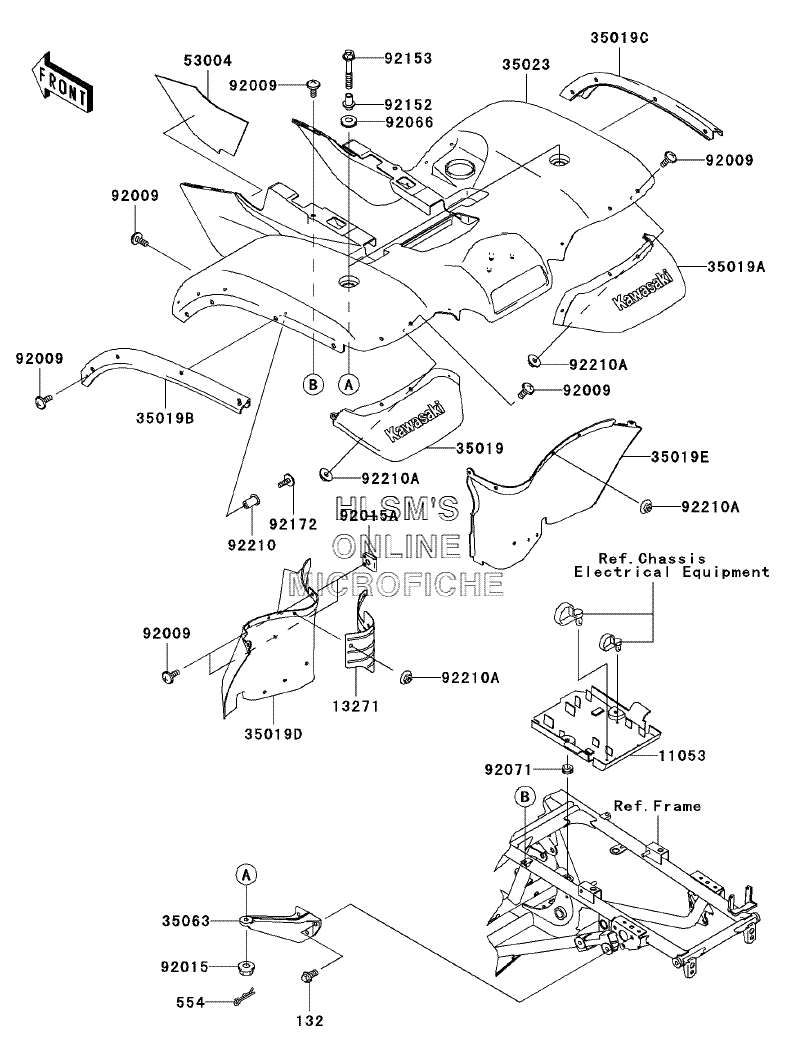

FENDER - REAR для Kawasaki Prairie 700 4x4 Team Green Special Edition (KVF700-D1) - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0818 BOLT-FLANGED-SMALL, 8X18
    BOLT-FLANGED-SMALL, 8X18
  • 554
    554A0800 PIN-SNAP, 8MM
    PIN-SNAP, 8MM
  • 11053
    11053-1308 BRACKET, ELECTRIC
    BRACKET, ELECTRIC
  • 13271
    13271-1718 PLATE, HEAT GUARD
    PLATE, HEAT GUARD
  • 35019
    35019-1371-6Z FLAP, REAR REAR (LEFT/F.BLACK)
    FLAP, REAR REAR (LEFT/F.BLACK)
  • 35019A
    35019-1372-6Z FLAP, REAR REAR (RIGHT/F.BLACK)
    FLAP, REAR REAR (RIGHT/F.BLACK)
  • 35019B
    35019-1373-6Z FLAP, REAR SIDE (LEFT/F.BLACK)
    FLAP, REAR SIDE (LEFT/F.BLACK)
  • 35019C
    35019-1374-6Z FLAP, REAR SIDE (RIGHT/F.BLACK)
    FLAP, REAR SIDE (RIGHT/F.BLACK)
  • 35019D
    35019-1393-6Z FLAP, REAR FRONT (LEFT/F.BLACK)
    FLAP, REAR FRONT (LEFT/F.BLACK)
  • 35019E
    35019-1394-6Z FLAP, REAR FRONT (RIGHT/F.BLACK)
    FLAP, REAR FRONT (RIGHT/F.BLACK)
  • 35023
    35023-1565-290 FENDER-REAR, L.GREEN
    FENDER-REAR, L.GREEN
  • 35063
    35063-1100 STAY, REAR FENDER
    STAY, REAR FENDER
  • 53004
    53004-1170 MAT, REAR FENDER
    MAT, REAR FENDER
  • 92009
    92009-1621 SCREW, 6X16
    SCREW, 6X16
  • 92015
    92015-1397 NUT, LOCK, FLANGED, 8MM
    NUT, LOCK, FLANGED, 8MM
  • 92015A
    92015-1678 NUT, CLAMP, 6MM
    NUT, CLAMP, 6MM
  • 92066
    92066-1438 PLUG
    PLUG
  • 92071
    92071-1131 GROMMET
    GROMMET
  • 92152
    92152-0098 COLLAR, L=38.5
    COLLAR, L=38.5
  • 92153
    92153-0326 BOLT, FLANGED, 8X68
    BOLT, FLANGED, 8X68
  • 92172
    92172-1063 SCREW, 5X18
    SCREW, 5X18
  • 92210
    92210-0012 NUT, POP, 5MM
    NUT, POP, 5MM
  • 92210A
    92210-1368 NUT, 6MM
    NUT, 6MM
