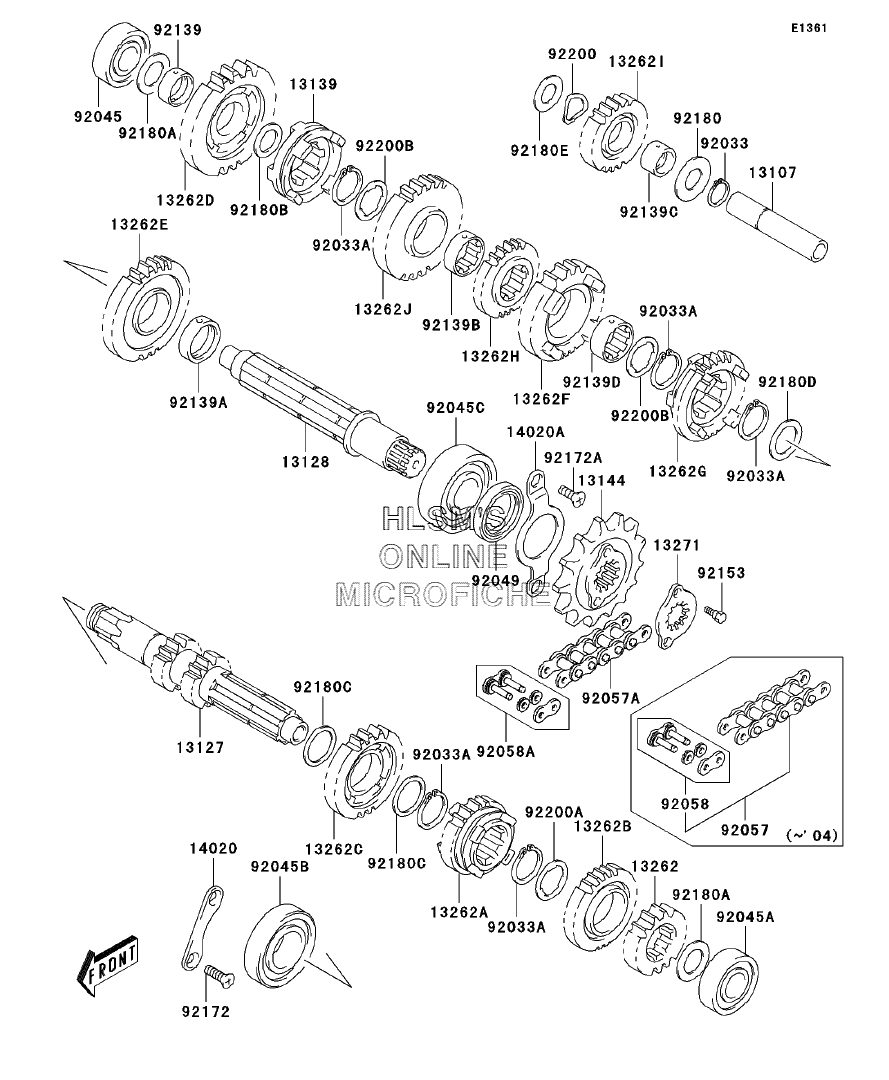

TRANSMISSION для Kawasaki KFX400 (KSF400-A3) - 2005 года выпуска

  • №
    Артикул
    Название
  • 13107
    13107-S005 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
  • 13127
    13127-S006 SHAFT-TRANSMISSION INPUT
    SHAFT-TRANSMISSION INPUT
  • 13128
    13128-S008 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13139
    13139-S002 SHIFTER, REVERSE
    SHIFTER, REVERSE
  • 13144
    13144-S006 SPROCKET-OUTPUT (14 TEETH)
    SPROCKET-OUTPUT (14 TEETH)
  • 13262
    13262-S011 GEAR, INPUT, 2ND (18 TEETH)
    GEAR, INPUT, 2ND (18 TEETH)
  • 13262A
    13262-S012 GEAR, INPUT, 3RD (21 TEETH)
    GEAR, INPUT, 3RD (21 TEETH)
  • 13262B
    13262-S013 GEAR, INPUT, 4TH (23 TEETH)
    GEAR, INPUT, 4TH (23 TEETH)
  • 13262C
    13262-S014 GEAR, INPUT, 5TH (26 TEETH)
    GEAR, INPUT, 5TH (26 TEETH)
  • 13262D
    13262-S015 GEAR, OUTPUT, LOW (33 TEETH)
    GEAR, OUTPUT, LOW (33 TEETH)
  • 13262E
    13262-S016 GEAR, OUTPUT, 2ND (30 TEETH)
    GEAR, OUTPUT, 2ND (30 TEETH)
  • 13262F
    13262-S017 GEAR, OUTPUT, 3RD (26 TEETH)
    GEAR, OUTPUT, 3RD (26 TEETH)
  • 13262G
    13262-S018 GEAR, OUTPUT, 4TH (23 TEETH)
    GEAR, OUTPUT, 4TH (23 TEETH)
  • 13262H
    13262-S019 GEAR, OUTPUT, 5TH (22 TEETH)
    GEAR, OUTPUT, 5TH (22 TEETH)
  • 13262I
    13262-S020 GEAR, REVERSE (24 TEETH)
    GEAR, REVERSE (24 TEETH)
  • 13262J
    13262-S033 GEAR, REVERSE (28 TEETH)
    GEAR, REVERSE (28 TEETH)
  • 13271
    13271-S047 PLATE
    PLATE
  • 14020
    14020-S007 RETAINER
    RETAINER
  • 14020A
    14020-S010 RETAINER
    RETAINER
  • 92033
    92033-S034 RING-SNAP
    RING-SNAP
  • 92033A
    92033-S039 RING-SNAP
    RING-SNAP
  • 92045
    92045-S035 BEARING-BALL, 17X40X12
    BEARING-BALL, 17X40X12
  • 92045A
    92045-S051 BEARING-BALL
    BEARING-BALL
  • 92045B
    92045-S052 BEARING-BALL
    BEARING-BALL
  • 92045C
    92045-S053 BEARING-BALL
    BEARING-BALL
  • 92049
    92049-S051 SEAL-OIL, DRIVE SHAFT
    SEAL-OIL, DRIVE SHAFT
  • 92057A
    92057-S018 CHAIN, DRIVE (RK520SM0Z10S)
    CHAIN, DRIVE (RK520SM0Z10S)
  • 92058A
    92058-S006 JOINT-CHAIN
    JOINT-CHAIN
  • 92139
    92139-S022 BUSHING
    BUSHING
  • 92139A
    92139-S023 BUSHING, 2ND GEAR
    BUSHING, 2ND GEAR
  • 92139B
    92139-S025 BUSHING
    BUSHING
  • 92139C
    92139-S026 BUSHING, REVERSE IDLE GEAR
    BUSHING, REVERSE IDLE GEAR
  • 92139D
    92139-S027 BUSHING, 3RD GEAR
    BUSHING, 3RD GEAR
  • 92153
    92153-S284 BOLT, ENGINE SPROCKET
    BOLT, ENGINE SPROCKET
  • 92172
    92172-S112 SCREW
    SCREW
  • 92172A
    92172-S171 SCREW, RETAINER
    SCREW, RETAINER
  • 92180
    92180-S013 SHIM, REVERSE IDLE GEAR
    SHIM, REVERSE IDLE GEAR
  • 92180A
    92180-S014 SHIM, 17X30X1.0
    SHIM, 17X30X1.0
  • 92180B
    92180-S015 SHIM, 20X30X1.0
    SHIM, 20X30X1.0
  • 92180C
    92180-S016 SHIM, 5TH GEAR
    SHIM, 5TH GEAR
  • 92180D
    92180-S017 SHIM, 2ND GEAR
    SHIM, 2ND GEAR
  • 92180E
    92180-S046 SHIM, REVERSE IDLE GEAR
    SHIM, REVERSE IDLE GEAR
  • 92200
    92200-S142 WASHER, REVERSE GEAR
    WASHER, REVERSE GEAR
  • 92200A
    92200-S145 WASHER
    WASHER
  • 92200B
    92200-S146 WASHER, 3RD GEAR
    WASHER, 3RD GEAR
