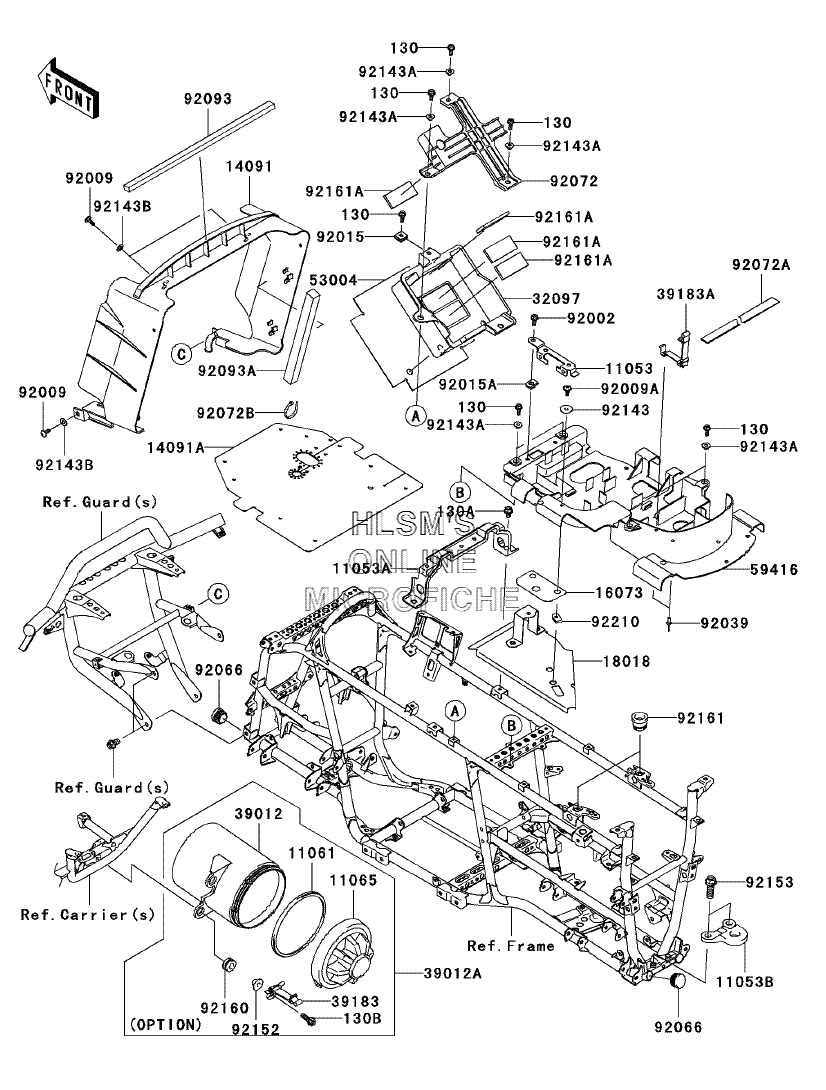

FRAME FITTINGS для Kawasaki Brute Force 750 4x4i Realtree Hardwoods Green HD (KVF750-B1) - 2005 года выпуска`
-
№АртикулНазвание
-
1105311053-0937 BRACKET, FUSE ASSYBRACKET, FUSE ASSY
-
11053A11053-0969 BRACKET, SEAT AND BATTERY BANDBRACKET, SEAT AND BATTERY BAND
-
11053B11053-1638 BRACKET, TRAILER HITCHBRACKET, TRAILER HITCH
-
1106111061-0072 GASKET, TOOL CASE (OPT)GASKET, TOOL CASE (OPT)
-
1106511065-0088 CAP, TOOL CASE (OPT)CAP, TOOL CASE (OPT)
-
1409114091-0338 COVER, RADIATORCOVER, RADIATOR
-
14091A14091-0339 COVER, AIR CLEANERCOVER, AIR CLEANER
-
1607316073-0018 INSULATOR, ELECTRIC CASEINSULATOR, ELECTRIC CASE
-
1801818018-0003 PLATE-HEAT GUARDPLATE-HEAT GUARD
-
3209732097-0009 CASE-BATTERYCASE-BATTERY
-
3901239012-0005 CASE-STORAGE (OPT)CASE-STORAGE (OPT)
-
39012A39012-5013 CASE-STORAGE (OPT)CASE-STORAGE (OPT)
-
3918339183-0003 BAND-ASSY, TOOL BAG (OPT)BAND-ASSY, TOOL BAG (OPT)
-
39183A39183-1065 BAND-ASSY, TOOL BAGBAND-ASSY, TOOL BAG
-
5300453004-0002 MAT, BATTERY CASEMAT, BATTERY CASE
-
5941659416-0004 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1571 BOLT, 6X16BOLT, 6X16
-
9200992009-1166 SCREWSCREW
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1602 NUT, 6MMNUT, 6MM
-
9203992039-3719 RIVET, 4.8MMRIVET, 4.8MM
-
9206692066-0036 PLUGPLUG
-
9207292072-0033 BAND, BATTERYBAND, BATTERY
-
92072A92072-0040 BAND, MAGIC TAPEBAND, MAGIC TAPE
-
92072B92072-1239 BAND, L=188BAND, L=188
-
9209392093-0024 SEAL, L=408SEAL, L=408
-
92093A92093-0028 SEAL, L=250SEAL, L=250
-
9214392143-1025 COLLAR, L=6.5COLLAR, L=6.5
-
92143A92143-1057 COLLARCOLLAR
-
92143B92143-1087 COLLARCOLLAR
-
9215292152-0155 COLLAR (OPT)COLLAR (OPT)
-
9215392153-0847 BOLT, FLANGED, 12X35BOLT, FLANGED, 12X35
-
9216092160-1151 DAMPER (OPT)DAMPER (OPT)
-
130130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130A130J0812 BOLT-FLANGEDBOLT-FLANGED
-
130B130J0825 BOLT-FLANGED, 8X25 (BLACK) (OPT)BOLT-FLANGED, 8X25 (BLACK) (OPT)
-
9216192161-0048 DAMPERDAMPER
-
92161A92161-1127 DAMPER, BATTERYDAMPER, BATTERY
-
9221092210-1331 NUTNUT
