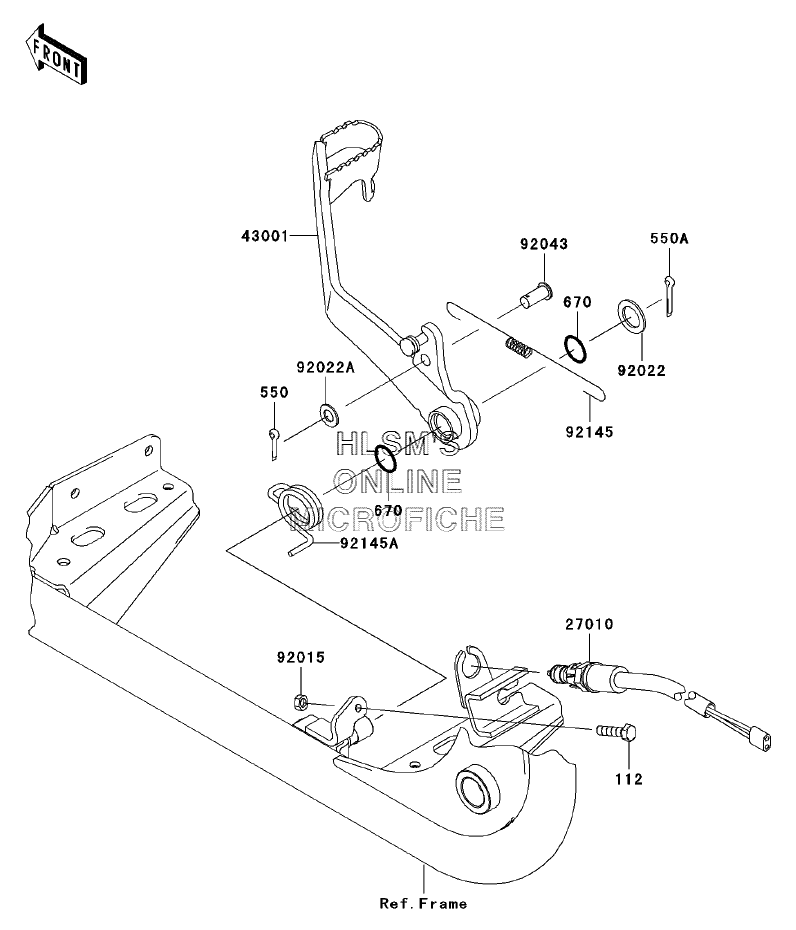

BRAKE PEDAL для Kawasaki Brute Force 650 4x4 Realtree Hardwoods Green HD (KVF650-E1) - 2005 года выпуска`
-
№АртикулНазвание
-
112112D0622 BOLT-UPSET, 6X22BOLT-UPSET, 6X22
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
670670B2015 O RING, 15MMO RING, 15MM
-
2701027010-1494 SWITCH, BRAKESWITCH, BRAKE
-
4300143001-0036 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
9202292022-1049 WASHER, 15.5X24X1.6WASHER, 15.5X24X1.6
-
92022A92022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9214592145-0056 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
92145A92145-1421 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
