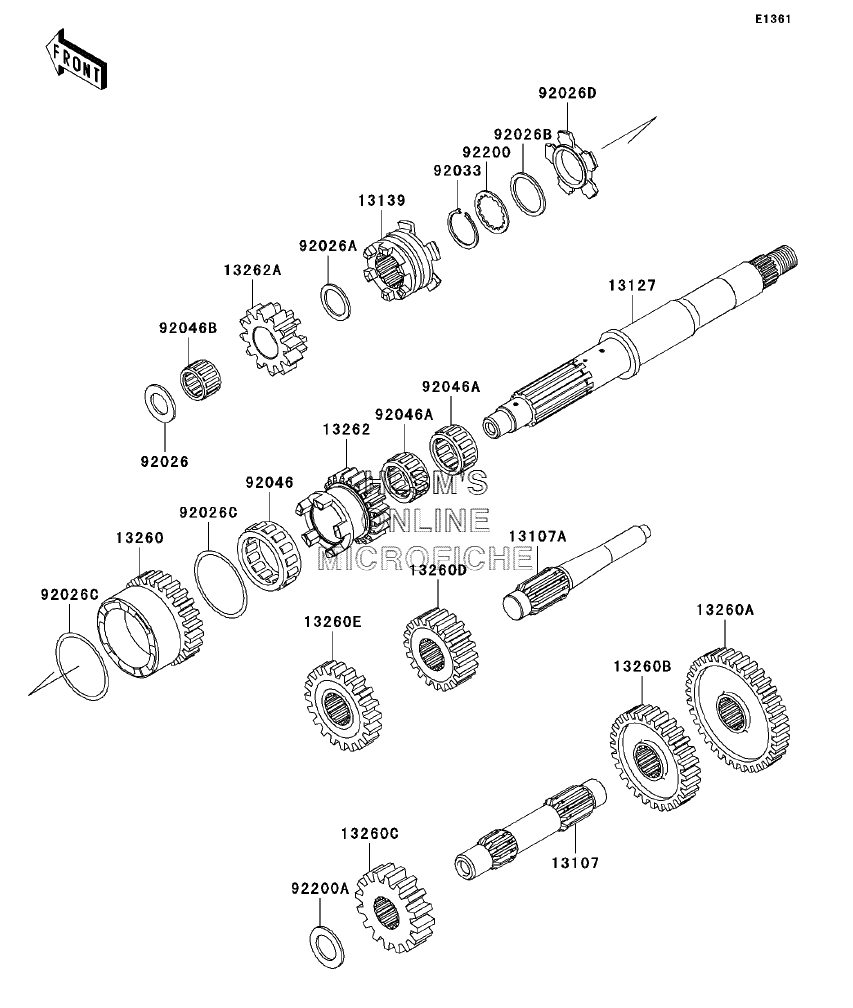

TRANSMISSION для Kawasaki Brute Force 650 4x4 (KVF650-D1) - 2005 года выпуска

  • №
    Артикул
    Название
  • 13107
    13107-0030 SHAFT, COUNTER
    SHAFT, COUNTER
  • 13107A
    13107-1437 SHAFT, REVERSE, IDLE
    SHAFT, REVERSE, IDLE
  • 13127
    13127-1282 SHAFT-TRANSMISSION INPUT
    SHAFT-TRANSMISSION INPUT
  • 13139
    13139-0003 SHIFTER
    SHIFTER
  • 13260
    13260-1867 GEAR, INPUT HIGH (26 TEETH)
    GEAR, INPUT HIGH (26 TEETH)
  • 13260A
    13260-1869 GEAR, DRIVEN LOW (36 TEETH)
    GEAR, DRIVEN LOW (36 TEETH)
  • 13260B
    13260-1870 GEAR, DRIVEN HIGH (30 TEETH)
    GEAR, DRIVEN HIGH (30 TEETH)
  • 13260C
    13260-1871 GEAR, OUTPUT DRIVE (18 TEETH)
    GEAR, OUTPUT DRIVE (18 TEETH)
  • 13260D
    13260-1872 GEAR, OUTPUT REVERSE (16 TEETH)
    GEAR, OUTPUT REVERSE (16 TEETH)
  • 13260E
    13260-1873 GEAR, DRIVEN REVERSE (16TEETH)
    GEAR, DRIVEN REVERSE (16TEETH)
  • 13262
    13262-0234 GEAR, INPUT LOW (20 TEETH)
    GEAR, INPUT LOW (20 TEETH)
  • 13262A
    13262-0235 GEAR, INPUT REVERSE (12 TEETH)
    GEAR, INPUT REVERSE (12 TEETH)
  • 92026
    92026-1415 SPACER, 17.3X30X2.0
    SPACER, 17.3X30X2.0
  • 92026A
    92026-1568 SPACER, 21.2X29X1.6
    SPACER, 21.2X29X1.6
  • 92026B
    92026-1587 SPACER, 28.2X34.5X1.6
    SPACER, 28.2X34.5X1.6
  • 92026C
    92026-1599 SPACER, 48.2X54.3X1.0
    SPACER, 48.2X54.3X1.0
  • 92026D
    92026-1600 SPACER, HI & LOW
    SPACER, HI & LOW
  • 92033
    92033-1037 RING-SNAP, 25.9X30.6X1.2
    RING-SNAP, 25.9X30.6X1.2
  • 92046
    92046-1276 BEARING-NEEDLE, HIGH GEAR
    BEARING-NEEDLE, HIGH GEAR
  • 92046A
    92046-1278 BEARING-NEEDLE, FWF-283317
    BEARING-NEEDLE, FWF-283317
  • 92046B
    92046-1279 BEARING-NEEDLE, REVERSE GEAR
    BEARING-NEEDLE, REVERSE GEAR
  • 92200
    92200-1240 WASHER, 28.5X34.0X1.5
    WASHER, 28.5X34.0X1.5
  • 92200A
    92200-1351 WASHER, 20.3X33X2.0
    WASHER, 20.3X33X2.0
