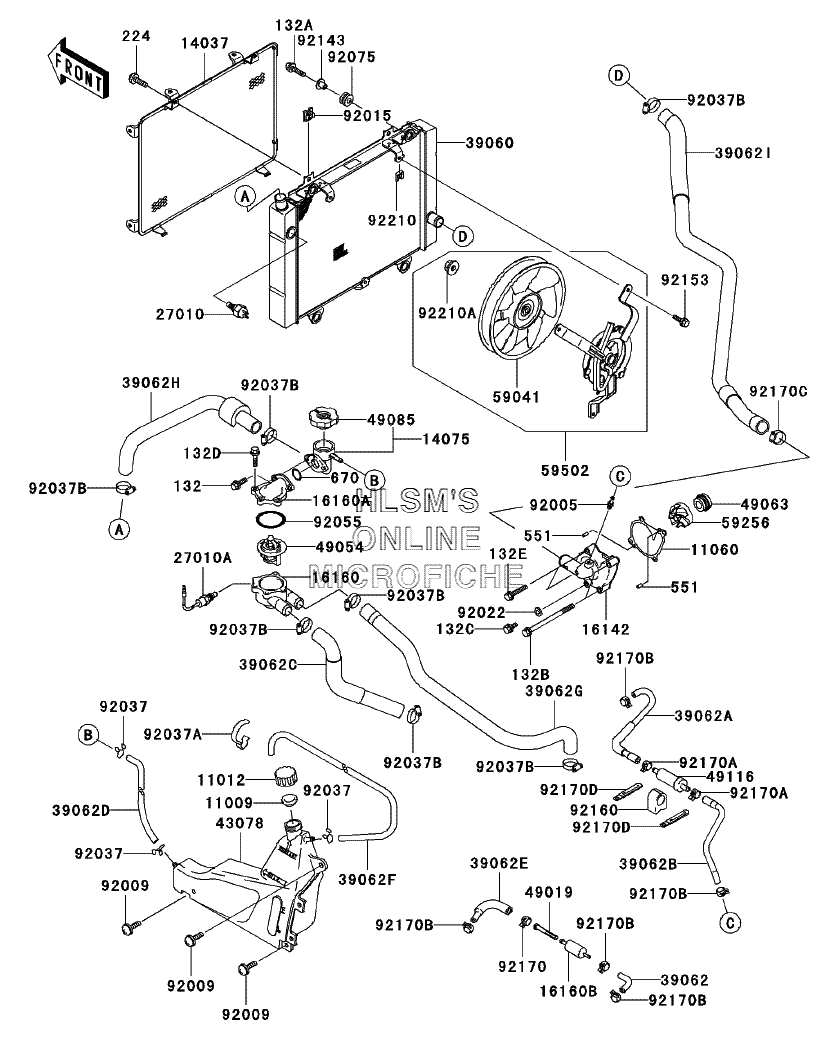

RADIATOR (UP TO JKAVF6B1 4B504673) для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET,RESERVOIR TANK CAPGASKET,RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1106011060-1964 GASKET,WATER PUMPGASKET,WATER PUMP
-
1403714037-1283 SCREEN,RADIATORSCREEN,RADIATOR
-
1407514075-1105 CAP-ASSY,PRESSURECAP-ASSY,PRESSURE
-
1614216142-0002 COVER-PUMP,WATERCOVER-PUMP,WATER
-
1616016160-1112 BODY,THERMOSTAT,LWRBODY,THERMOSTAT,LWR
-
16160A16160-1113 BODY,THERMOSTAT,UPPBODY,THERMOSTAT,UPP
-
16160B16160-1359 BODYBODY
-
2701027010-1202 SWITCH,FANSWITCH,FAN
-
27010A27010-1346 SWITCH,SENSOR WATERSWITCH,SENSOR WATER
-
3906039060-0008 RADIATORRADIATOR
-
3906239062-1816 HOSE-COOLING,HEAD-FILTERHOSE-COOLING,HEAD-FILTER
-
39062A39062-1817 HOSE-COOLING,CARB-VALVEHOSE-COOLING,CARB-VALVE
-
39062B39062-1818 HOSE-COOLING,VALVE-WATER PUMPHOSE-COOLING,VALVE-WATER PUMP
-
39062C39062-1820 HOSE-COOLING,HEAD,FR-THERMOHOSE-COOLING,HEAD,FR-THERMO
-
39062D39062-1823 HOSE-COOLING,THERMO-RESERVHOSE-COOLING,THERMO-RESERV
-
39062E39062-1858 HOSE-COOLING,FILTER-CARBHOSE-COOLING,FILTER-CARB
-
39062F39062-1872 HOSE-COOLING,5.5X10.5X1030HOSE-COOLING,5.5X10.5X1030
-
39062G39062-1874 HOSE-COOLING,HEAD,RR-THERMOHOSE-COOLING,HEAD,RR-THERMO
-
39062H39062-1875 HOSE-COOLING,THERMO-RADIATORHOSE-COOLING,THERMO-RADIATOR
-
39062I39062-1893 HOSE-COOLING,RADIATOR-PUMPHOSE-COOLING,RADIATOR-PUMP
-
4307843078-1171 RESERVOIRRESERVOIR
-
4901949019-1068 FILTER-WATERFILTER-WATER
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL,WATERSEAL-MECHANICAL,WATER
-
4908549085-1067 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
4911649116-1190 VALVE-ASSYVALVE-ASSY
-
5904159041-1062 FANFAN
-
5925659256-1069 IMPELLERIMPELLER
-
5950259502-1140 FAN-ASSYFAN-ASSY
-
9200592005-1337 FITTINGFITTING
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1487 NUTNUT
-
9202292022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1552 CLAMP,HOSECLAMP,HOSE
-
92037B92037-1589 CLAMP,COOLING HOSECLAMP,COOLING HOSE
-
9205592055-1279 RING-O,44.7X2.4RING-O,44.7X2.4
-
132132H0616 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132H0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
132B132J0690 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132C132Y0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132D132Y0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132E132Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
224224C0612 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
-
551551A0408 PIN-DOWEL,4X8PIN-DOWEL,4X8
-
670670B2020 O RING,20MMO RING,20MM
-
9207592075-209 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9215392153-1060 BOLTBOLT
-
9216092160-1451 DAMPER,VALVEDAMPER,VALVE
-
9217092170-1491 CLAMPCLAMP
-
92170A92170-1492 CLAMPCLAMP
-
92170B92170-1493 CLAMPCLAMP
-
92170C92170-1497 CLAMPCLAMP
-
92170D92170-1514 CLAMPCLAMP
-
9221092210-1323 NUTNUT
-
92210A92210-1396 NUTNUT
