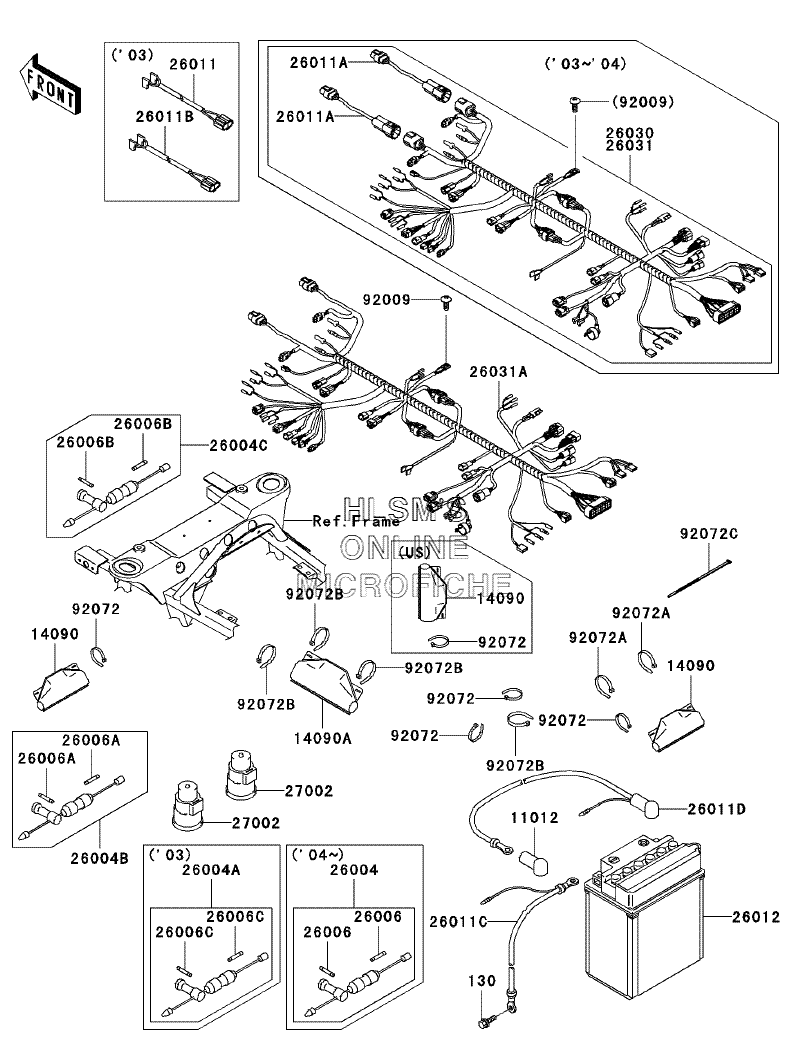

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Prairie 360 (KVF360-B2) - 2004 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 11012
    11012-1354 CAP, TERMINAL
    CAP, TERMINAL
  • 14090
    14090-1331 COVER, COUPLER (CANADA ONLY)
    COVER, COUPLER (CANADA ONLY)
  • 14090
    14090-1331 COVER, COUPLER (USA ONLY)
    COVER, COUPLER (USA ONLY)
  • 14090A
    14090-1611 COVER, COUPLER
    COVER, COUPLER
  • 26004
    26004-0005 FUSE-ASSY
    FUSE-ASSY
  • 26004B
    26004-1127 FUSE-ASSY
    FUSE-ASSY
  • 26004C
    26004-7501 FUSE-ASSY
    FUSE-ASSY
  • 26006
    26006-0003 FUSE, 10A, L=30
    FUSE, 10A, L=30
  • 26006A
    26006-1059 FUSE, 30A, L=30
    FUSE, 30A, L=30
  • 26006B
    26006-1064 FUSE, 20A, L=32
    FUSE, 20A, L=32
  • 26011A
    26011-1834 WIRE-LEAD, HEAD LAMP
    WIRE-LEAD, HEAD LAMP
  • 26011C
    26011-7503 WIRE-LEAD, BATTERY (-)
    WIRE-LEAD, BATTERY (-)
  • 26011D
    26011-7507 WIRE-LEAD, BATTERY (+)
    WIRE-LEAD, BATTERY (+)
  • 26012
    26012-0006 BATTERY, YB14A-A2, 12V 14AH
    BATTERY, YB14A-A2, 12V 14AH
  • 26031
    26031-0050 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1095 RELAY-ASSY
    RELAY-ASSY
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92072
    92072-030 BAND, L=123 (CANADA ONLY)
    BAND, L=123 (CANADA ONLY)
  • 92072
    92072-030 BAND, L=123 (USA ONLY)
    BAND, L=123 (USA ONLY)
  • 92072A
    92072-031 BAND, L=149
    BAND, L=149
  • 92072B
    92072-056 BAND, L=186
    BAND, L=186
  • 92072C
    92072-1239 BAND, L=188
    BAND, L=188
